64

Intel

®

Server System SR9000MK4U Product Guide

3. Push the PCI card lock firmly to unlock the PCI card. See the figure below.

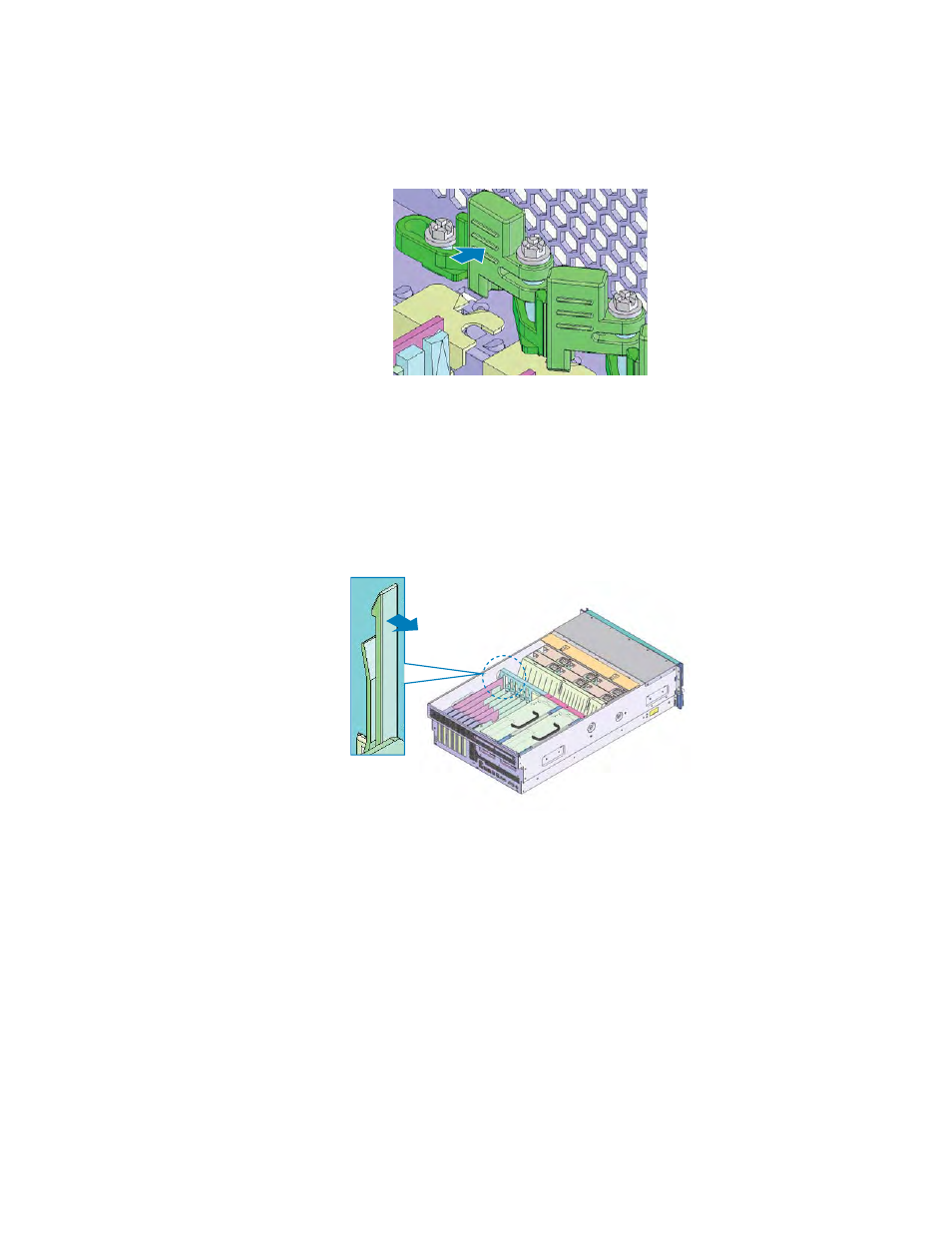

Figure 58. Unlocking a PCI Card Lock

4. Remove the PCI card and place it on a clean, static-free surface.

—

For a short-length card, pull the PCI card from the slot.

—

For a full-length card: Pull back on the PCI tail lock to release the PCI card. See
the figure below. While holding the PCI tail lock back, pull out the PCI card.

Figure 59. Releasing the PCI Card from the Tail Lock

AF001139

AF001143
