9. Install the bolster plate onto the LGA terminal. See the figure below.

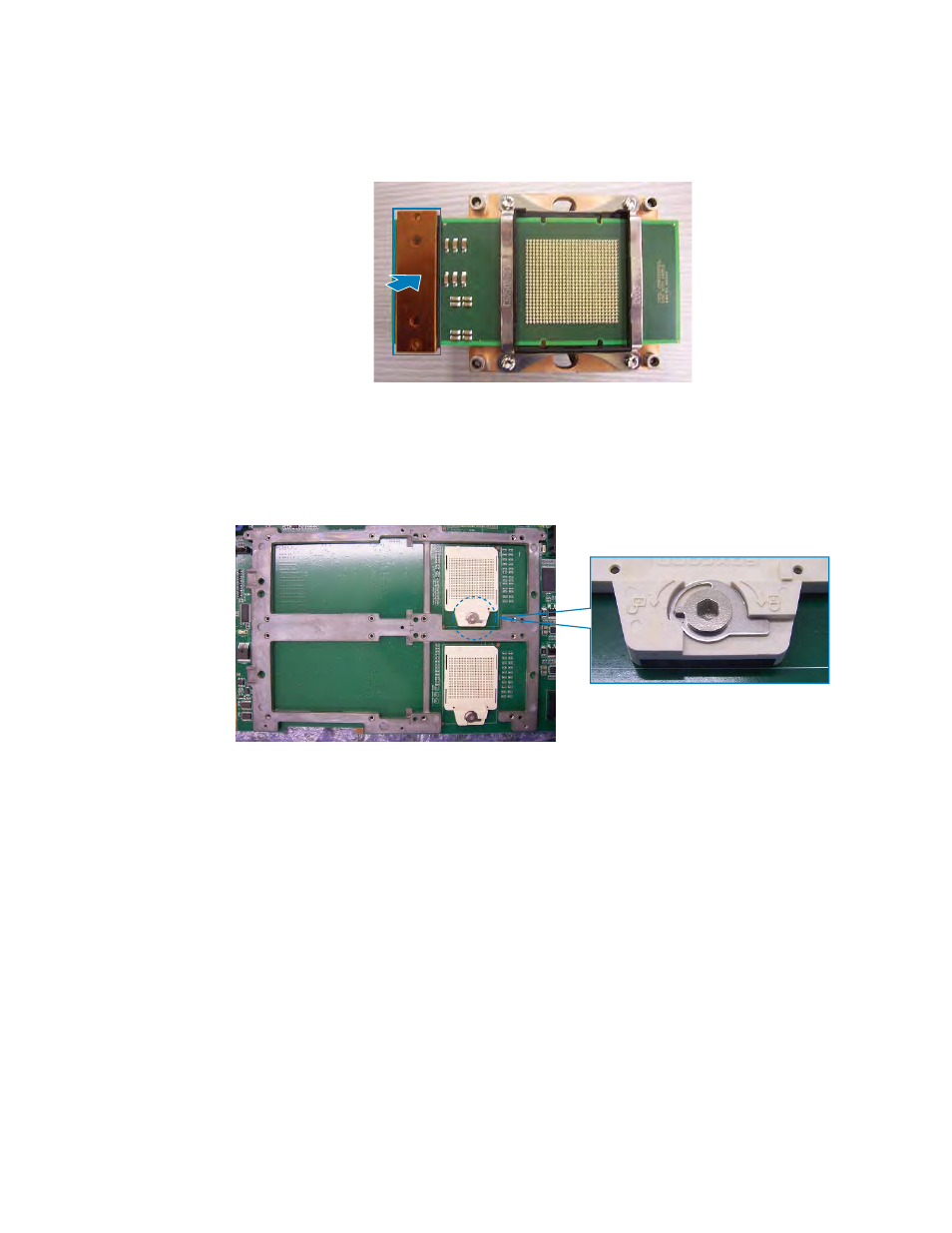

Figure 114. Installing the Bolster Plate onto the Processor
10. Make sure the processor lock on the main board is in the unlocked position. See the
figure below.
Figure 115. Making Sure the Processor Socket is Unlocked
AF001266
AF001267
