Installing a Memory Box
To perform this procedure, you will first need to remove the front bezel. The steps below
will direct you to the instructions on removing the front bezel at the appropriate location
in the step sequence.
Caution: Before performing the procedures in this chapter, except for when hot-swapping, turn off
the system and disconnect all power plugs.
1. Remove the front bezel. For instructions, see
2. If a filler panel is installed, pull up on the memory box filler panel release lever to
unlock it. See letter “A” in the figure below.

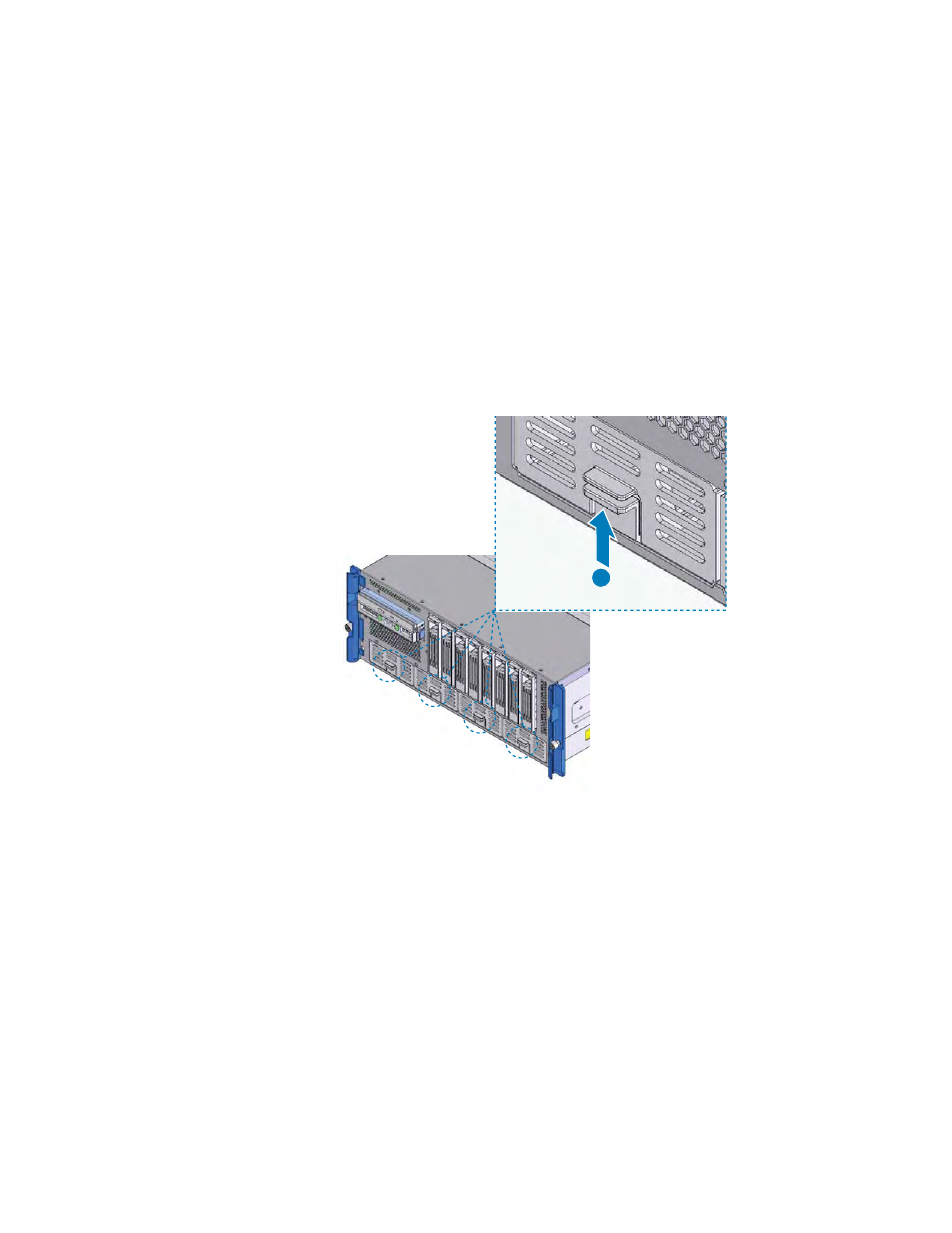

Figure 31. Removing the Memory Box Filler Panel
3. While holding the release lever up, pull the memory box filler panel from the
system. Save the filler panel for future use.
4. If necessary, install DIMMs into the memory box. For instructions, see
.
5. Pull out on the metal front edge of the memory box.
AF001116
A
