Figure 46. installing a fan – Intel SR9000MK4U User Manual
Page 78
56
Intel
®
Server System SR9000MK4U Product Guide
3. Note the fan orientation in the figure below to make sure you insert the fan
correctly. Insert the fan into the bay.

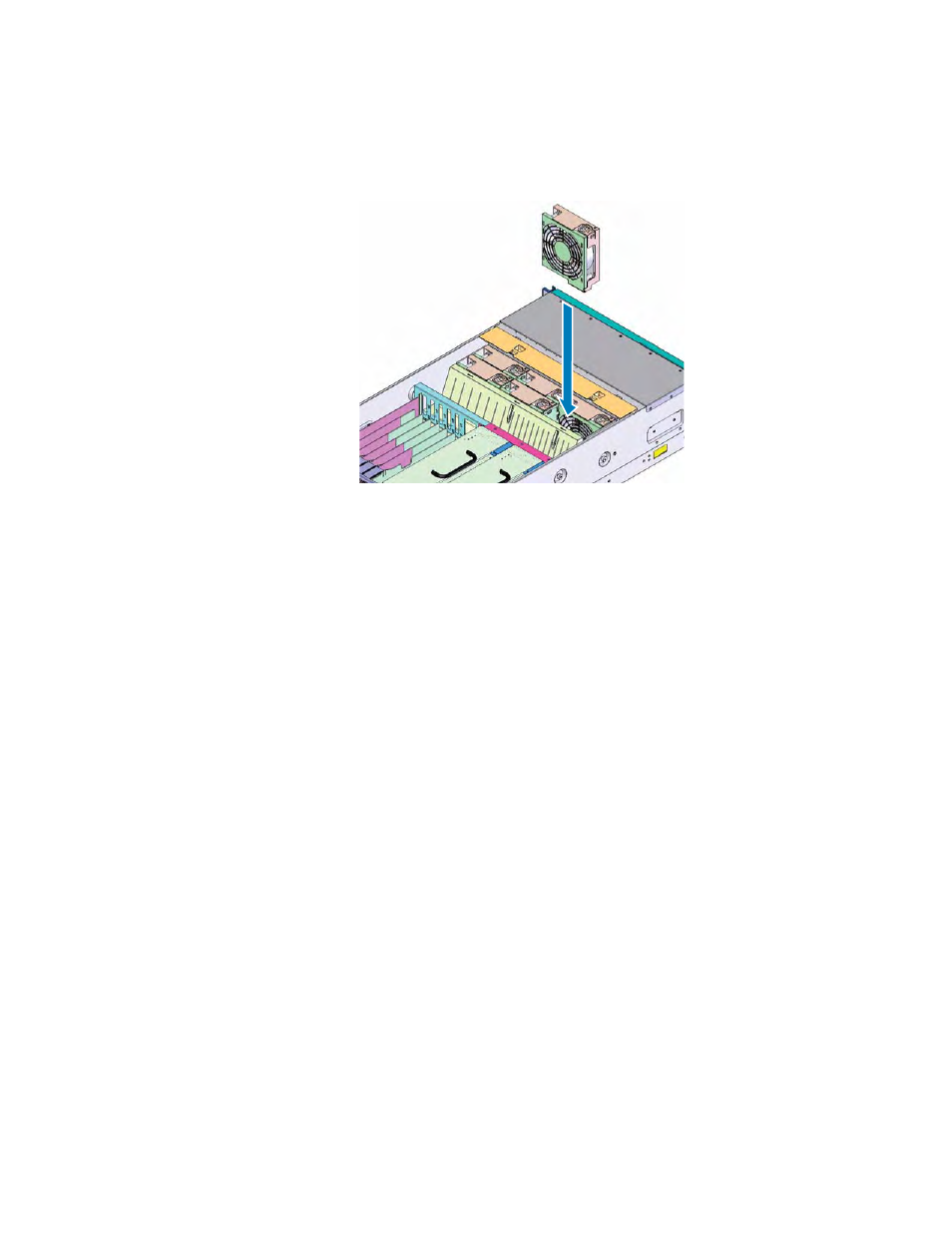

Figure 46. Installing a Fan
4. Determine your next course of action and refer to the appropriate steps:
—
If you are following these steps as part of another procedure, return to that
procedure.
—
Install the top cover. For instructions, see
“Installing the Top Cover” on page 37
.
AF001134
