Hard Drive Backplane

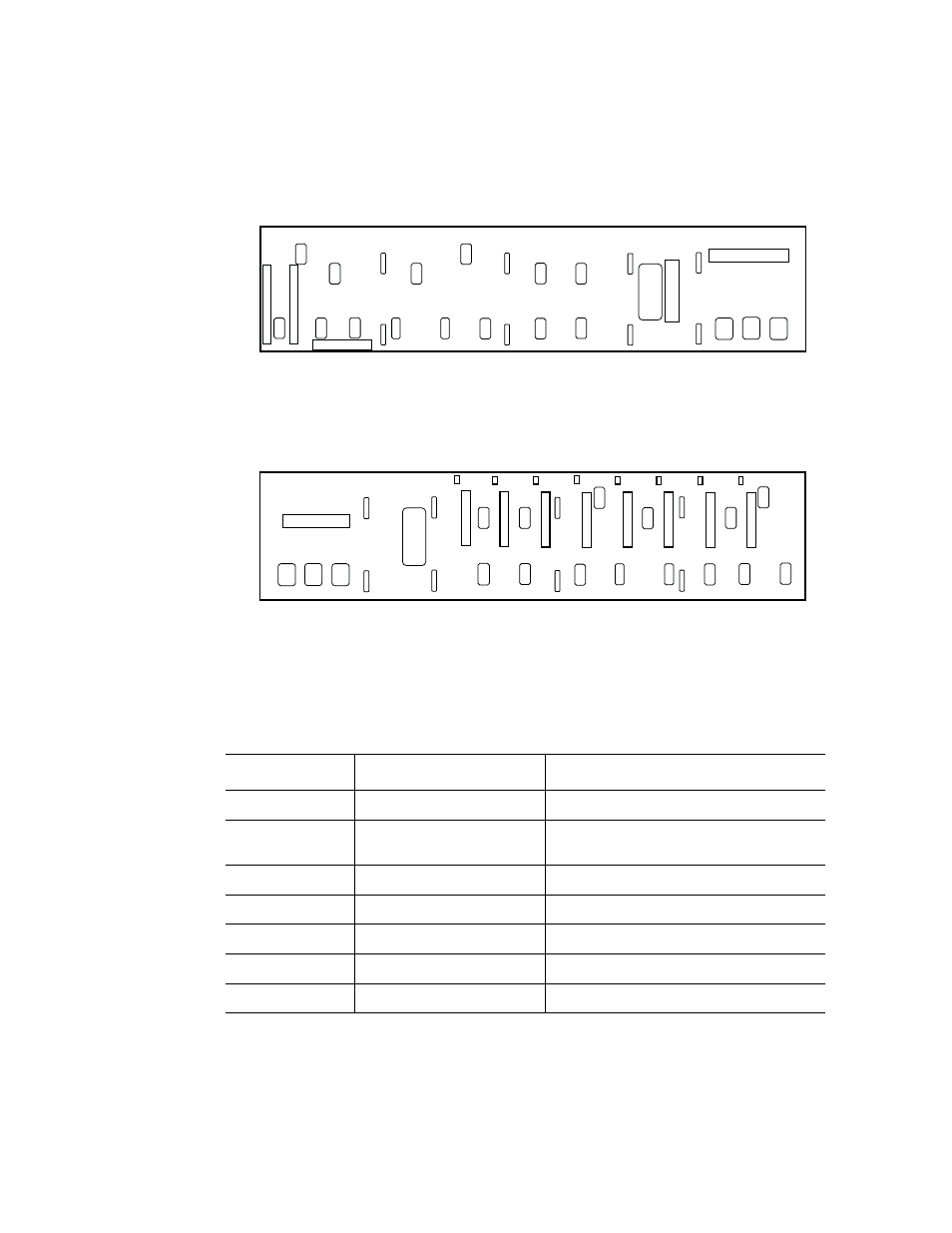

Figure 18. Hard Drive Backplane Top View
Figure 19. Hard Drive Backplane Bottom View
Note: Available when additional SAS PCI card is inserted into PCI slot.
Table 15. Hard Drive Backplane Connectors
Board Location
Connector
Description
C0
HDD0/1/2/3
SFF-8482 (SAS internal x1 connector)
C1
HDD4/5/6/7. See note
below
SFF-8482 (SAS internal x1 connector)
C2
SAS0
SFF-8484 (SAS internal x4 connector)
C3
SAS1. See note below
SFF-8484 (SAS internal x4 connector)
C4
ATA
40-pin IDE connector
C5
PNL
Panel connector
C6
PNLPW
Panel power
AF001097
SA
S1
SA
S0
ATA
PNL
PN
L
P
AF001098
HDD1
HDD2
HDD3
HDD4
HDD5
HDD6
HDD7
HM
IDLED0
IDLED1 IDLED 2 IDLED3 IDLED4 IDLED5 IDLED6 IDLED7
HDD0
