Page 33
Intel
®
Server System SR9000MK4U Product Guide
11
Internal Layout
The following diagram shows the location of components inside of the server system.

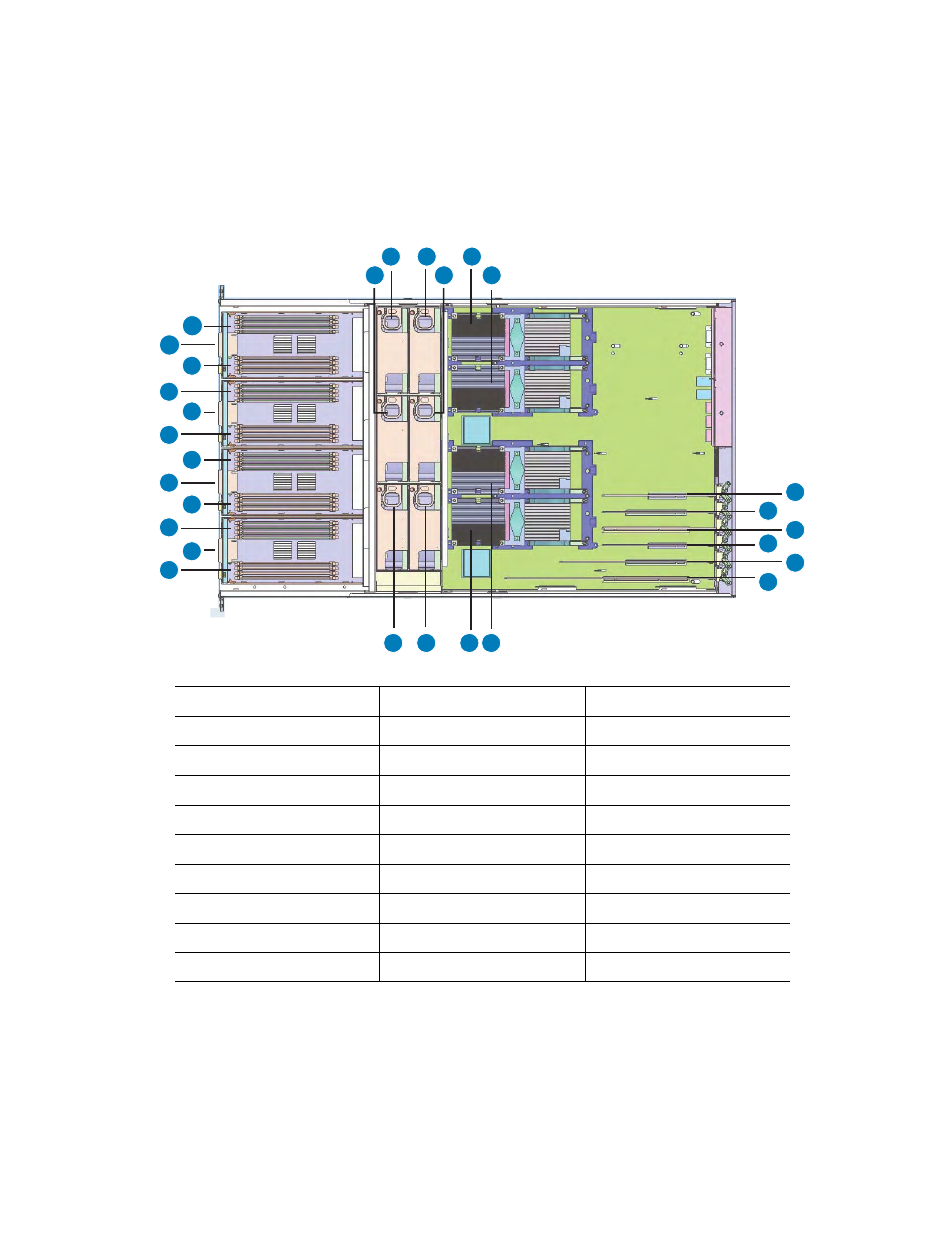

Figure 8. Open System, Top View
AF001089
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
BB
AA
Z
Y
X
W
V
U
T
A.
System Fan 2
K.
PCI-Express, x16, Slot 5
U. Memory Box 2
B.
System Fan 0
L.
PCI-X, Slot 6
V.
DIMM Sockets
C. System Fan 1
M. Processor 2
W. DIMM Sockets
D. System Fan 3
N. Processor 3
X.
Memory Box 1
E.
Processor 0
O. System Fan 5
Y.
DIMM Sockets
F.
Processor 1
P.
System Fan 4
Z.
DIMM Sockets
G. PCI-Express, x8, Slot 1
Q. DIMM Sockets
AA. Memory Box 0
H. PCI Express, x 16, Slot 2
R. Memory Box 3
BB. DIMM Sockets
I.
PCI-X, Slot 3
S.
DIMM Sockets
J.
PCI-Express, x8, Slot 4
T.
DIMM Sockets
