Memory Box
In memory mirror mode, memory box 0 is paired with memory box 1. Memory box 2 is
paired with memory box 3. When mirroring mode is used, either of the memory boxes
with a pair can be hot-swapped.

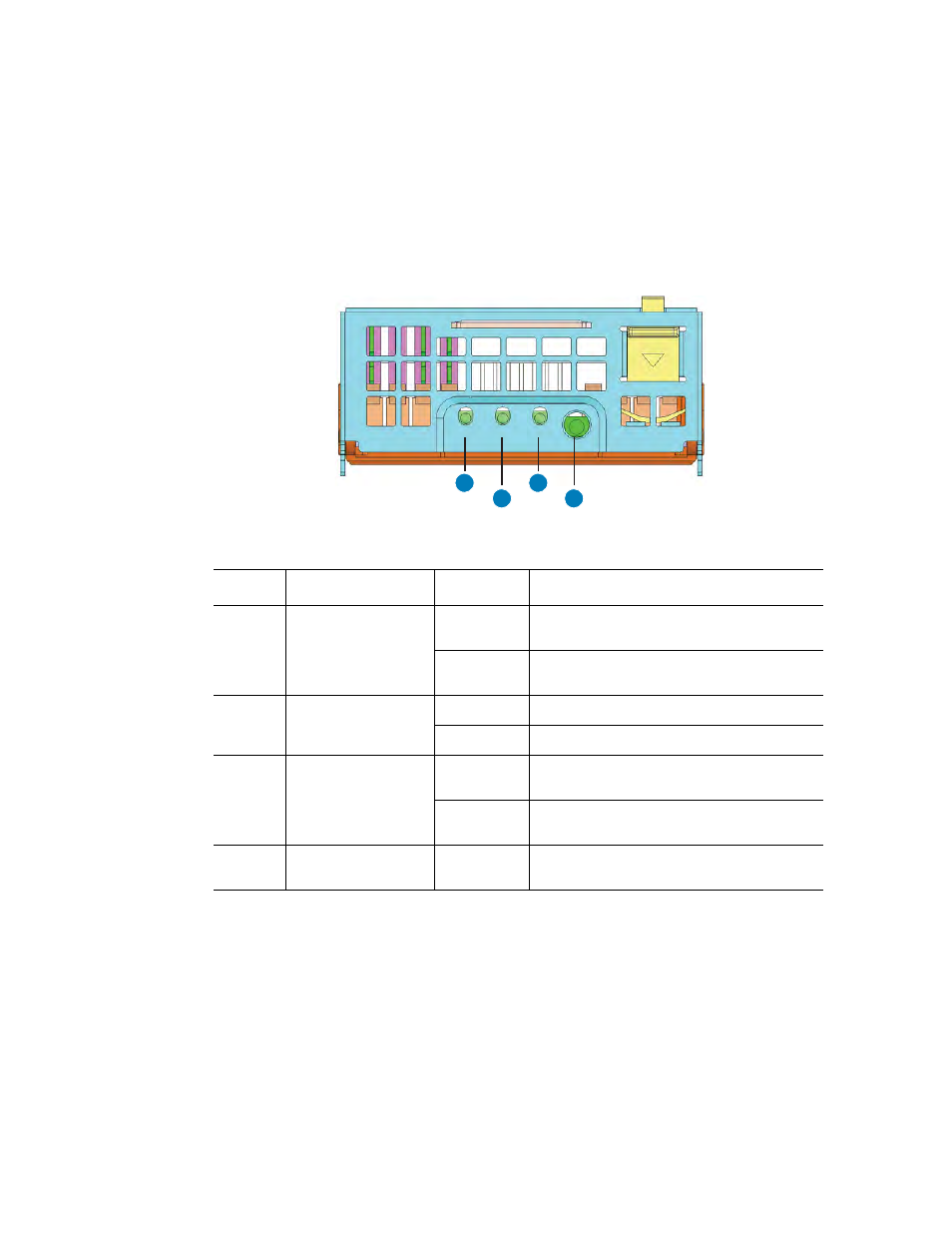

Figure 6 shows the front view of the memory box.
Figure 6. Memory Box Front View
Callout
LED
LED State
Description
A
Memory Box Mirror
LED
Green on
The memory box is operating in mirror
mode.
Off
The memory box is not operating in mirror
mode.
B
Memory Box Power
LED
Green on
The memory box is powered on.
Off
The memory box is powered off.
C
Memory Box
Attention LED
Orange on
An error has been detected in the memory
box.
Off
No error has been detected on the memory
box or the memory box is powered off.
D
No LED
N/A
Hot-swap button. Press this button to initiate
a hot-swap process.
