6. Install the PCI card. See Figure 54.

—

For a short-length card, insert the PCI card firmly into the slot.

—

For a full-length card: Insert the PCI card into the slot. The end of the card at the
front side of the chassis must inserted and locked into place in the PCI tail lock.
See Figure 53.

Note: Full-length cards can be installed only into PCI slot 6.

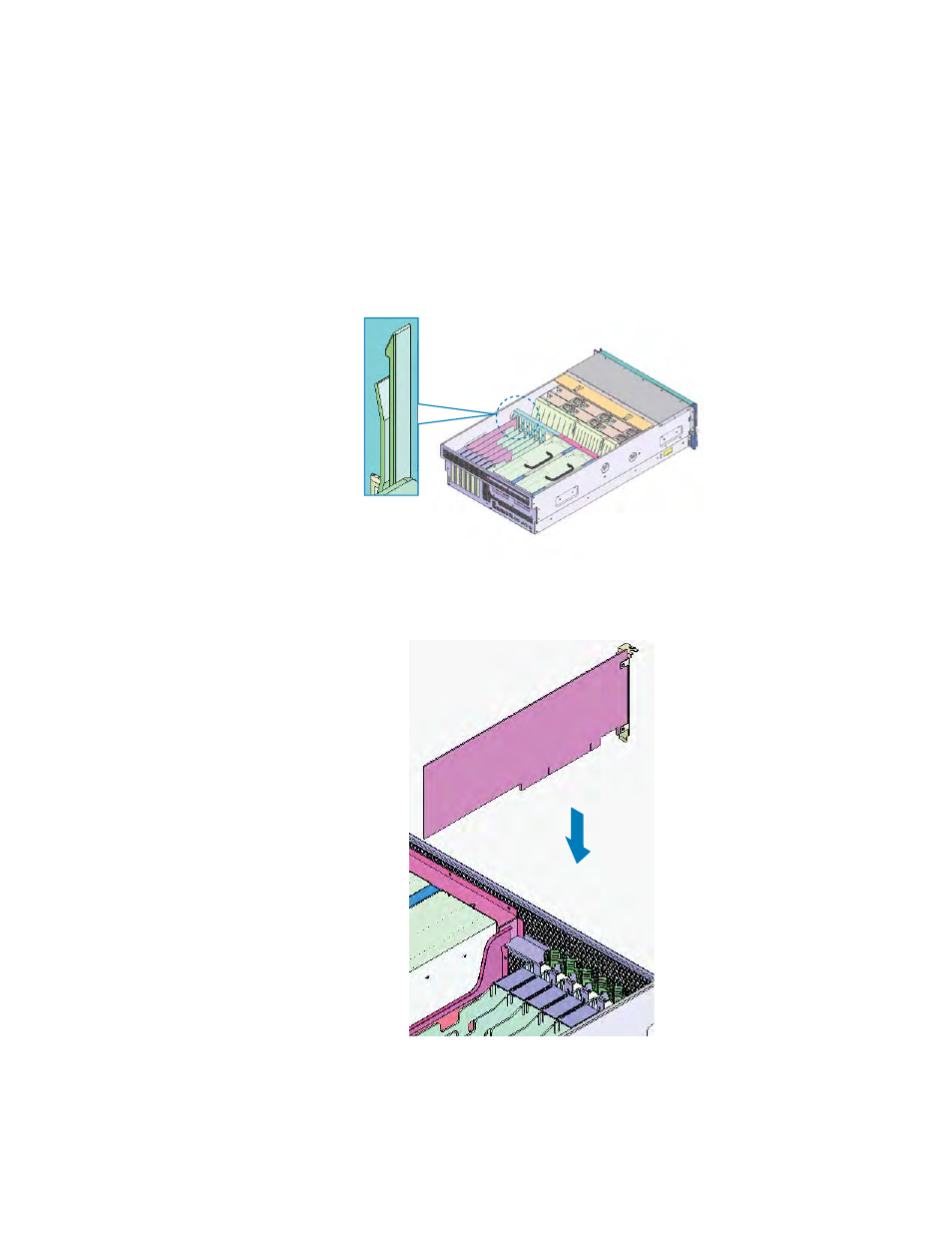

Figure 53. PCI Tail Lock

Figure 54. Installing a PCI Card

AF001136

TP001141
