Dimm configurations, Figure 16. dimm locations (top view of memory box) – Intel SR9000MK4U User Manual
Page 47
Intel
®
Server System SR9000MK4U Product Guide
25
DIMM Configurations
Figure 16 shows the DIMM locations within each memory box. One memory box houses
either four or eight DIMMs. For a four-DIMM configuration, the DIMMs should be
installed into locations JD0A1, JD0B1, JD2B1 and JD2A1.

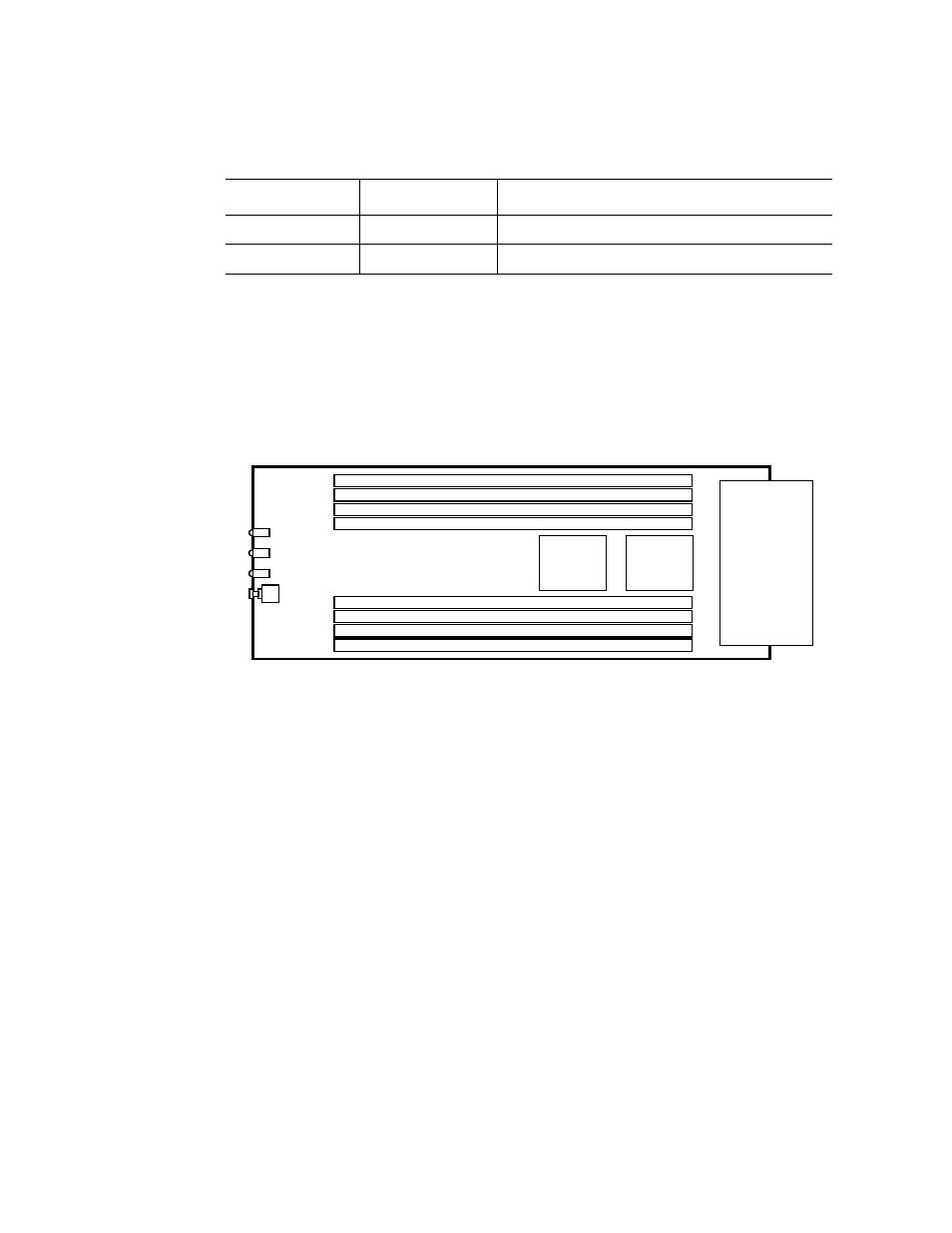

Figure 16. DIMM Locations (Top View of Memory Box)
C8
JD2A0
240-pin DDR2 DIMM socket (MC1 channel B)
C9
VHDM
Table 13. Memory Box Card Connectors
Board Location
Connector
Description
AF001101
JD0A0
JD0A1
JD0B0
JD0B1
JD2B1
JD2B0
JD2A1
JD2A0
