IBM 220 User Manual
Page 66
56
IBM® xSeries 220 User’s Reference

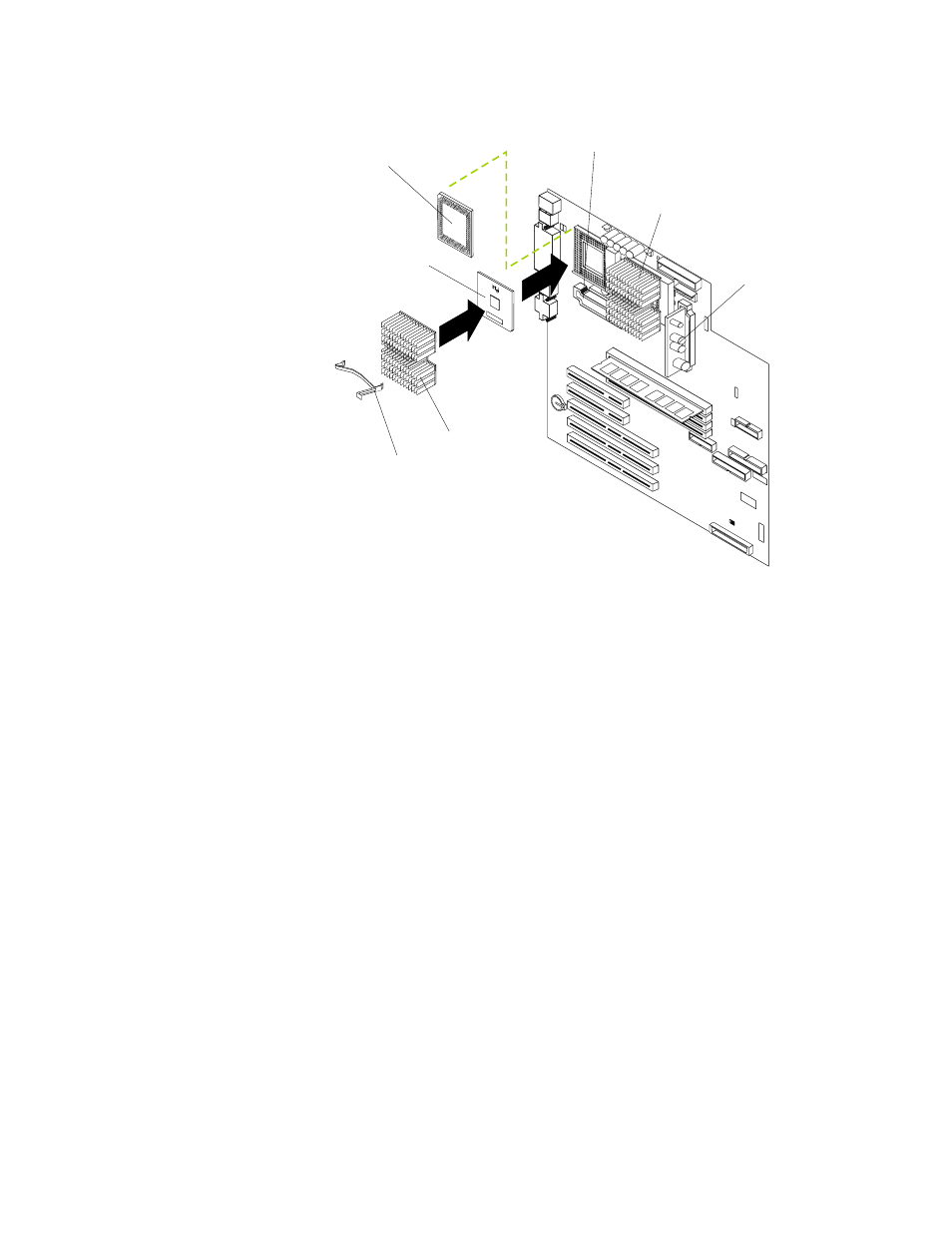

8. If you are installing a microprocessor that has a speed lower than 933 MHz, install
the heat sink onto the microprocessor:
a. Peel the plastic protective strip off the bottom of the heat sink. Make sure
that the square of thermal material is still on the bottom of the heat sink.
b. Align and place the heat sink on top of the microprocessor.
c. Align and place the heat-sink retainer (clip) over the heat sink; then, snap it
into place.
d. Continue with step 10 on page 57.
Terminator card
Microprocessor 2
Microprocessor 1
VRM 1
(J42)
VRM 2
(J12)
Heat-sink
retainer
Heat sink
