Chapter 1.

Reference Information

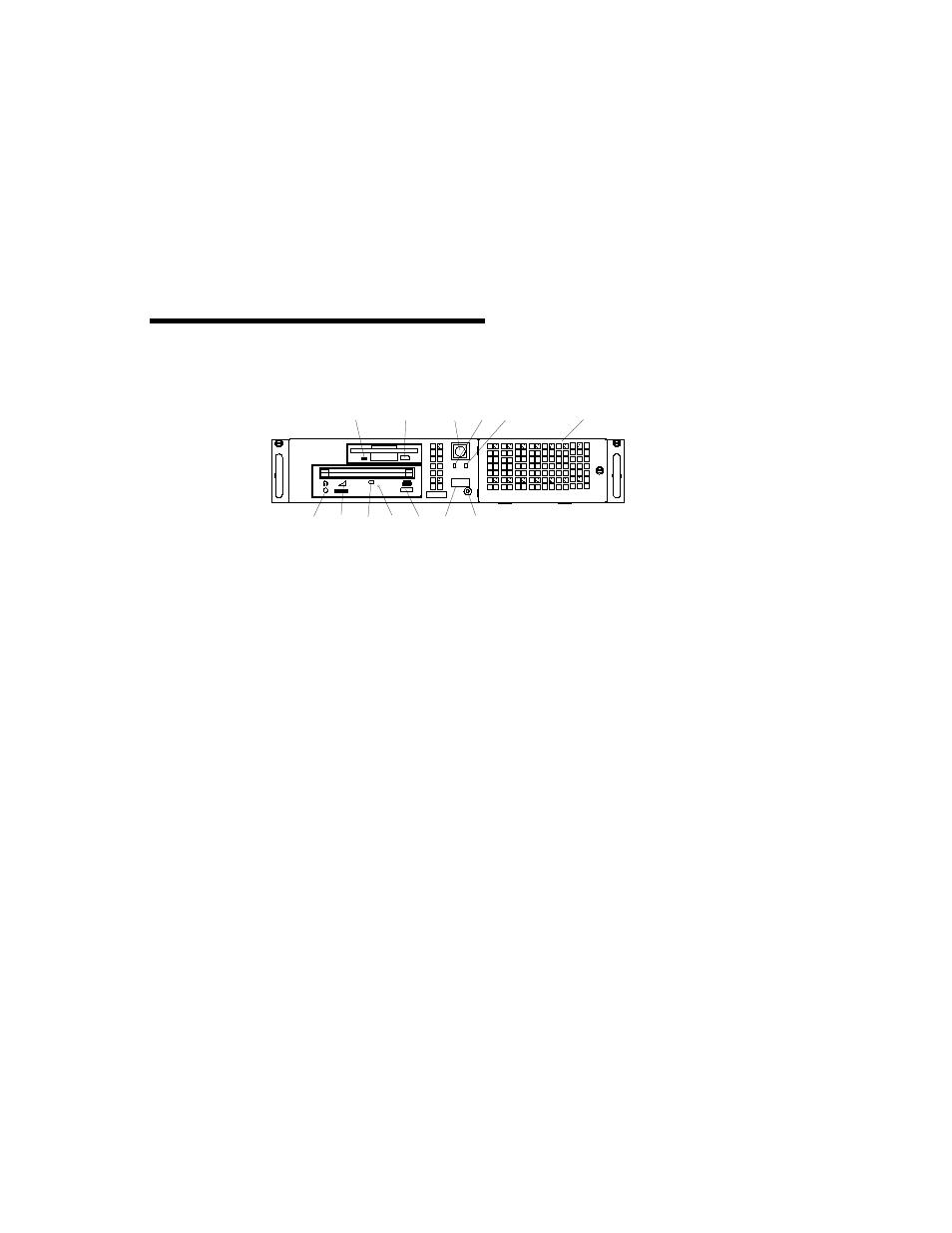

Front View

10

9

8

6

11

12

13

1

2

3

4

7

5

1

Power Switch: Turns server power

on and off.

2

Hard Disk Drive Status Light:

Glows when server is reading from or
writing to the hard disk.

3

Power-On Light: Glows when

server is on.

4

Disk Drive Bay Cover: Covers the

hard disk drive bays.

5

Reset Button: Function depends

upon the operating system installed.

6

Operator Panel Display: Function

depends upon the operating system
installed; may display current status of
server startup, or diagnostic information
in the event of a hardware problem.

7

CD-ROM Eject Button: Releases

the CD-ROM from the CD-ROM drive.

8

CD-ROM Emergency Eject: Ejects

CD-ROM from the CD-ROM drive if
power is not available.

9

CD-ROM Status Light: Indicates

when the CD-ROM drive is active.

10

CD-ROM Volume Control:

Controls the volume for the CD-ROM
headphone jack.

11

CD-ROM Headphone Jack:

CD-ROM Headphone connector.

12

Diskette-Drive Status Light:

Glows when server is reading from or
writing to a diskette.

13

Diskette Eject Button: Releases

diskette from 3.5-inch diskette drive.

Chapter 1. Reference Information

1-1
