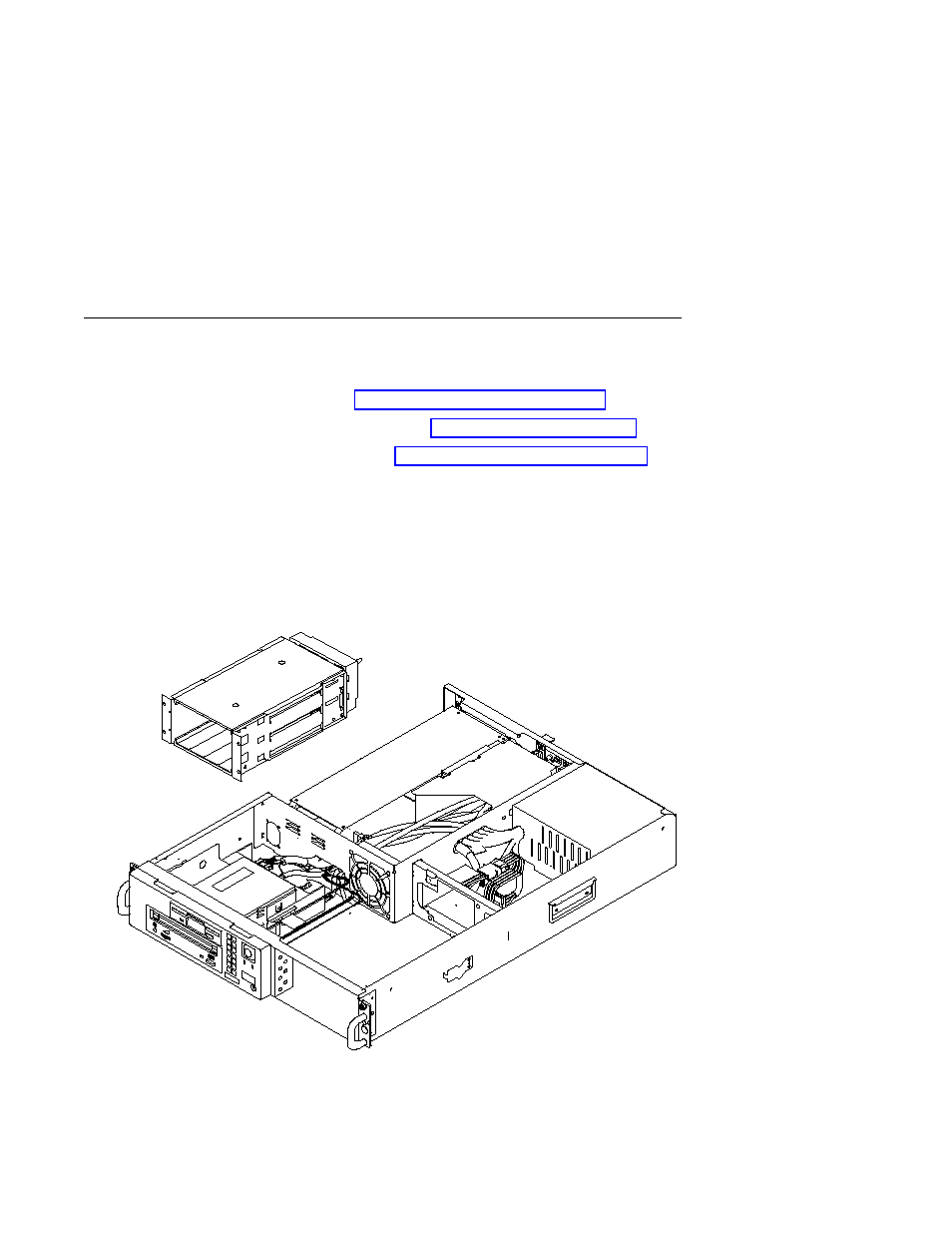

DASD 2-Pack Assembly

Removal

1. Remove the cover as described in “Removing the Cover” on page 7-3.

2. Remove the disk drive cover, as described in “Front Covers” on page 7-17.

3. Remove the disk drives, as described in “Internal Disk Drives” on page 7-24.

4. Remove the four screws that attach the DASD 2-Pack assembly to the front of

server.

5. Use a screwdriver with an extended shaft to remove the screws at the internal

upper-left and lower-right corners that attach the back of the DASD 2-Pack
assembly to the chassis.

6. Slide the the DASD 2-Pack assembly forward and lift it out of the server.

Replacement

Replace in reverse order.

7-6

7046 Model B50 Service Guide
