Page 154
Riser Card Support Bracket
Note: If you need to remove an adaper card, do so before you remove the riser
card support bracket. See “Adapter” on page 7-25.
Removal
1. Remove the cover as described in “Removing the Cover” on page 7-3.
2. Remove the screw that attaches the bracket to the riser card.
3. Loosen the other screw that attaches the bracket to the divider in the keyhole
slot in front of the power supply.

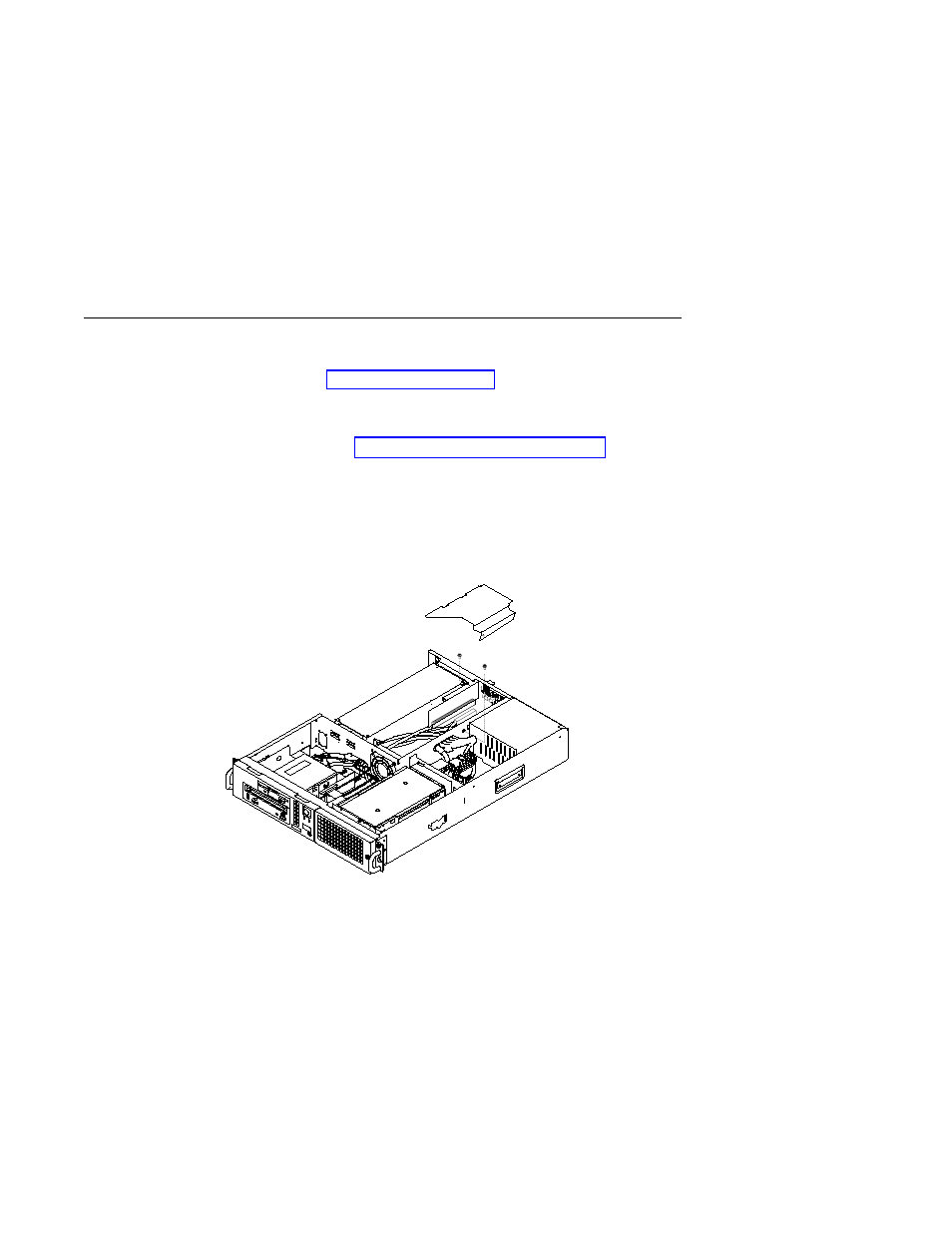

4. Slide the bracket forward and lift up, as shown in the following illustration:
Replacement
Replace in reverse order.
7-10
7046 Model B50 Service Guide
