Riser card, Removal, Replacement – IBM B50 User Manual
Page 155: In “riser card” on
Riser Card
Removal
1. Remove the cover as described in “Removing the Cover” on page 7-3.
2. Remove the adapters as described in “Adapter” on page 7-25.
3. Remove the riser card support bracket as described in “Riser Card Support
4. Remove the power cable P10 from the connector on the back of the riser card.
5. Grasp the riser card and pull upward to remove it from the system board, as

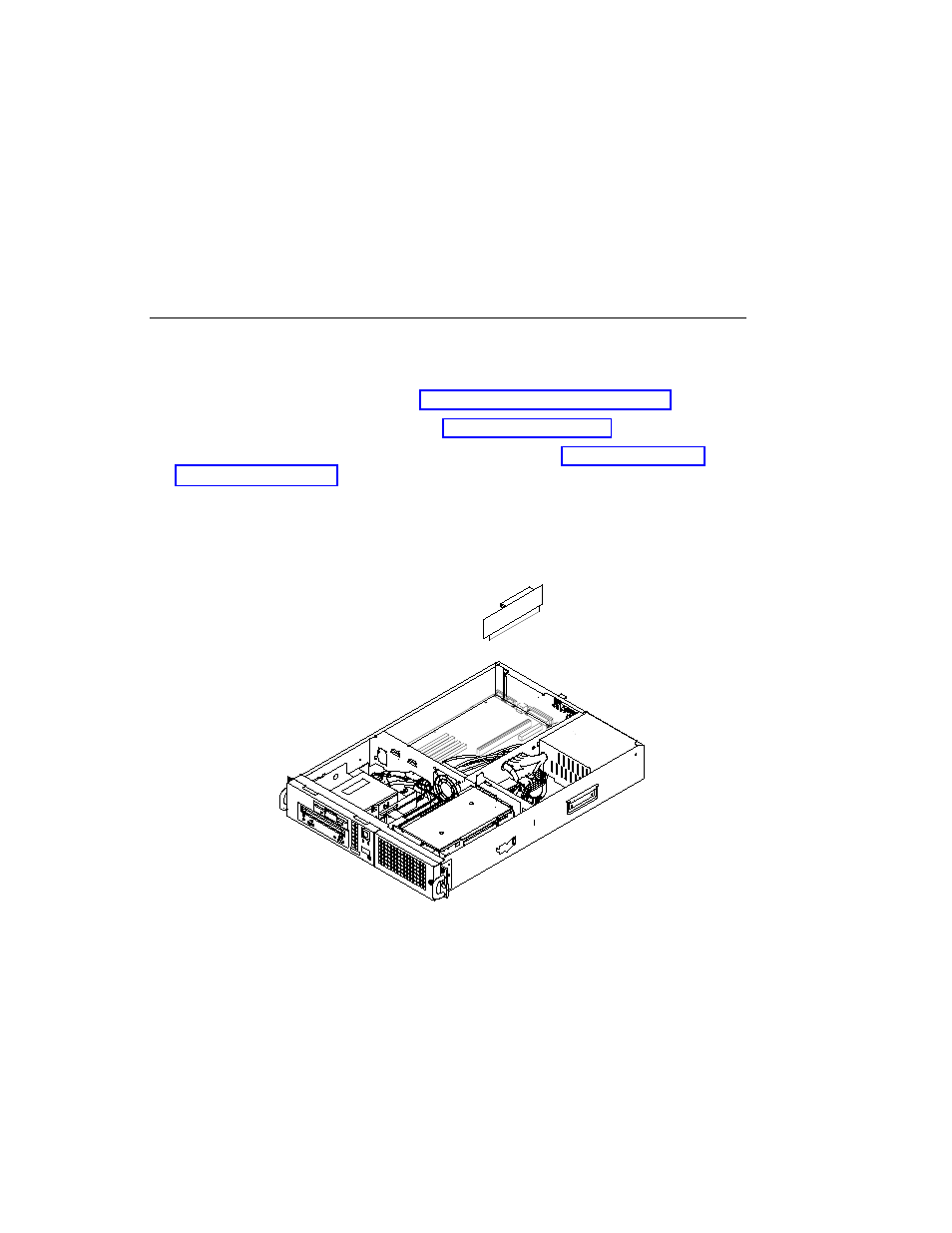

shown in the following illustration:
Replacement
Replace in reverse order.
Chapter 7. Removal and Replacement Procedures
7-11
