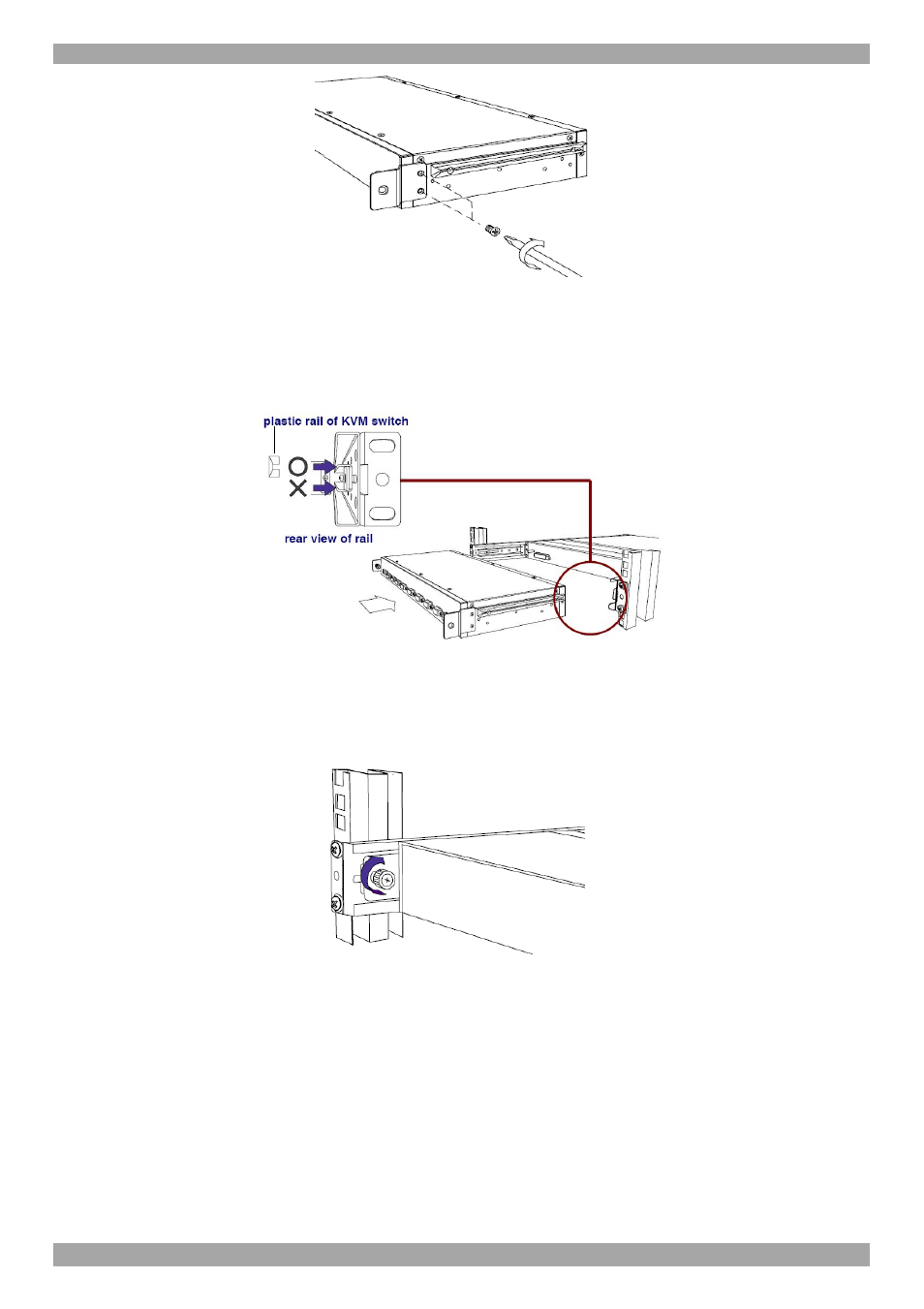

Figure 14 Connecting the bracket A to the sides of the Switch
2. Slide the Switch 116 IP into the rail and into the back of the SmartRack console
until you hear a click. See the figure below.
Figure 15 Slide switch into back of SmartRack
3. Secure the Switch 116 IP to the rail by inserting the thumbscrews through the
bracket and into the rail and tightening them, see Figure 16.
Figure 16 Tightening the thumbscrews
