SMARTRACK 116 IP
9

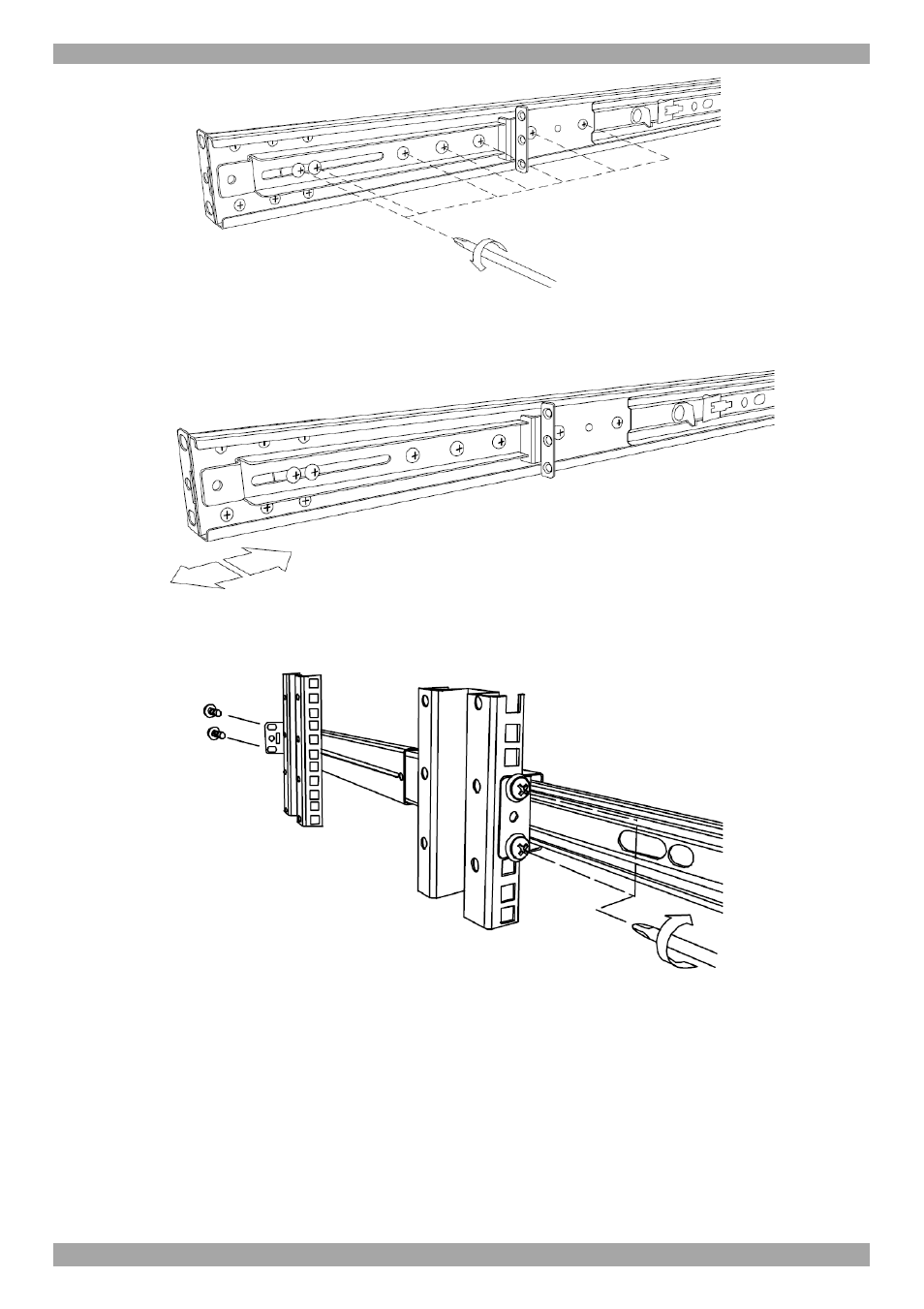

Figure 2 Loosen 7 screws
3. Adjust the rear bracket to fit your cabinet, see below.
Figure 3 Adjusting the bracket
4. Install the front and rear bracket onto the cabinet, see figure below.
Figure 4 Installing front and rear bracket on cabinet
5. Tighten the 7 screws as shown below.
