G0554 Gear-Head Floor Lathe
-7-
Headstock Controls
A. Gear Change Levers: Used for setting
spindle speed.
B. Feed/Lead Selector Lever: Used for set-
ting up power feed or threading operations in
conjunction with threading charts.
C. Lead Screw/Feed Rod Direction Lever:
Moving lever up moves carriage toward
tailstock—moving lever down moves car-
riage toward headstock when chuck is spin-
ning. Do not change lever position while
machine is running.
D. Feed/Lead Selection Knob: Used for set-
ting up power feed or threading operations in
conjunction with threading charts.
E. Feed Rod Lock Knob: With the knob in
the six o'clock position, the Feed/Lead
Selection Knob can be adjusted. With the
knob in the twelve o'clock position, the
Feed/
Lead Selection Knob is locked in position.
F. Feed/Lead Selector Lever: Used for set-
ting up power feed or threading operations in
conjunction with threading charts.
G. Carriage Micro Stop: Used for fine adjust-
ments for repeatable carriage stops.
Graduated to 0.001". NOT TO BE USED
WITH POWER FEED!
H. Emergency Stop Button: Stops all machine
functions. Twist to reset.
I. Jog Button: Turns all lathe functions ON
while being pressed.
J. Power Light: Indicates the lathe is energized
when illuminated. Controlled by the master
power switch on the back of the cabinet.
K. Coolant Pump Switch: Turns coolant pump
ON.
L. Speed Chart: Shows lever combinations for
spindle RPMs.
M. Threading Chart: Shows lever and knob
combinations for feed and threading opera-
tions.

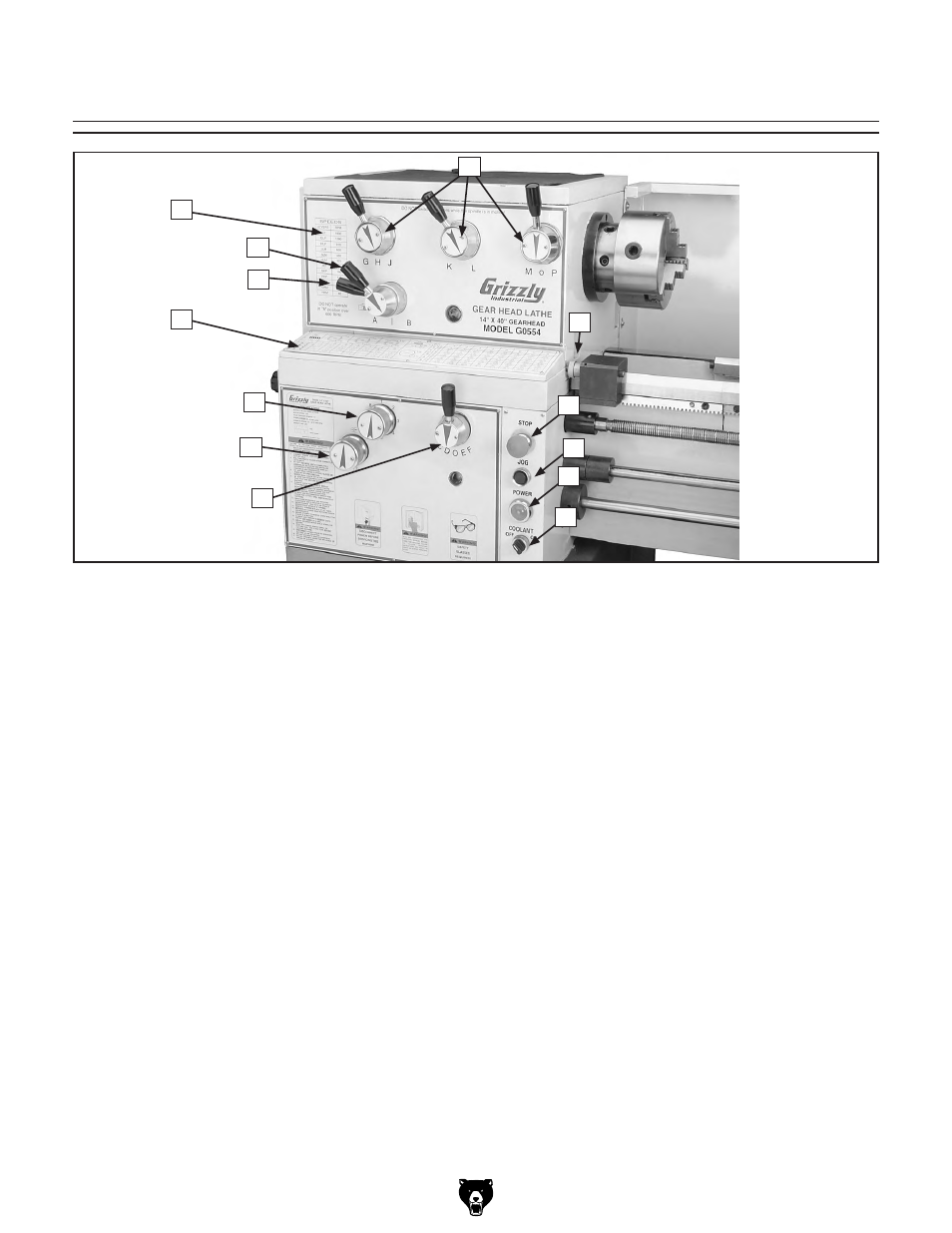

Figure 2. Control panel close-up.
A
B
C
D
F
E
H
I
J
K
G
L
M
