Grizzly G0554 User Manual
Page 46
-44-
G0554 Gear-Head Floor Lathe

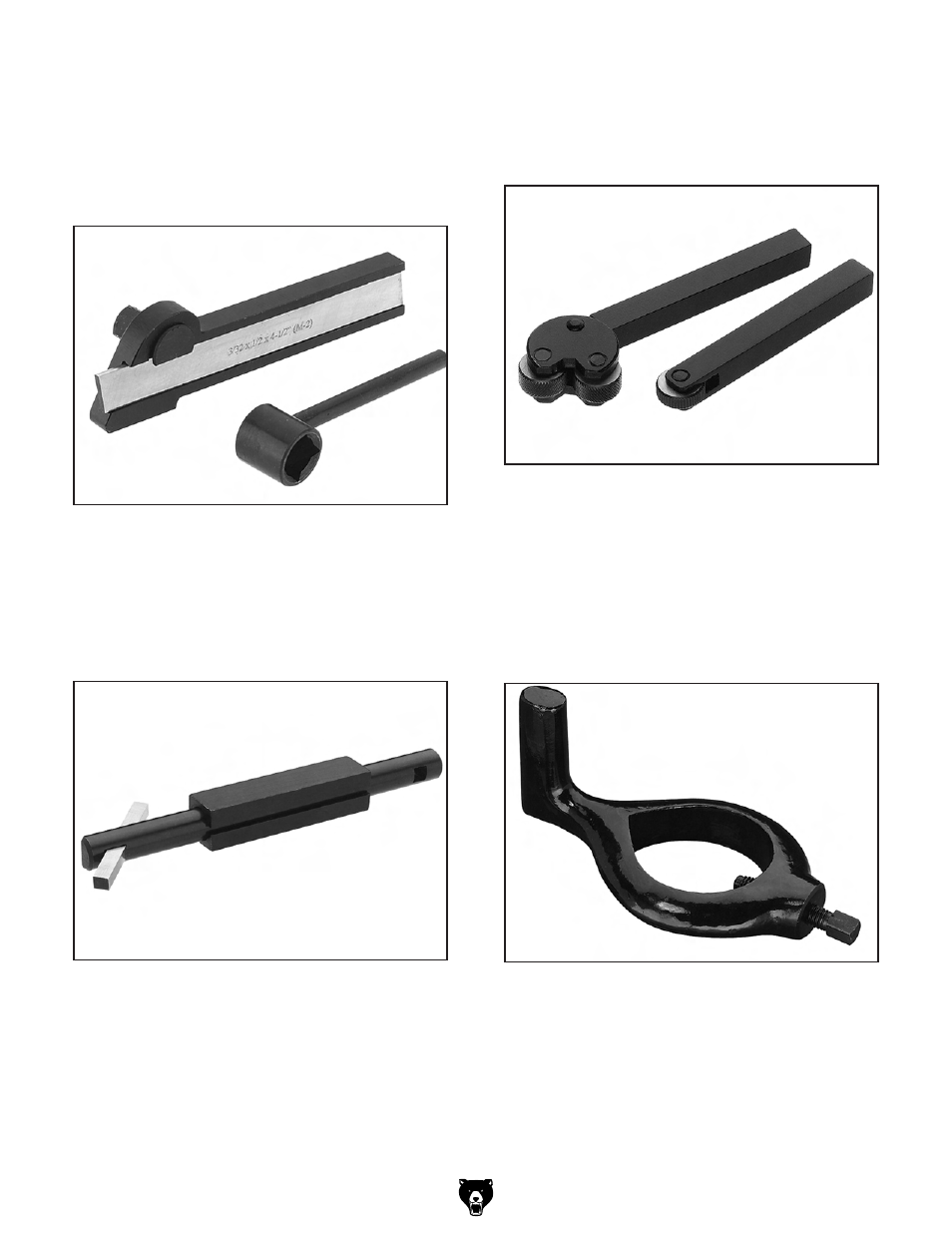

Figure 72. H2972 Cut Off Holder with Blade.
Figure 75. H2987-91 Lathe Dogs.
Figure 74. H5936 2 Pc. Knurling Tool Set.
Figure 73. H2996 Double Ended Boring Bar.
H2972—Cut Off Holder with Blade
H4268—
3
⁄
32
" x
5
⁄
8
" x 5" Replacement Blade
Small enough to fit most 4-way turret tool posts,
but rugged enough to handle the job, this cut-off
tool holder is a must. Comes with a wrench and
cut-off tool bit. Uses
3
⁄
32
" x
5
⁄
8
" x 5" tool bits. Shank
measures ½" x ¼" x 3".
H2996—Double Ended Boring Bar
This is a well made boring bar and holder. The
boring bar holds the tool bit at 90˚ at one end and
45˚ at the other. Comes with a wrench and tool
bit. Bar size is
3
⁄
8
" x 4½", holder is 2¼" x ½", uses
1
⁄
8
" tool bits.
H5936—2 Pc. Knurling Tool Set
This 2 piece set includes a ½" x 4" Single Knurling
Toolholder and a ½" x 4½" Double Knurling
Toolholder with Pivoting Head. Both have a black
oxide finish.
H2987—½" Bent Lathe Dog
H2988—1" Bent Lathe Dog
H2989—1½" Bent Lathe Dog
H2990—2" Bent Lathe Dog
H2991—3" Bent Lathe Dog
Just the thing for precision machining between
centers! These bent tail Lathe Dogs are made of
durable cast iron and feature square head bolts.
