Features of Tabular Data Screen Wizards PMCS Interface Toolkit
Power Quality Tab

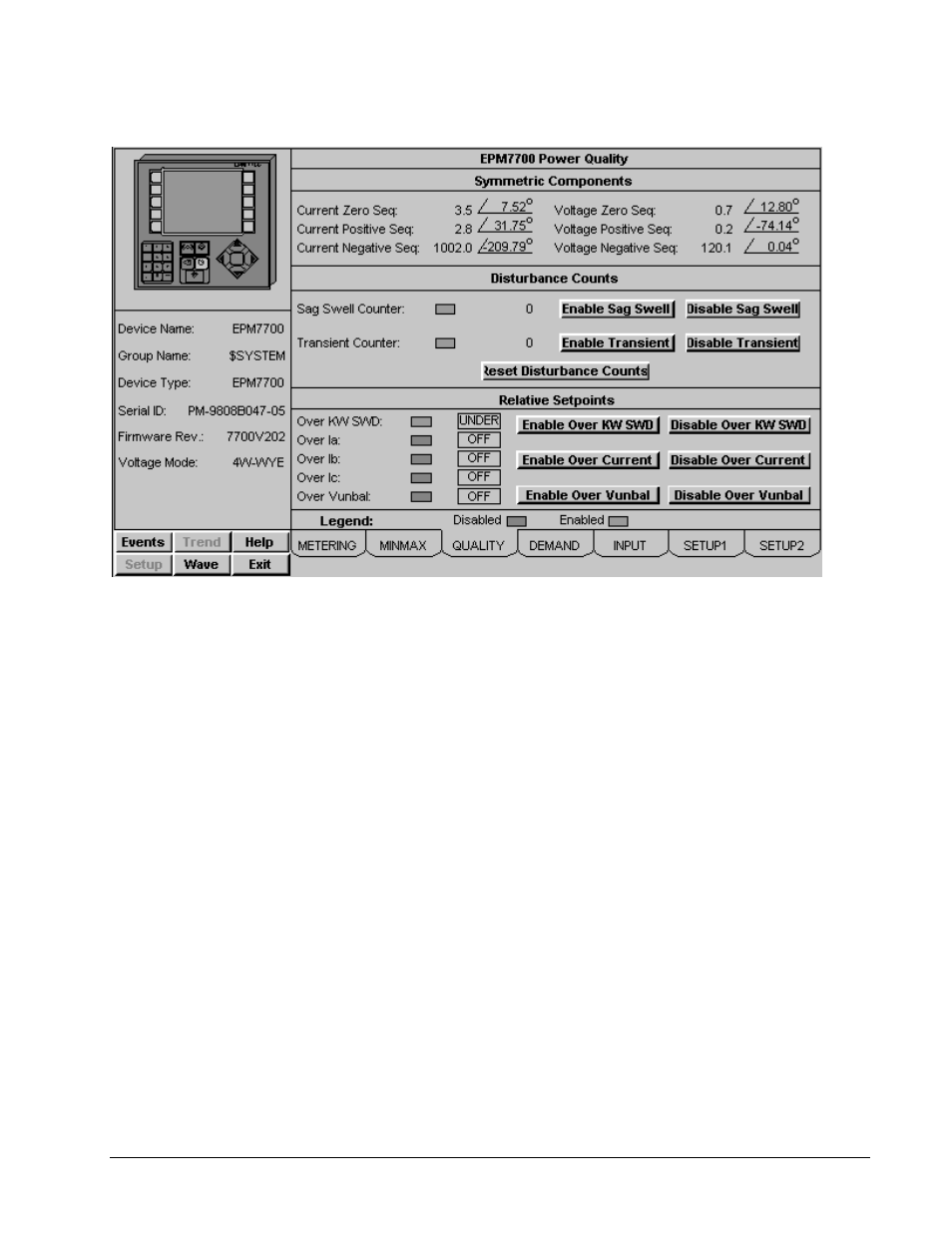

EPM 7700 ION Meter - Power Quality Tab
The Power Quality tab displays the following power quality values from the EPM
7700.
Disturbance Monitoring
•
Sag / Swell Counter
•
Transient Counter
•
Over KW Sliding Window Demand Status
•
Over Current Phase A Status
•
Over Current Phase B Status
•
Over Current Phase C Status
•
Over Voltage Unbalance Status
*Note: no color code is used for the Relative Setpoint Status.
Symmetric Components
•
Zero Sequence Magnitude for Current and Voltage
•
Zero Sequence Phase for Current and Voltage
•
Positive Sequence Magnitude for Current and Voltage
•
Positive Sequence Phase for Current and Voltage
•
Negative Sequence Magnitude for Current and Voltage
•
Negative Sequence Phase for Current and Voltage
The Power Quality tab also provides push buttons for performing the following
commands:
