The LEDs on 6KP8-RJ45- PoE modules are slightly different compared to

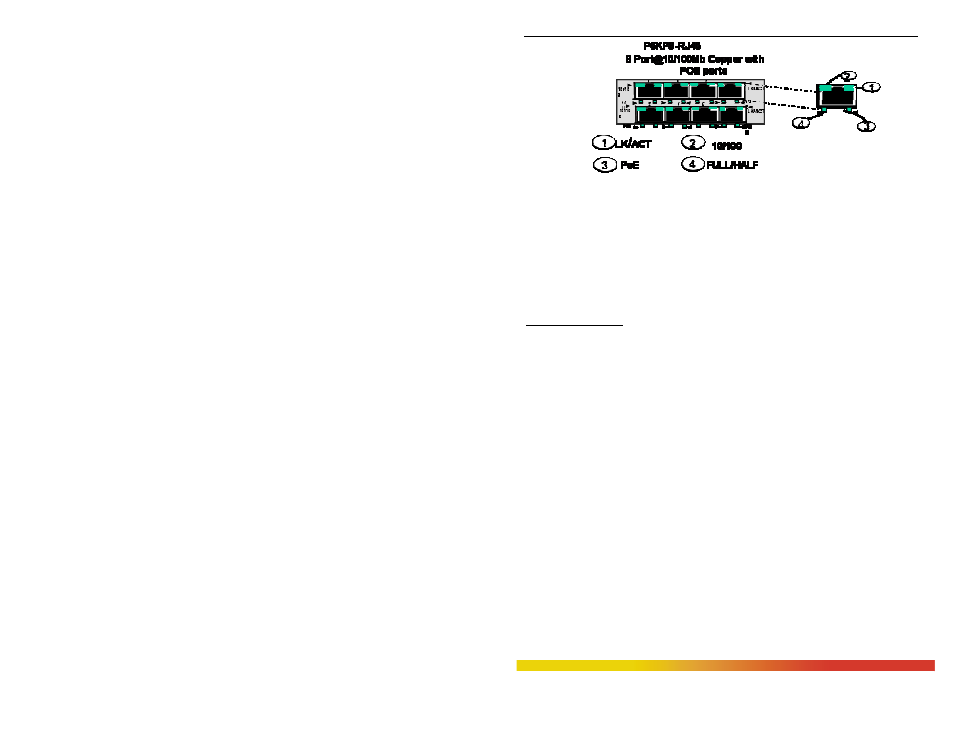

regular (non-PoE) RJ-45 modules as shown in Fig 2. When the PoE port is in use, the

PoE LED is ON when connected properly to an 803.af compliant PD device on that port.

When non-PoE devices are connected, the PoE LED is OFF. PoE does not affect

operation of Ethernet data traffic.

LINK and ACTIVITY LEDS are combined on the PoE modules into one LED

that is marked as LINK/ACT, as shown in the diagram.

PoE LEDs Summary

For PoE devices, each RJ-45 PoE port supports only 802.3af complaint

devices. The PoE LED is ON when the attached PD is drawing power from the

port.

For non-PoE devices connected, the PoE port will act as a normal RJ-45 port

and the PoE LED is OFF. No power is being sent out from the port.

The PoE ports in Magnum 6K’s with 48VDC power input act as a pass-

through, so the 48VDC power source must be strong enough to provide power

to the 6K switch and to all the 8 RJ-45 ports with PD devices connected (up to

15 watts per PoE port).

In the case where the 48VDC power in not internally connected and no power

is coming to the PoE ports for some reason, all the PoE port LEDs are ON

simultaneously to indicate a trouble condition. The ports will still operate

properly for data traffic.

5.2.10b. New PoE(Power Inside), model PI6KP8-45RJ (MDIX), 10/100Mb 8-port

The PoE RJ-45 ports act similar to regular RJ-45 ports, except they have

capability of providing power on each port to power up the PD devices, per the
IEEE802.3af PoE standard. Only 4 x RJ-45 (10/100) ports maxm. support POE(Power
