to its compact, hot pluggable characteristics, SFPs are becoming a very popular choice
for various applications. The small-chassis Magnum 6K is designed for industry-standard
Gb-SFPs and Gb-SFPCU (copper) for user selection of the SFP gigabit media type as
desired.
All SFPs used in Magnum 6Ks are compliant with the industry standard Multi-Source
Agreement (MSA) ensuring compatibility with a wide range of networking kit.

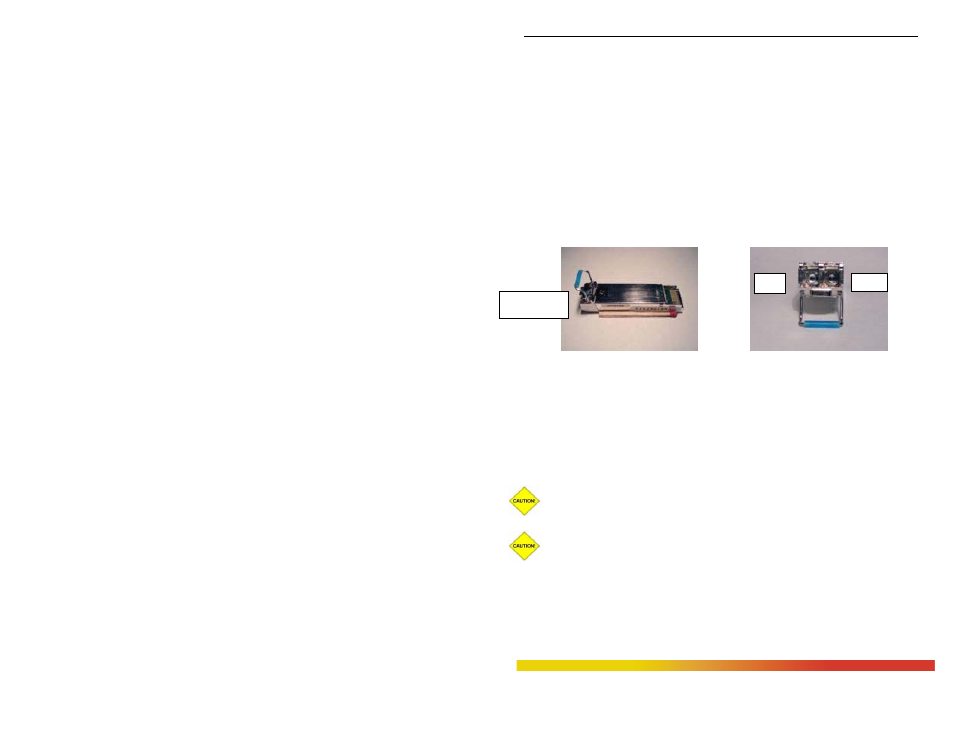

Side View ---Duplex LC connector -- Front view
Note: It is highly recommended to remove the fiber cable first before removing the SFP
transceiver for any reason. Not removing the fiber cable first can damage the fiber cable,
cable connector or optical interfaces. It is advised not to remove and insert a SFP
transceiver frequently as this may shorten its useful life.
Note: Always use an ESD wrist strap while handling the SFP transceivers since the
SFP modules are static sensitive devices.
Note: The copper 1000BASE-T SFP transceiver port supports 1000Mb only. It is
recommended to use a straight-through RJ-45(4-twisted pair) connection while
connecting to any Server/workstation. While connecting with any Switch/repeater or
other device, it is recommended to use Crossover RJ-45 (4-twisted pair) category 5 or
higher cabling. The maximum length supported on copper 1000BASE-T is 100mts (328
ft.).
TX RX
Bail clasp
TX RX
Bail clasp
