Magnum 6K32T & 6K32TRC Managed Switch Installation and User Guide 05/07)
52
www GarrettCom com . .

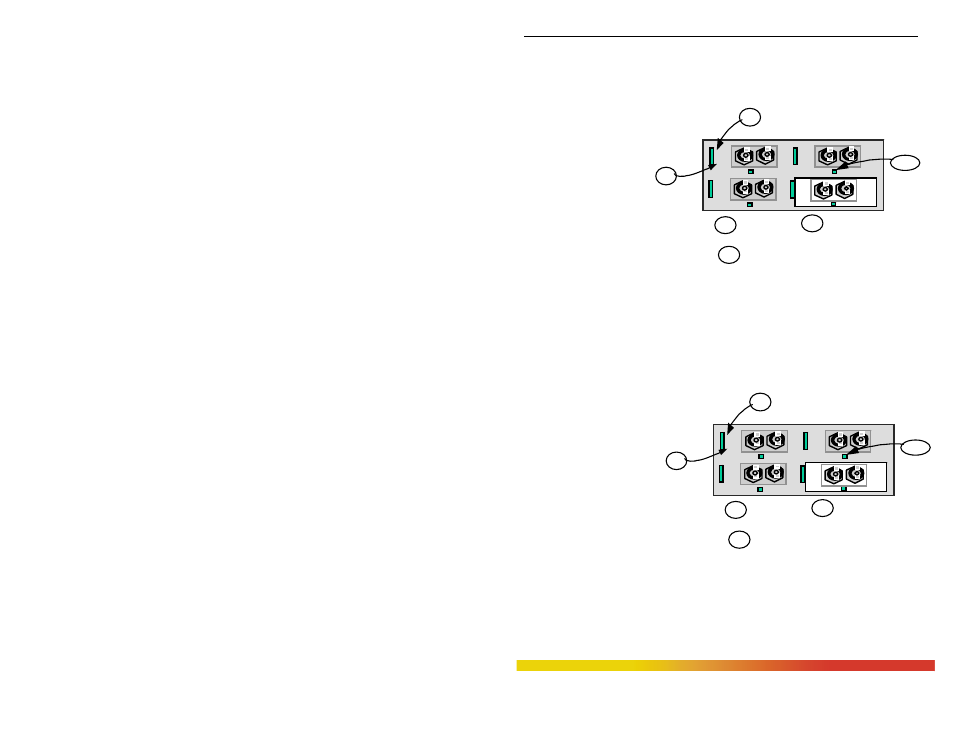

6KP4-RJ10MST,
4 Port@ 10Mb ST Fiber Port
2 6 T LK RX
ACT
F/H
TX RX LK
ACT
F/H
TX RX LK
ACT
F/H
TX RX LK
ACT
F/H
1 5 3
2
1
FULL/HALF
1 ACTIVITY LINK 2
3
6KP4-RJ10MST,
4 Port@ 10Mb ST Fiber Port
2 6 T LK RX
ACT
F/H
TX RX LK
ACT
F/H
TX RX LK
ACT
F/H
TX RX LK
ACT
F/H
1 5 3
2
1
FULL/HALF
1 ACTIVITY LINK 2
3
5.2.1b 6KP4-F10ST, 4@10Mb multi-mode FX-ST “twist lock” Module
The Magnum 6KP4-F10ST
is a 10Mb multi-mode
fiber module with 4 ST-
Fiber ports. All four fiber
ports are ST connectors
and configured as 10Mb
Half-duplex by default.
The 10Mb ST-fiber ports
allow the user to connect
their legacy 10Mb network
to the Magnum 6K32T &
6K32TRC switch. They also provide a convenient way for the half duplex
hub to connect to the switch through 10Mb fiber ports. It supports distances according to
the 10Base-FL standard i.e, 2Km distance for multi-mode fiber. (Single-mode for 10Km
distance may be available as a special order).
Each port
has an Activity (ACT) LED
indicating packets being
received, a Link (LK) LED
indicating proper
connectivity with the remote
device when lit, and
FDX/HDX LED indicating
full-duplex mode when lit (or
half-duplex if off).
5.2.1c 6KP4-FLSTFX, 2@10Mb and 2@100Mb multi-mode FX-ST “twist
lock” Module
The Magnum 6KP4-FLSTFX is a combo fiber module with two 10Mb + two 100Mb
multi-mode fiber module and in combine 4 ST-Fiber ports. All four fiber ports are ST
