Magnum 6K32T & 6K32TRC Managed Switch Installation and User Guide 05/07)
16
www GarrettCom com
.
.
PoE LED is ON when connected properly to a 803.af compliant PD device on that port.
When non-PoE devices are connected, the PoE LED is OFF. Operation of Ethernet data
traffic is not affected by PoE.
LINK and ACTIVITY LEDS are combined on the PoE modules into one LED
that is marked as LINK/ACT, as shown in the diagram.
2.2.3b New PoE(Power Pass-through), model P6KP8-RJ45 (MDIX), 10/100Mb 8-
port
The PoE (Power-pass-through) RJ-45 ports act similar to regular RJ-45 ports,
except they have capability of providing power on each port to power up the PD devices,
per the IEEE802.3af PoE standard. The Power Pass-through PoE modules are totally
dependent upon the powerful -48VDC input power supply to support more RJ-45
(10/100) ports. Each port requires atleast 15watts to power up the PoE PD devices.
Maxm. one PoE modules can be configured in the A, B or C slot of any 6K s with -
48vdc power input. The PoE modules are also available with mix –n-match with fiber
modules. Please check the ordering information Sec.1.2 for all the various P6K PoE
modules option.

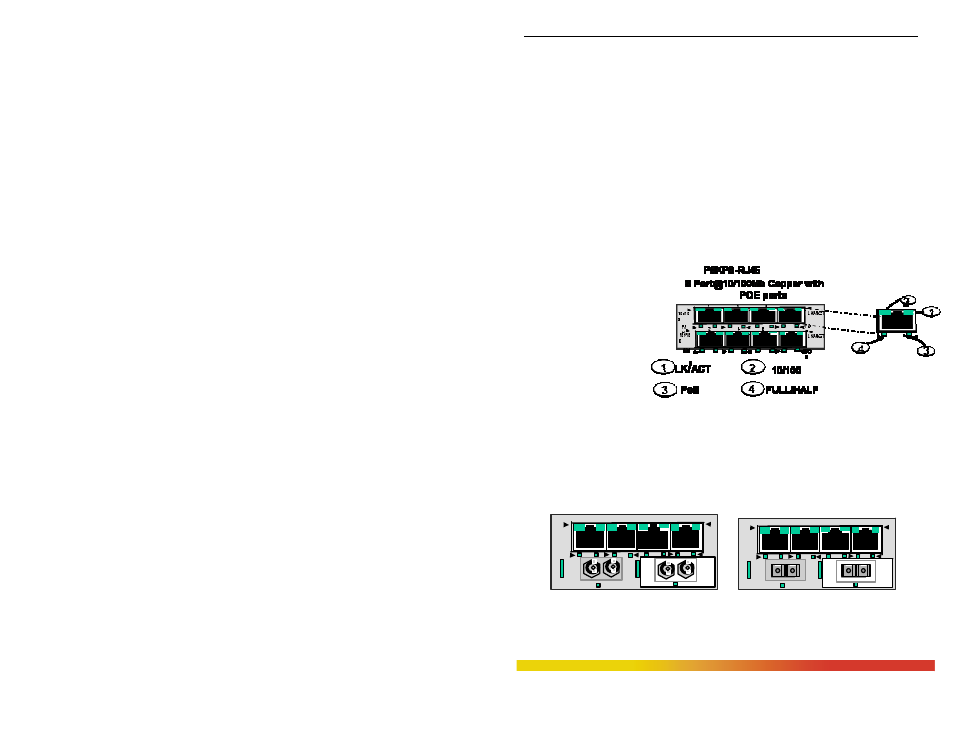

The LEDs
on 6KP8-RJ45- PoE
module are slightly
different compared
to regular (non-PoE)
RJ-45 modules as
shown in Fig 2.
When the PoE port
is in use, the PoE
LED is ON when
connected properly to a 803.af compliant PD device on that port. When non-PoE devices
are connected, the PoE LED is OFF. Operation of Ethernet data traffic is not affected by
PoE.
LINK and ACTIVITY LEDS are combined on the PoE modules into one LED
that is marked as LINK/ACT, as shown in the diagram.
2.2.4
Six-Port “4 + 2”Combo Modules, 4@ 10/100 RJ-45 and 2@100Mb
fiber
4@RJ-45 + 2@ 100Mb ST or SC
The combo six-port modules are combinations of copper and fiber media, available as
four 10/100 switched RJ-45 copper ports and two 100Mb switched multi-mode fiber ST,
1 3 5 7
2 6
TX RX
TX LK RX
LK
ACT
F/H
ACT
F/H
10/100
LK
F/H
ACT
1 3 5 7
2 6
TX RX
TX LK RX
LK
ACT
F/H
ACT
F/H
10/100
LK
F/H
ACT
