Magnum 6K32T & 6K32TRC Managed Switch Installation and User Guide 05/07)


55

www GarrettCom com

.

.

Each port has an Activity (ACT) LED indicating packets being received, a

Link (LK) LED indicating proper connectivity with the remote device when lit, and a

FDX/HDX LED indicating full-duplex mode when lit (or half-duplex when off). The

10/100 LED indicates the speed for the copper port, which is 100Mbps when the LED is

ON and 10 Mb when the LED is OFF.

5.2.4a

6KP6-RJ10ST 4 @ 10/100 Mb copper port and 2@10Mbps multi-mode
FL-ST-type, “twist-lock” connector

The Magnum 6KP6-RJ10ST is also a Combo module equipped with 4 dual speed copper

ports and 2 multi-mode 10 Mb fiber ST-type connectors. It provides a combination of

copper and Fiber functions in one module to the 6K32T & 6K32TRC Switches,

supporting four Copper and two 10Mb of ST fiber network segments.

The 6KP6-RJ10ST, when installed in a Magnum 6K32T & 6K32TRC Switch

has copper supporting the 100m distance and Fiber supporting multi-mode fiber cable

allow to connect the legacy network of 10Mb requirement in the network. Each port has

an Activity (ACT) LED indicating packets being received, a Link (LK) LED indicating

proper connectivity with the remote device when lit, and a FDX/HDX LED indicating

full-duplex mode when lit (or half-duplex when off). The 10/100 LED indicates the

speed for the copper port, which is 10Mbps when the LED is ON and 10 Mb when the

LED is OFF.

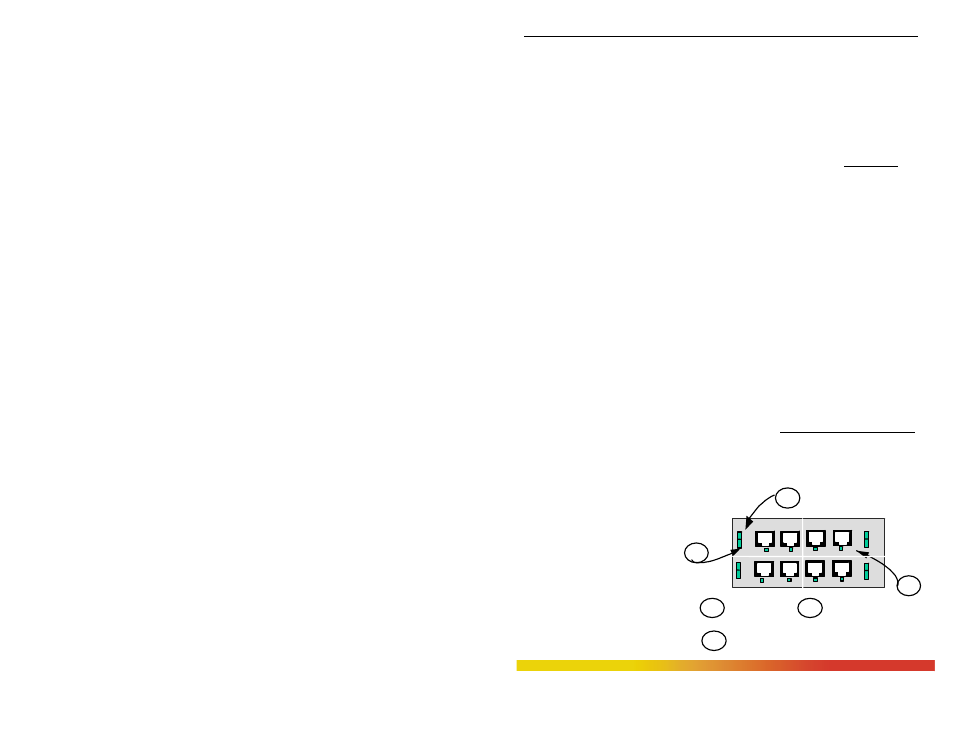

5.2.5 6KP8-MTRJ, 8 @100Mb multi-mode FX , MTRJ Small-Form-factor

Magnum

6KP8-

MTRJ is a multi-mode fiber

optic 8-port module equipped

with a small-form-factor

MTRJ-type connector. It looks

almost like an RJ-45 port, but it

is black in color. The MT-RJ’s

small size and ease of

connection make it a good

choice for 100Mbps “fiber-to-

the-desktop” Ethernet

“small-form-factor”

FULL/HALF

1

ACTIVITY

LINK

2

2

3

3

1 3 5 7

2 4 6 8

LK LK LK LK

ACT

F/H

ACT

F/H

ACT

F/H

1

ACT

F/H

LK LK LK LK

ACT

F/H
ACT

F/H

ACT

F/H

ACT

F/H

6KP8-MTRJ,

8 Port@ 100Mbps Multi-Mode Fiber port
