the PM Face plate card slot securely. These six screws shown in the picture below are
used to secure a PM face plate in position, but unscrew only four of the screws as shown
in Fig. below. These screws are also used to secure the individual 6KPM cards screen
plate which can be subjected to significant forces from the attached cables. (See Figure
3.5.1d)

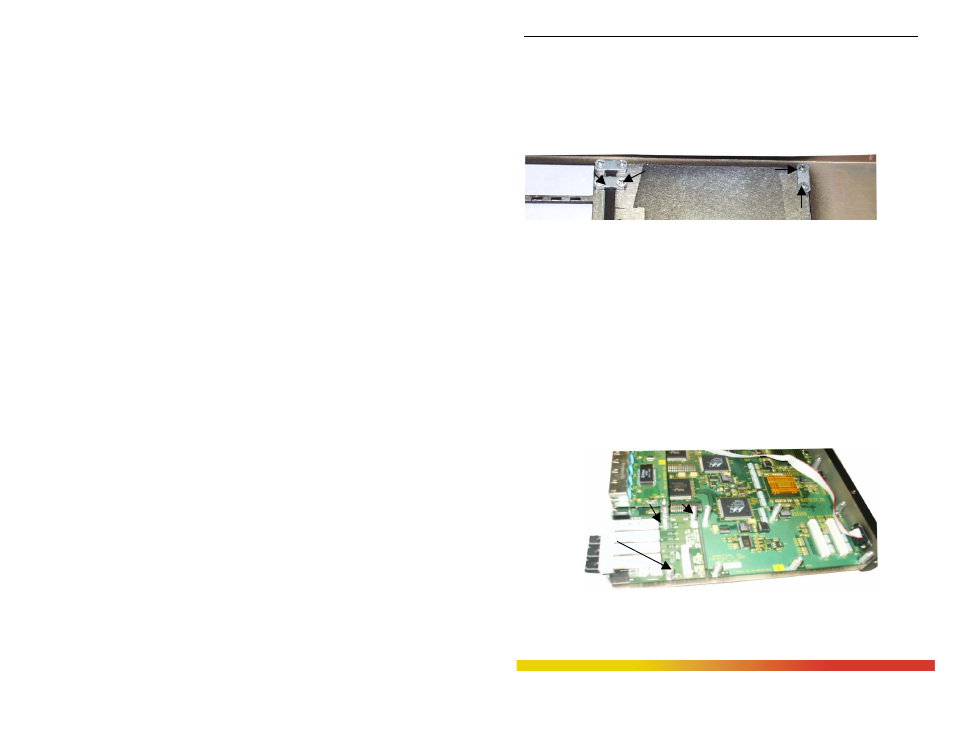

Figure 3.5.1d: Top View – 6KPM retaining screws hold Face Plate
3.5.2 Installing 6KPM Cards in the Magnum 6K32T & 6K32TRC
Up to four front-mounted 6KPM cards may be installed in one Magnum
6K32T & 6K32TRC Managed Switch unit. Follow these steps to install a
6KPM.
Step 1. Remove top chassis cover. See procedure in Section 3.5.1 above.
Step 2. Placed Granddaughter board (as shown in fig. 3.5.2a and 3.5.2b) on the chassis
built in stand off (female) provided at the front of the 6K32T & 6K32TRC Main Board
and screw down tightly with the three 5/16 stand-off (male) on the top of the
Granddaughter board The 5/16 stand off has been used to place the daughter board on the
top of the granddaughter board and latch it securely.
Fig 3.5.2b Granddaughter Board placed in modular slot and secured with three 7/16
stand-off’s as shown with arrow mark
