Magnum 6K32T & 6K32TRC Managed Switch Installation and User Guide 05/07)


13

www GarrettCom com

.

.

2 4 6 8

LK LK LK L

AC

F/H

AC

F/H

ACT

F/H

ACT

F/H

2 4 6 8

LK LK LK L

AC

F/H

AC

F/H

ACT

F/H

ACT

F/H

1 3 5 7

The Magnum 6K32T is preloaded with robust and intuitive MNS-6K Managed

Network Software to handle industry-standard IEEE 802.1p QOS prioritization and non-

blocking wire speed on all ports. It provides high performance switching services for

both “smooth” streaming and “bursty” data traffic. For redundant LANs, it offers S-ring,

RS-Ring, Link-Loss-Learn, STP and RSTP. Security features include SNMPv3,

SSL/SSH, 802.1X, TACACS+, Port Security, and Tagged VLANs. See MNS-6K

materials for further details about software.

The Magnum 6K32T’s port flexibility is achieved via a family of 6K port

modules (6KPM). These modules come with copper and fiber-built-in (emphasizing

Small Form Factor fiber for high fiber port density), 6-port modules for fiber and RJ-45

combinations, and 1Gb or 2Gb port module selections using GBIC transceivers in copper

or fiber. These modules can be factory configured in a base chassis unit (or may be

changed in the field by trained technicians) to adapt the unit to the user’s application and

Ethernet media requirements. Evolving mixed-media requirements for 10Mb and 100Mb

fiber, copper, and Gigabit ports can be easily handled by the Magnum 6K32T &

6K32TRC product reliably

The packaging and power-input options target the Magnum 6K32T &

6K32TRC for heavy-duty applications. The chassis mounting rack style may be

“regular” (with the ports and LEDs in the front and the power input and management

console connector in the rear) or “Reverse” (with the ports and LEDs and the power-

input and the management console connector all in the rear and a duplicate set of LEDs

in the front). Rack widths accommodated include standard 19” RETMA, ETSI, and 23”

Telco. Input power may be AC, or –48VDC for Telco environments, or 24VDC for

Industrial applications.

2.2.2 Eight-port SFF fiber modules (6K8-MTRJ, 6K8-MLC), 100Mb fiber

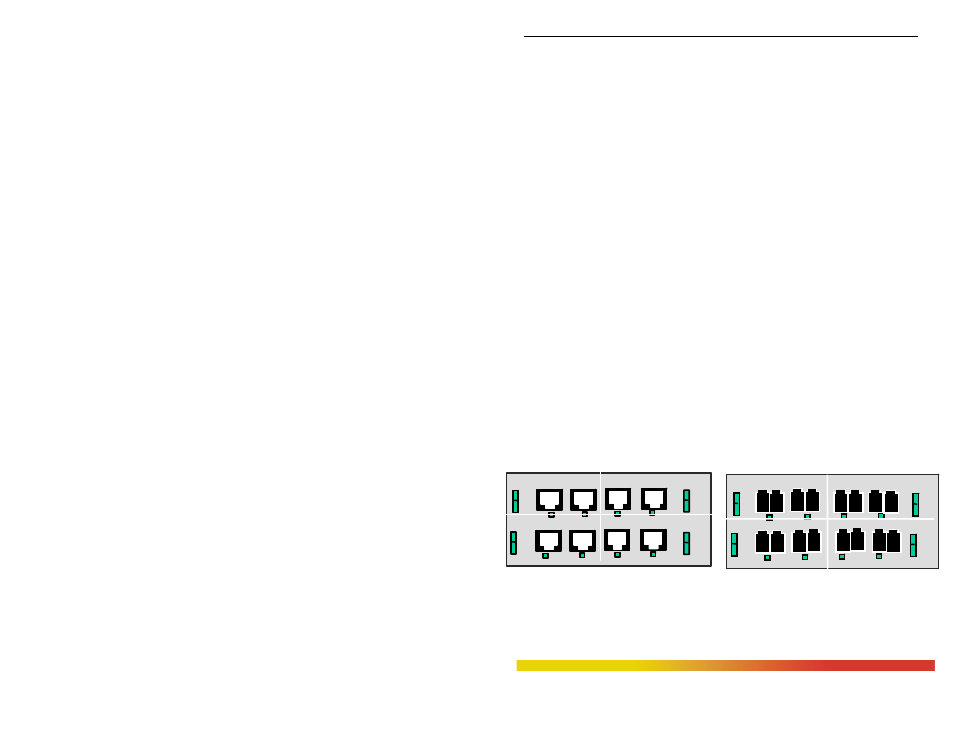

Fig.2.2.2 : SFF Fiber Port Modules, 6K8-MTRJ (to the left) and

6K8-MLC or -SLC (below)

1 3 5 7

2 4 6 8

LK LK LK LK

ACT

F/H

ACT

F/H

ACT

F/H

ACT

F/H

LK LK LK LK

ACT

F/H
ACT

F/H

ACT

F/H

ACT

F/H
