Magnum 6K32T & 6K32TRC Managed Switch Installation and User Guide 05/07)
15
www GarrettCom com . .
On the model 6K8-RJ45 module, there are four LEDs for each port, two in the
connector and two separate. The LK (Link) LED indicates “ready for operation” on that
port when lit. The blinking ACT (Activity) LED indicates receiving Activity on that port
when lit. The 10/100 LED indicates operation at 100Mb speed when ON and at 10 Mb
speed when OFF (when auto-
negotiation is not disabled).
The FDX/HDX LED is ON to
indicate full-duplex operation
and OFF to indicate half-
duplex mode. A twisted pair
cable must be connected into
an RJ-45 port and the Link (LK) indicator for that port must be ON (indicating there is a
powered-up device at the other end of the cable) in order for a LK LED to provide valid
indications of operating conditions on that port.
Using the 6K8-Series (MNS-6K) management software, the user may disable
auto-negotiation and fix the desired operation of each RJ-45 port. User may select 10Mb
or 100Mb speed and full- or half-duplex mode per-port as per user requirement. (See
Magnum MNS-6K Software Manual for details info.).
2.2.3a
New PoE(Power Inside), model PI6KP8-45RJ (MDIX), 8-port 10/100Mb
The New PoE RJ-45
ports act similar to
regular RJ-45 ports,
except they have
capability of providing
power on each port to
power up the PD
devices, per the
IEEE802.3af PoE
standard. Only 4 x RJ-
45 (10/100) ports
maxm. support POE(Power Inside) option in one rack mounted 6K-unit. The power
inside PoE option is factory configured and equipped with the necesasary power option
to support four 802.3af PoE pd devices. The 4-RJ45 POE module are also available with
mix –n-match with fiber modules. Please check the ordering information Sec.1.2. for all
the various PI6K PoE modules option.

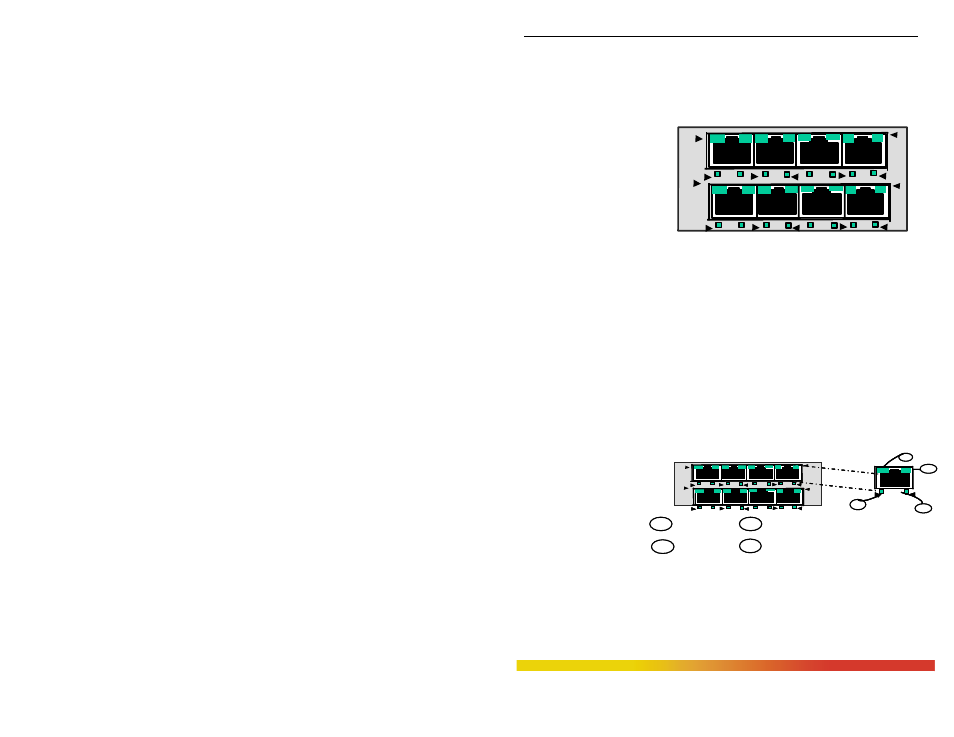

The LEDs on 6KP8-RJ45- PoE module are slightly different compared to
regular (non-PoE) RJ-45 modules as shown in Fig 2. When the PoE port is in use, the
1 3 5 7
10/100 LK
F/H ACT
10/100 LK
2 4 6 8
F/ H ACT
PI6KP8V-45RJ
8 Port@ 10/100Mb POE Copper ports
4
4 FULL/HALF
1
PoE
LK/ACT 2
3
10/100
2
1 3 5
7
10/10
0 LK/ACT 1
3 F/H PO
E
10/10
0 LK/ACT
2 4 6
8
F/
H PO
E
PI6KP8V-45RJ
8 Port@ 10/100Mb POE Copper ports
4
4 FULL/HALF
1
PoE
LK/ACT 2
3
10/100
2
1 3 5
7
10/10
0 LK/ACT 1
3 F/H PO
E
10/10
0 LK/ACT
2 4 6
8
F/
H PO
E
