Magnum 6K32T & 6K32TRC Managed Switch Installation and User Guide 05/07)
54
www GarrettCom com . .
5.2.3
6KP6-RJSSC 4@ 10/100Mbps RJ-45 Ports and 2@100Mbps single-mode
FX-SC-type,
“snap-in”
connector

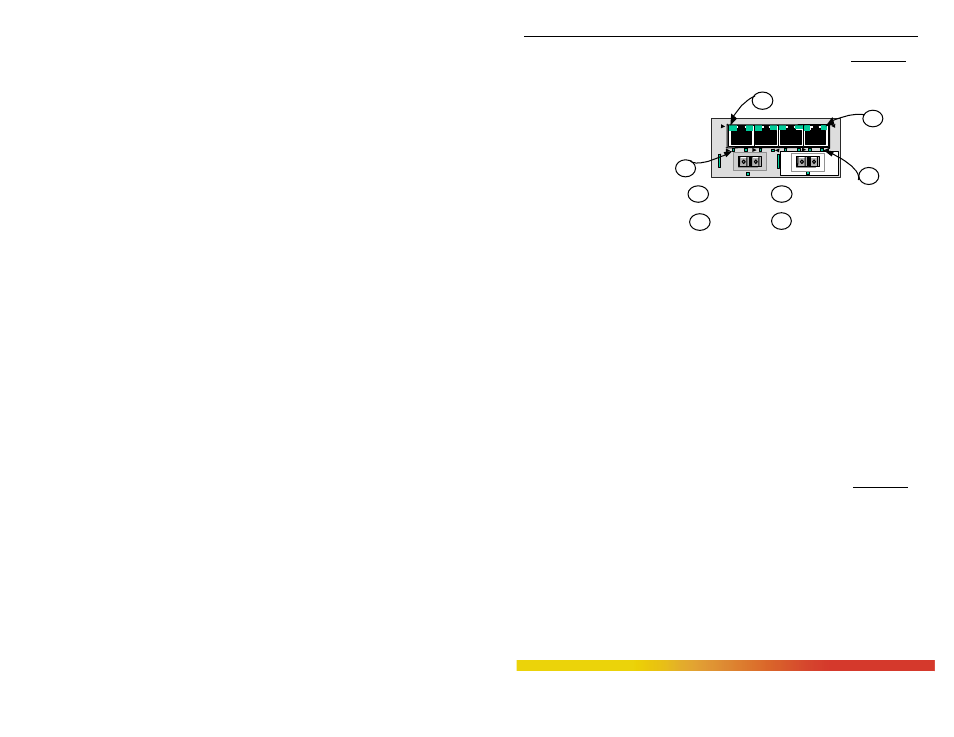

The Magnum 6KP6-RJSSC
is also a Combo module
equipped with 4 dual speed
copper ports and 2 Single-
mode SC-type connectors. It
provides an advantage
through combining copper
and Fiber functions in one module of the 6K32T & 6K32TRC Switch supporting four
Copper and two single-mode fiber network segments.
The 6KP6-RJSSC, when installed in a Magnum 6K32T & 6K32TRC Switch
operates on copper at the 100m distance. The Fiber is single-mode and cable lengths can
be as much as 25+ Km (see Power Budget, Section 4.5)
Each port has an Activity (ACT) LED indicating packets being received, a
Link (LK) LED that indicates proper connectivity with the remote device when lit, and a
FDX/HDX LED to indicate full-duplex mode when lit (or half-duplex when off). The
10/100 LED indicates 100Mbps speed when lit and 10Mbps speed when off. To
distinguish the single-mode 6 K6-RJSSC from the multi-mode 6K6-RJMSC, the label
“Sgl. M.” is at the top of the faceplate of the 6K6-RJSSC.
5.2.4 6KP6-RJSSCL 4 @ 10/100 Mb copper port and 2@100Mbps single-mode
FX-SC-type, “snap-in” connector
The Magnum 6KP6-RJSSC is also a Combo module equipped with 4 dual speed copper
ports and 2 Single-mode (Long Reach) SC-type connectors. It provides a combination of
copper and Fiber functions in one module to the 6K32T & 6K32TRC Switches,
supporting four Copper and two single-mode (Long-Reach) fiber network segments.
The 6KP6-RJSSC, when installed in a Magnum 6K32T & 6K32TRC Switch
has copper supporting the 100m distance and Fiber supporting single-mode fiber cable
lengths of as much as 40+ Km (see Power Budget, Section 4.5)
6KP6-RJMSSC,
4 Port@ 10/100Mbps and 2 @100 Mb SSC Fiber Port
4 FULL/HALF
1
ACTIVITY
LINK 2
4
3
3
10/100
1 3 5 7
2 6 TX RX TX LK RX LK
ACT
F/H
ACT
F/H
10/100 LK
F/H ACT
2
1
