Magnum 6K32T & 6K32TRC Managed Switch Installation and User Guide 05/07)
51
www GarrettCom com
.
.
5.2.1
6KP6-RJMST, 4@10/100Mbps RJ-45 and 2@100Mb multi-mode
FX-ST “twist
lock” Combo
Module
The Magnum 6KP6-
RJMST is a combo 6 port
module of RJ-45’s at
10/100Mbps and fiber optic
ports at 100MB. The Combo
module is equipped with dual-
mode ST-type connectors and
dual speed copper ports. The ST-connector functions as a fiber optic transceiver to
support 100BASE-FX network segments. When installed in a Magnum 6K32T &
6K32TRC Managed Switch, the copper port supports the standard distance 100m on each
port and the fiber port supports fiber optic cable distances up the IEEE-standard
100Mbps distance limits, i.e., typically 2km at full-duplex and 412m at half-duplex.
Each port has an Activity (ACT) LED indicating packets being received, a
Link (LK) LED that indicates proper connectivity with the remote device when lit, and
FDX/HDX LED to indicate full-duplex mode when lit (or half-duplex when off). The
10/100 LED indicates the speed, if the LED is ON 100Mbps if it is OFF 10Mbps.
5.2.1a 6KP6-RJ10ST, 4@10/100Mbps RJ-45 and 2@10Mb multi-mode
FX-ST “twist lock” Combo Module
The 6KP6-RJ10ST is a six port combo module that looks similar to
the 100Mb combo module with the exception of 10Mb speed at the ST fiber module.
The ST-connector functions as a fiber optic transceiver to support 10BASE-FX network
segments. When installed in a Magnum 6K32T & 6K32TRC Managed Switch, the
copper port supports the standard distance 100m on each port and the fiber port supports
fiber optic cable distances up the IEEE-standard 10Mbps distance limits, i.e., typically
2km at full-duplex and half-duplex.
Each port has an Activity (ACT) LED indicating packets being received, a
Link (LK) LED that indicates proper connectivity with the remote device when lit, and
FDX/HDX LED to indicate full-duplex mode when lit (or half-duplex when off). The
10/100 LED indicates the speed, if the LED is ON, 100Mbps if it is OFF, 10Mbps.
4
FULL/HALF
1
ACTIVITY
LINK
2
4
3
3
10/100
1 3 5 7
2 6
TX RX
TX
LK RX
LK
ACT
F/H
ACT
F/H
10/100
LK
F/H
ACT
2
1

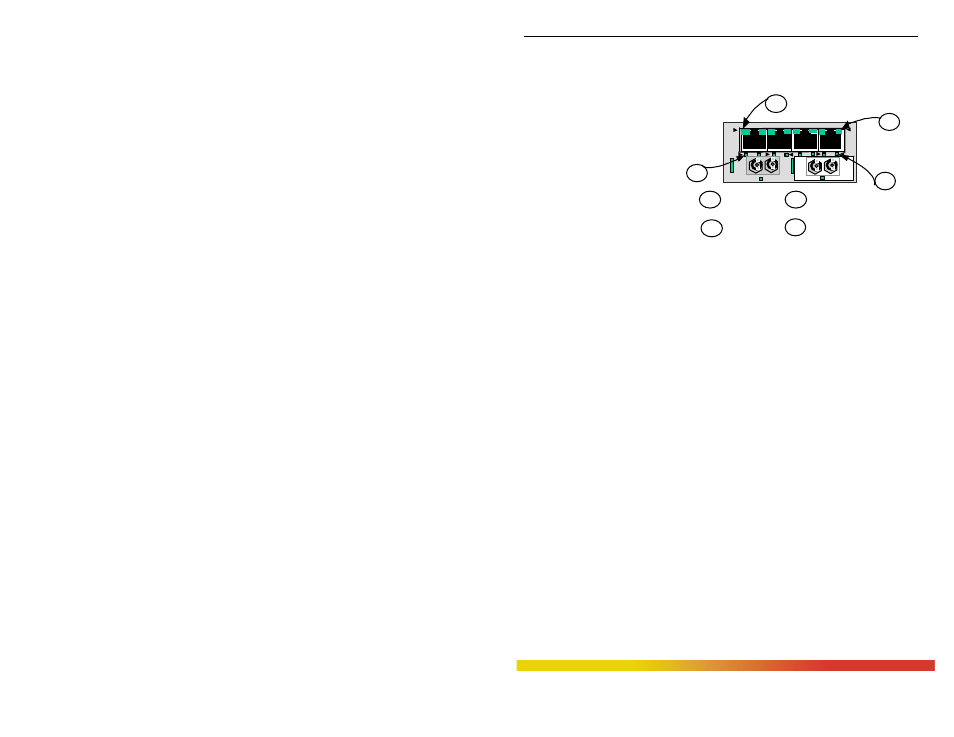

6KP6-RJMST,
4 Port@ 10/100Mbps and 2 @100 Mb ST Fiber Port
