page | 30
Advanced Operation

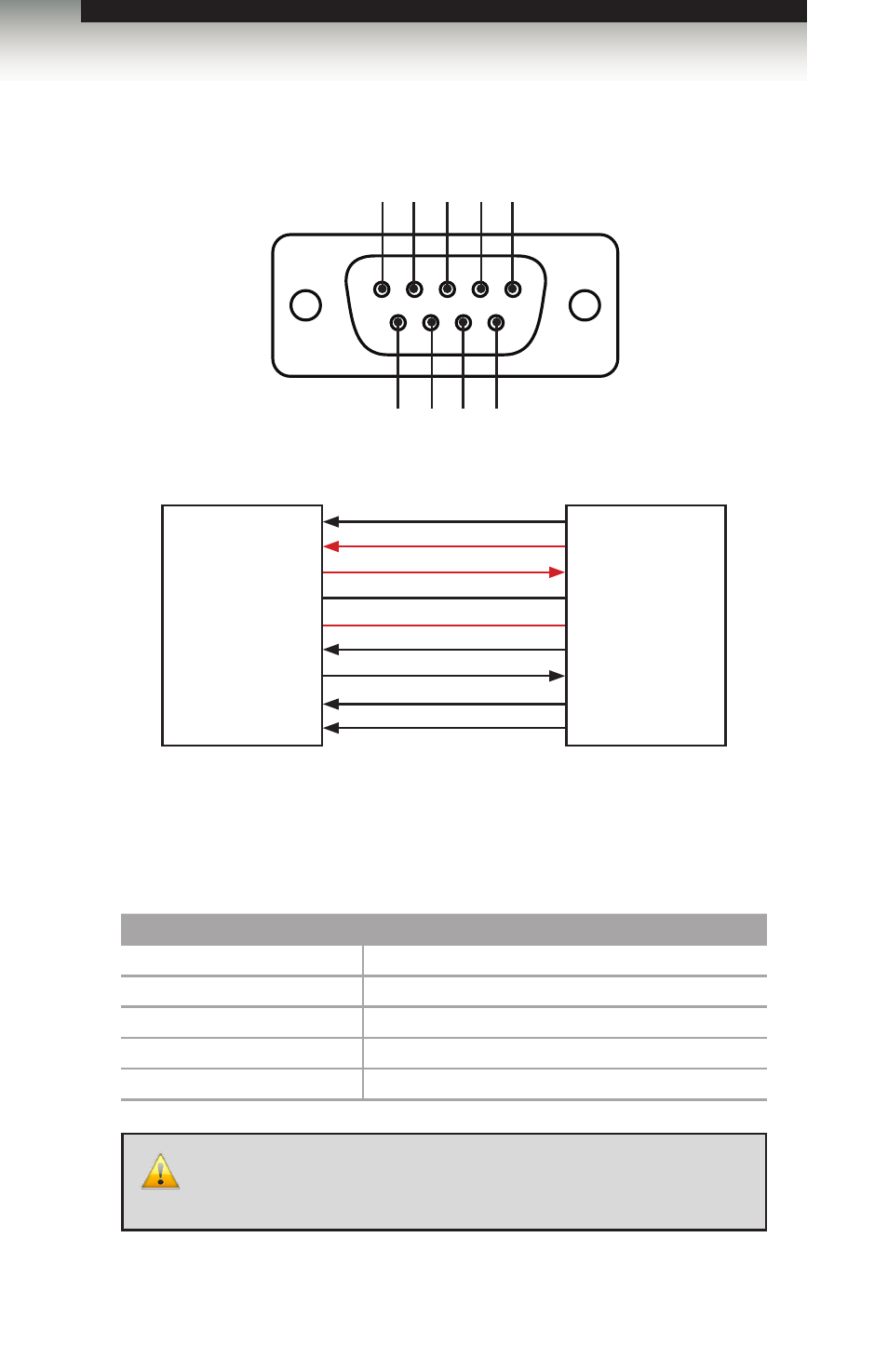

RS-232 and IP Configuration
RS-232 Interface
Only TXD, RXD, and GND are used.
RS232 Settings
Description
Setting
Baud rate
19200
Data bits
8
Parity
None
Stop bits
1
Hardware flow control
None
IMPORTANT: When sending RS-232 commands, a carriage return
must be included at the end of the command. A space must be
included between the command and the parameter.
DA-15
DE-9
DB-25
DC-37
DD-50
5
6
4
7
3
8
2
9
1
DCD
RXD
TXD
DTR
GND
DSR
RTS
CTS
R1
DCD
RXD
TXD
DTR
GND
DSR
RTS
CTS
R1
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
RS-232 Controller
Matrix
