Routing Basics
Operating the 16x16 3G-SDI Matrix w/ Push Button Controls

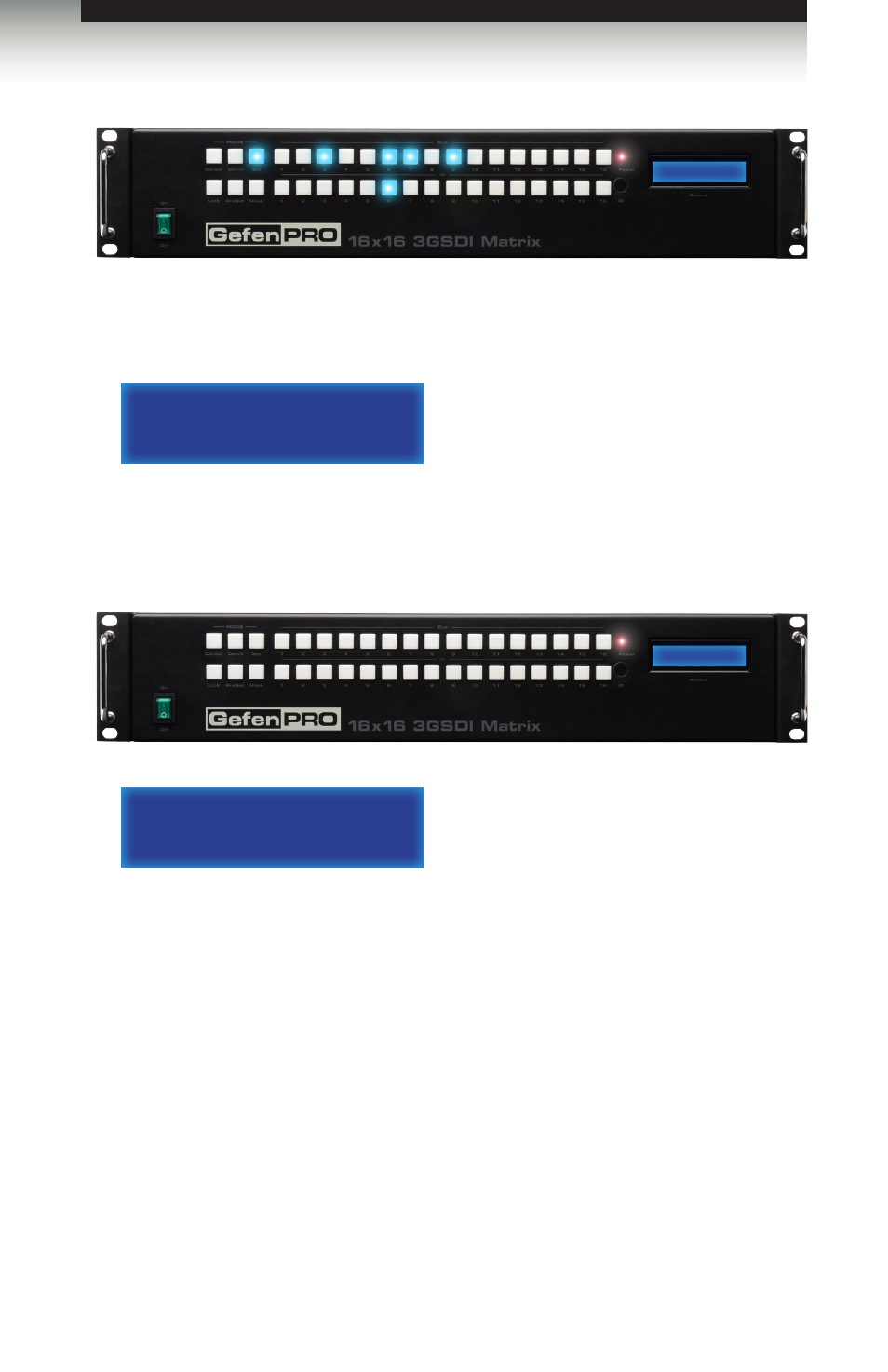

5. Press the Set button on the front panel, once again. Pressing the Set button again
tells the matrix that we have completed the routing operation. Once the Set button
has been pressed, the LCD will indicate that the routing process has been completed.
6. After a few moments, the selected buttons on the front panel will turn off and the LCD
will return to the Home screen.
ROUTING COMPLETE
GEFEN
3GSDI 16x16
ROUTING MODE
GEFEN
3GSDI 16x16
