Operating the 16x16 3G-SDI Matrix w/ Push Button Controls
Routing Inputs to Outputs

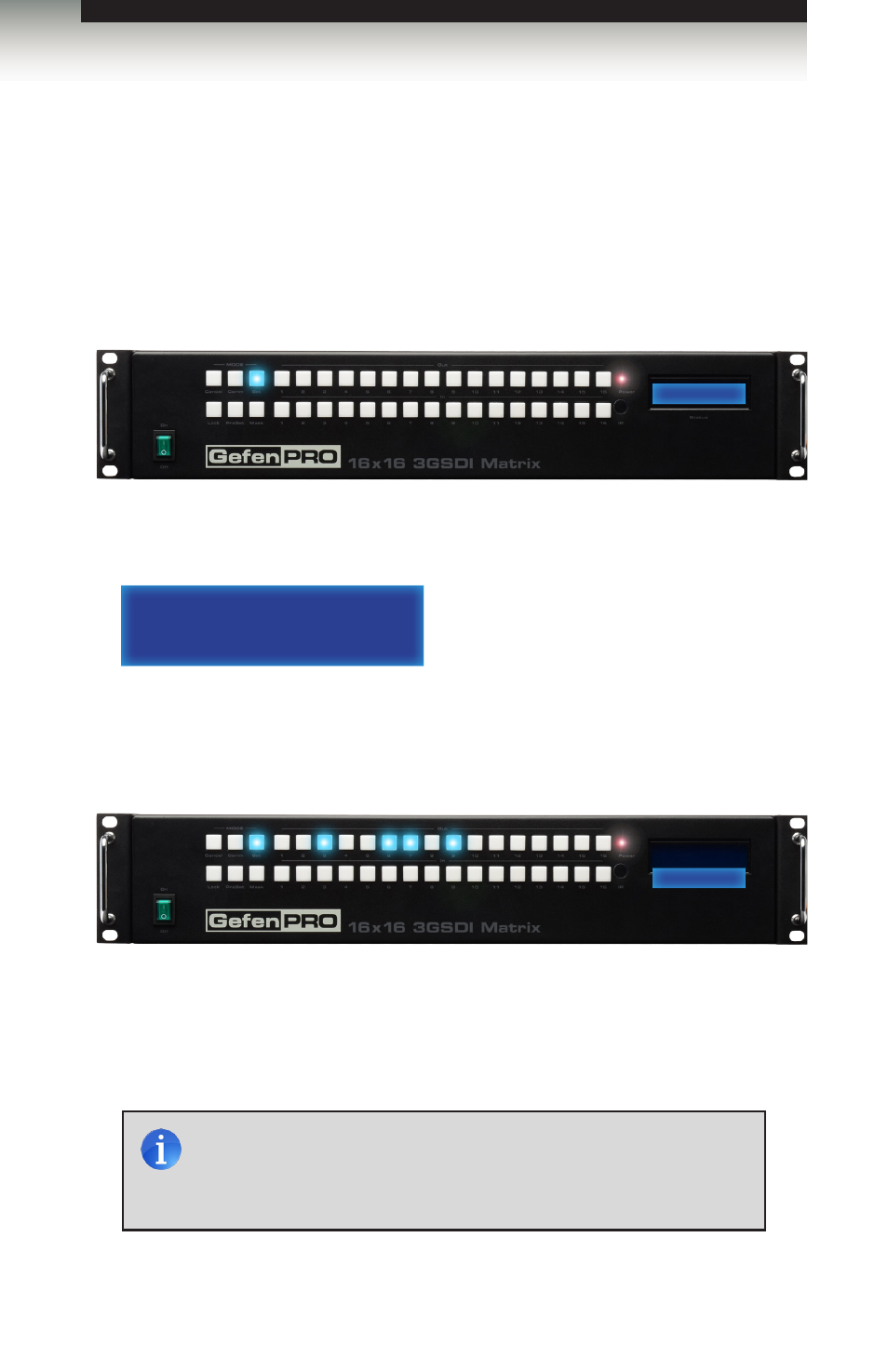

The following example illustrates the routing process. An input may be routed to a single
or multiple outputs. Multiple inputs cannot be routed to a single output.
1. Press the Set button on the front panel. Pressing the Set button tells the matrix that
we want to perform a routing, masking, or preset operation. The Set button will glow
bright blue, indicating that it has been pressed.
2. The LCD on the front panel will indicate that routing mode is active.
3. Press the desired output button(s) (A1 - A16). For this example, we will route the
input (covered in the next step) to multiple outputs: Output 3, Output 6, Output 7,
and Output 9. Press buttons A3, A6, A7, and A9. The selected buttons will glow
bright blue.
4. Select the desired input (source) button (A1 - B8). For this example, we want to route
the source connected to Input 6 to each of the outputs in step 3. Therefore, press
button A6 on the bottom row. The selected input will glow bright blue.
ROUTING MODE
Routing Basics
NOTE: Only one input can be routed at a time. If the wrong input
button is accidentally pressed, then continue by pressing the
correct input button. The previous input button will automatically be
deselected.
ROUTING MODE
ROUTING MODE
