page | 22

Masking

Operating the 16x16 3G-SDI Matrix w/ Push Button Controls

Unmasking Outputs

Once an output (or multiple outputs) has been masked, it can be unmasked.

Unmasking an output will allow the video signal to be displayed after a masking operation.

We’ll continue with our previous example and unmask Output 6 and Output 7.

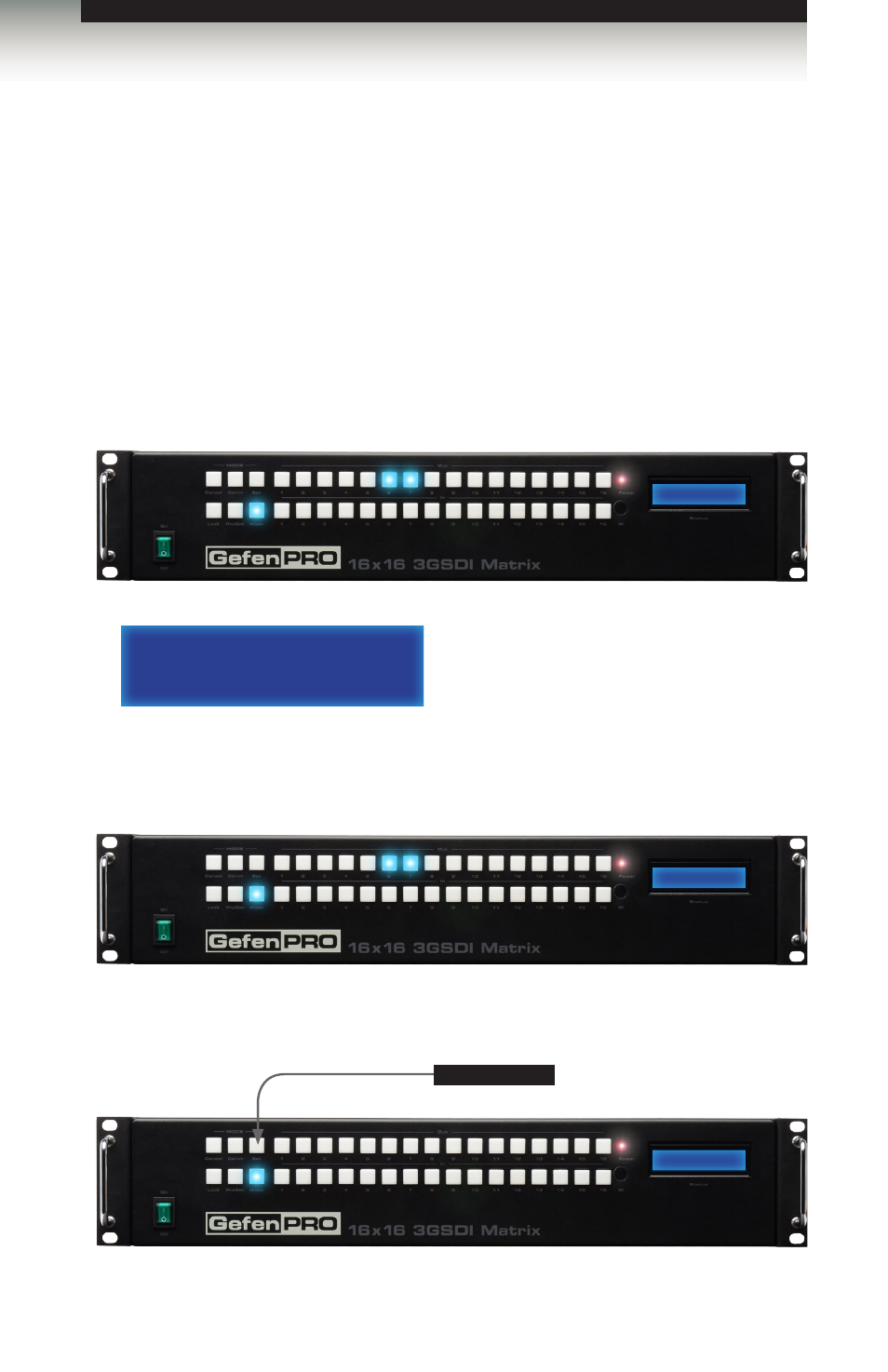

1. Press the

Mask button. The Mask button will glow bright blue and the LCD will

indicate that the matrix is in mask mode.

Once the mask button is pressed, any outputs that have been masked will be

indicated on the front panel.

2. To unmask an output, press the desired output(s). In our case, we will select both

Output 6 and Output 7. Each button will turn off as it is pressed.

3. Press the

Set button. The Set button will flash momentarily.

MASK MODE

Set button
