page | 14
Getting the Current Routing Status
To display the current routing status of the Matrix, press any one of the Input or Output
buttons on the front panel.
From our previous routing example, we already know that Input 6 is routed to Output 3, 6,
7, and 9. However, let’s use this to illustrate how to retrieve the current routing status of an
input or output.
Outputs to Inputs

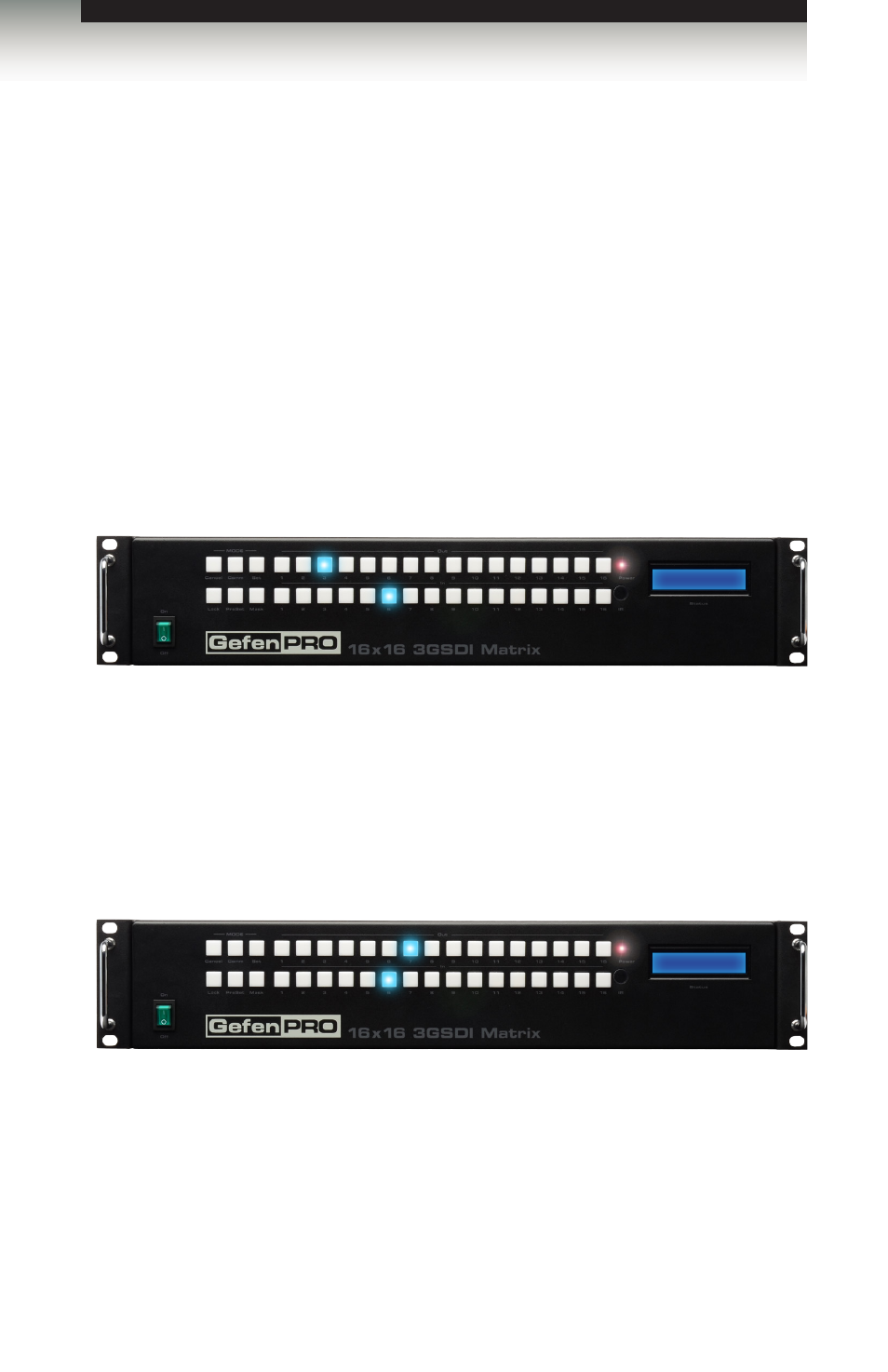

1. Press the button A3 on the top row of buttons.
When we pressed A3 (on the top row), button A6 on the bottom row was also se-
lected. This tells us that Input 6 has been routed to Output 3.
2. Now, press button A7 on the top row of buttons.
We can see that Output 7 is also connected (routed) to Input 6. This agrees with our
previous routing example.
If button A6 or A9 is pressed, Input 6 will also be associated with Output 6 and
Output 9.
Routing Basics
Operating the 16x16 3G-SDI Matrix w/ Push Button Controls
