Recalling a Saved Routing State
The 16x16 3G-SDI Matrix w/ Push Button Controls allows saved routing (and masking)
states to be recalled from memory for instant access.
In this example, we will recall the routing preset that we stored in the previous example.
In order to clearly see how the recall-process works, try changing the routing state of
Input 6 to Output 2. Then, use the steps below to recall the original routing state.
See Routing Inputs to Outputs , if necessary.

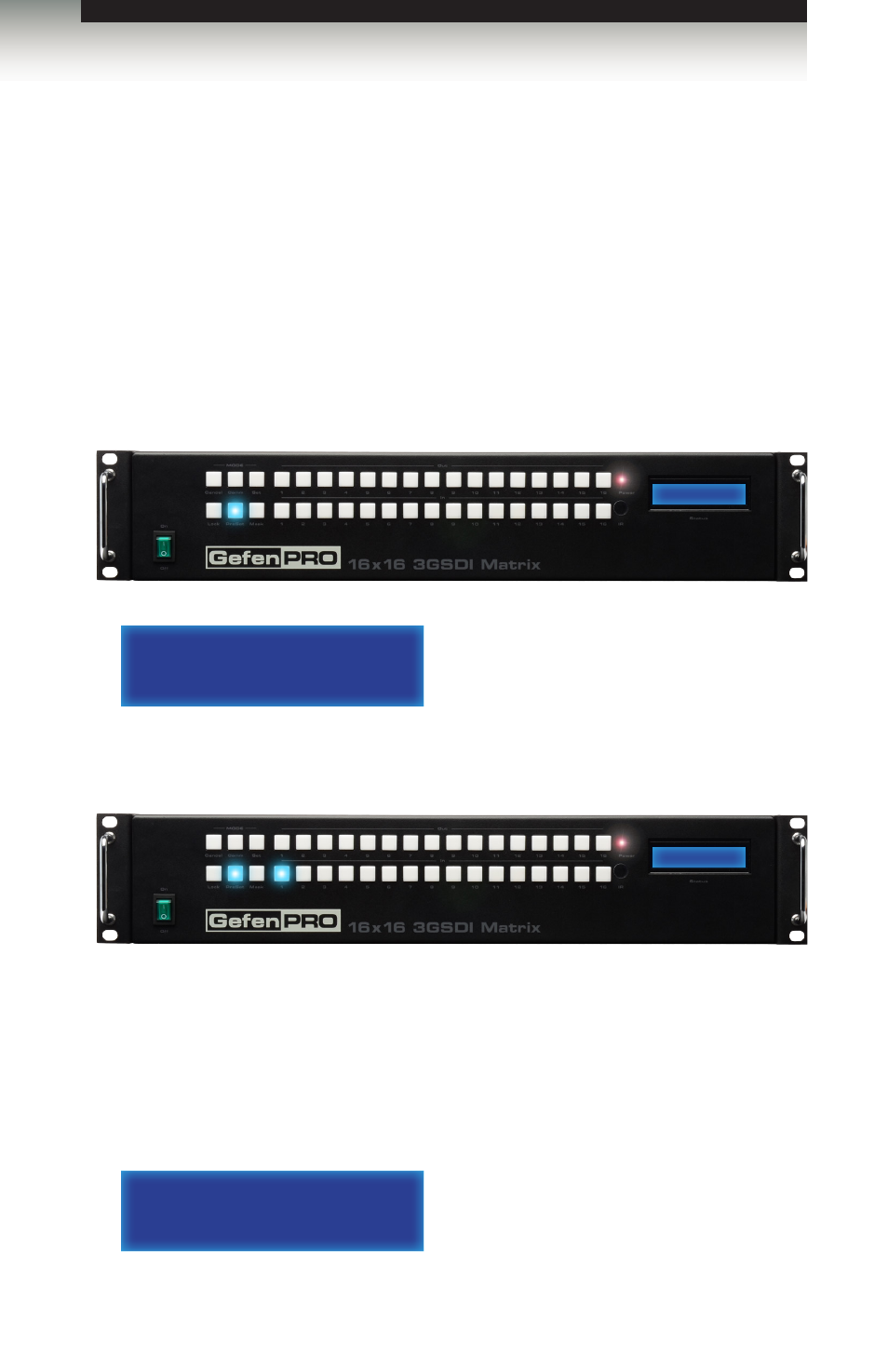

1. Press the PreSet button, once. The LCD will indicate that the matrix is in
recall preset mode.
2. Since we stored our preset in Preset 1, press Input 1 to recall the routing state.
3. Press the Set button to recall the routing state from the selected location.
The Set button will flash momentarily.
4. After a few moments, the selected buttons will turn off and the LCD will return to the
Home screen.
Routing Basics
Operating the 16x16 3G-SDI Matrix w/ Push Button Controls
PRESET MODE
RECALL SAVED SET
GEFEN
3GSDI 16x16
PRESET MODE
RECALL SAVED SET
PRESET MODE
RECALL SAVED SET
