Masking Outputs
“Masking” prevents the output device (display, etc) from receiving an output signal.
Instead of powering-down or disconnecting the output device, individual or multiple
outputs can be masked.
To illustrate masking, we’ll use our original routing example from
.

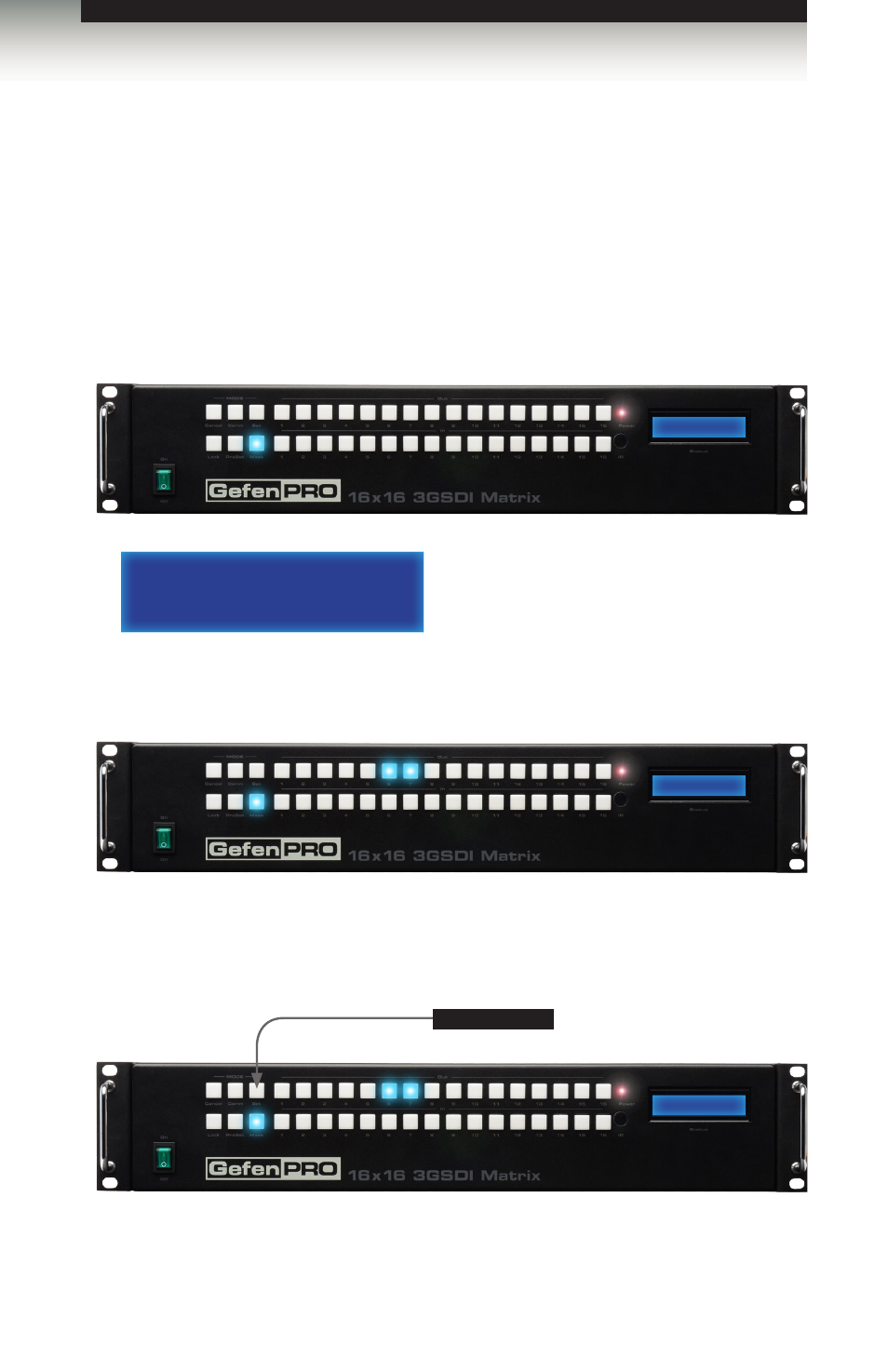

1. Press the
Mask button. The Mask button will glow bright blue and the LCD will
indicate that the matrix is in mask mode.
2. Select the desired outputs to be masked. In this example, we will select Output 6
and Output 7.
3. Press the
Set button to mask the selected outputs. The Set button will flash
momentarily.
MASK MODE
MASK MODE
MASK MODE
Operating the 16x16 3G-SDI Matrix w/ Push Button Controls
MASK MODE
Masking
Set button
