page | 15
Inputs to Outputs

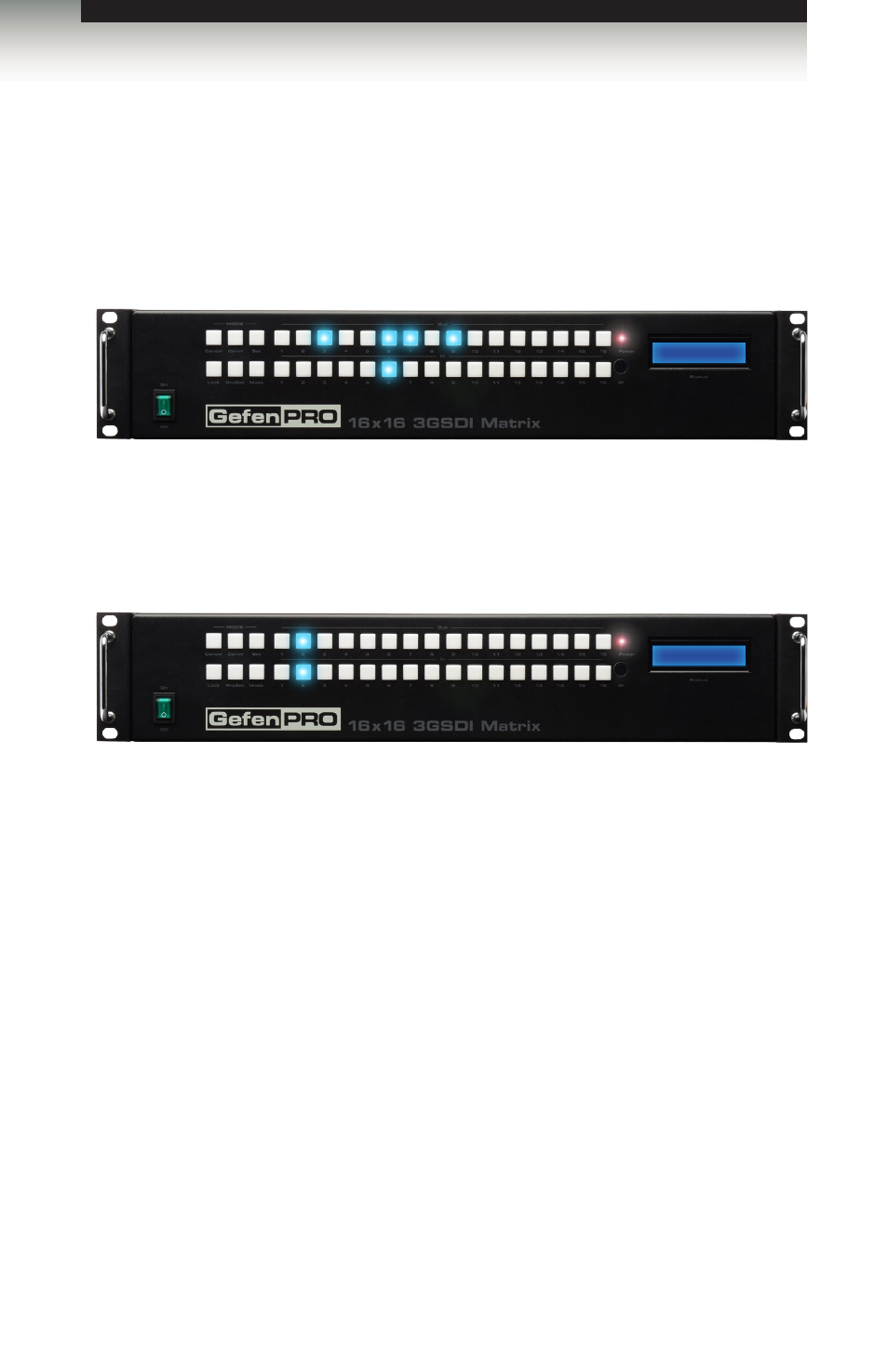

1. Press the A6 button on the bottom row of buttons.
By querying an input, all Outputs that are connected (routed) to the input are
displayed:
2. Now, press another Input button on the matrix. We will arbitrarily select Input 2
(button A2).
In the example above, we can see that Input 2 is routed to Output 2. This is called
“one-to-one” routing. We could have achieved the same result by pressing Output 2.
One-to-One Routing
When an input-output pair share the same number, it is called “one-to-one” routing.
By default, the 16x16 3G-SDI Matrix w/ Push Button Controls is shipped in “one-to-one”
mode. This means that Input 1 is routed to Output 1, Input 2 is routed to Output 2, and so
on.
Routing Basics
Operating the 16x16 3G-SDI Matrix w/ Push Button Controls
GEFEN
3GSDI 16x16
GEFEN
3GSDI 16x16
