Operating the 16x16 3G-SDI Matrix w/ Push Button Controls

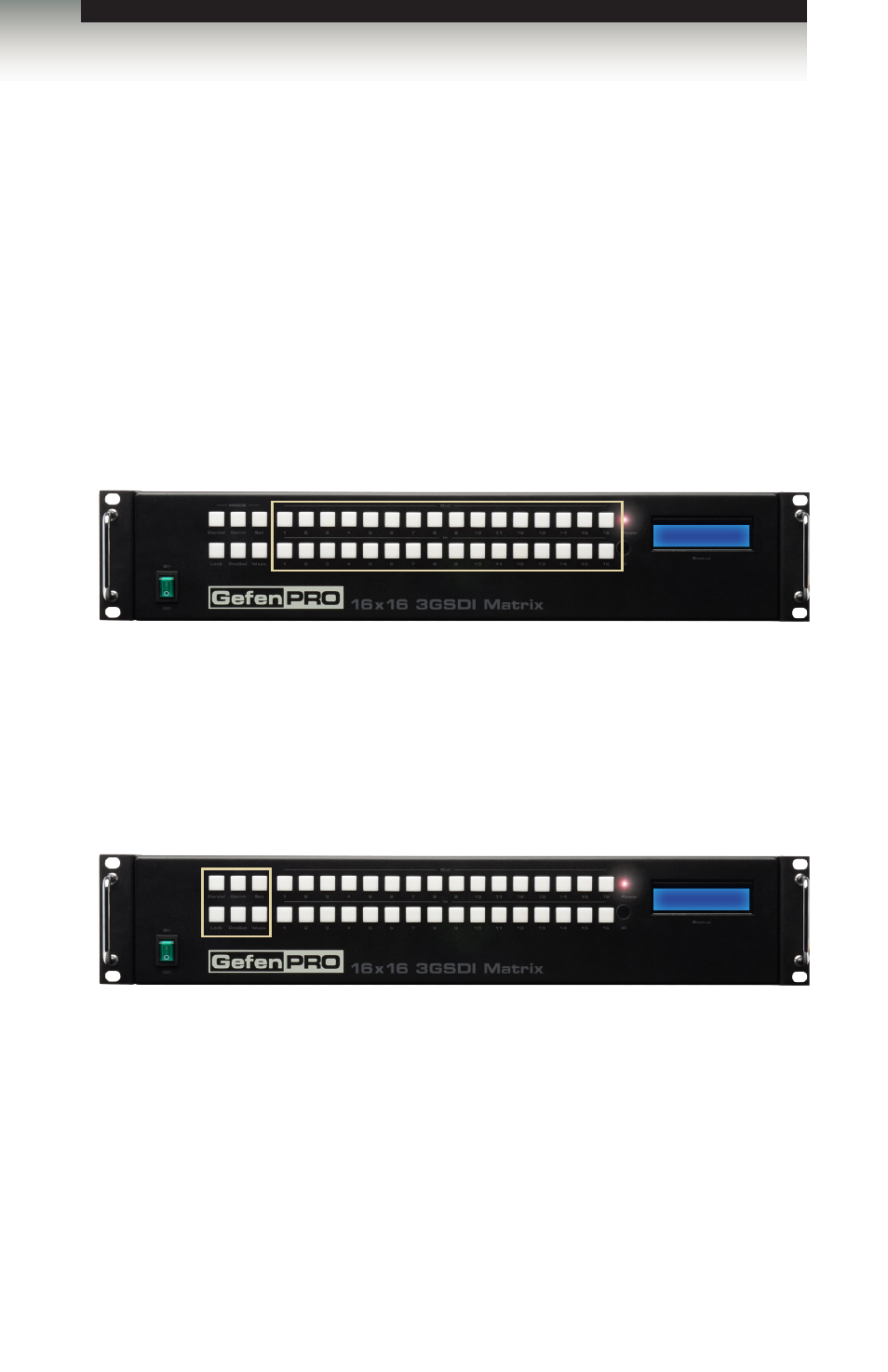

Front Panel Buttons
There are a total of 38 buttons on the front panel of the matrix. These buttons are grouped
according to their function.
Out and In
The Out and In buttons comprise the largest group of buttons. The top row of 16 buttons
represent each output. The bottom row of 16 buttons represent each input.
For example, button 1 on the top row represents Output 1, button 2 represents Output 2,
and so on. The input buttons on the bottom row are arranged in a similar fashion: Button 1
on the bottom row represents Input 1, button A2 represents Input 2, and so on.
Mode
The Mode buttons are used to control various other functions on the matrix such as output
masking and loading / storing of routing presets.
GEFEN
3GSDI 16x16
GEFEN
3GSDI 16x16
Front Panel Controls
