Routing Sources using the IR Remote Control
The included IR Remote Control unit provides discrete routing between each input and
output.The IR remote control unit consists of 16 buttons. Each button represents an
input / output.
Let’s look at an example: Route Input 3 to Output 7
1. Point the IR remote control at the IR sensor on the front panel of the matrix.
2. First, select the output by pressing button 7 on the IR remote control unit. Button A7,
on the front panel, will glow bright blue to indicate that Output 7 has been selected.
The front panel LCD will indicate that the matrix is in routing mode:
3. Press the desired input. In this example, we want to route Output 7 to Input 3.
Therefore, we’ll press button 3 on the IR remote control.

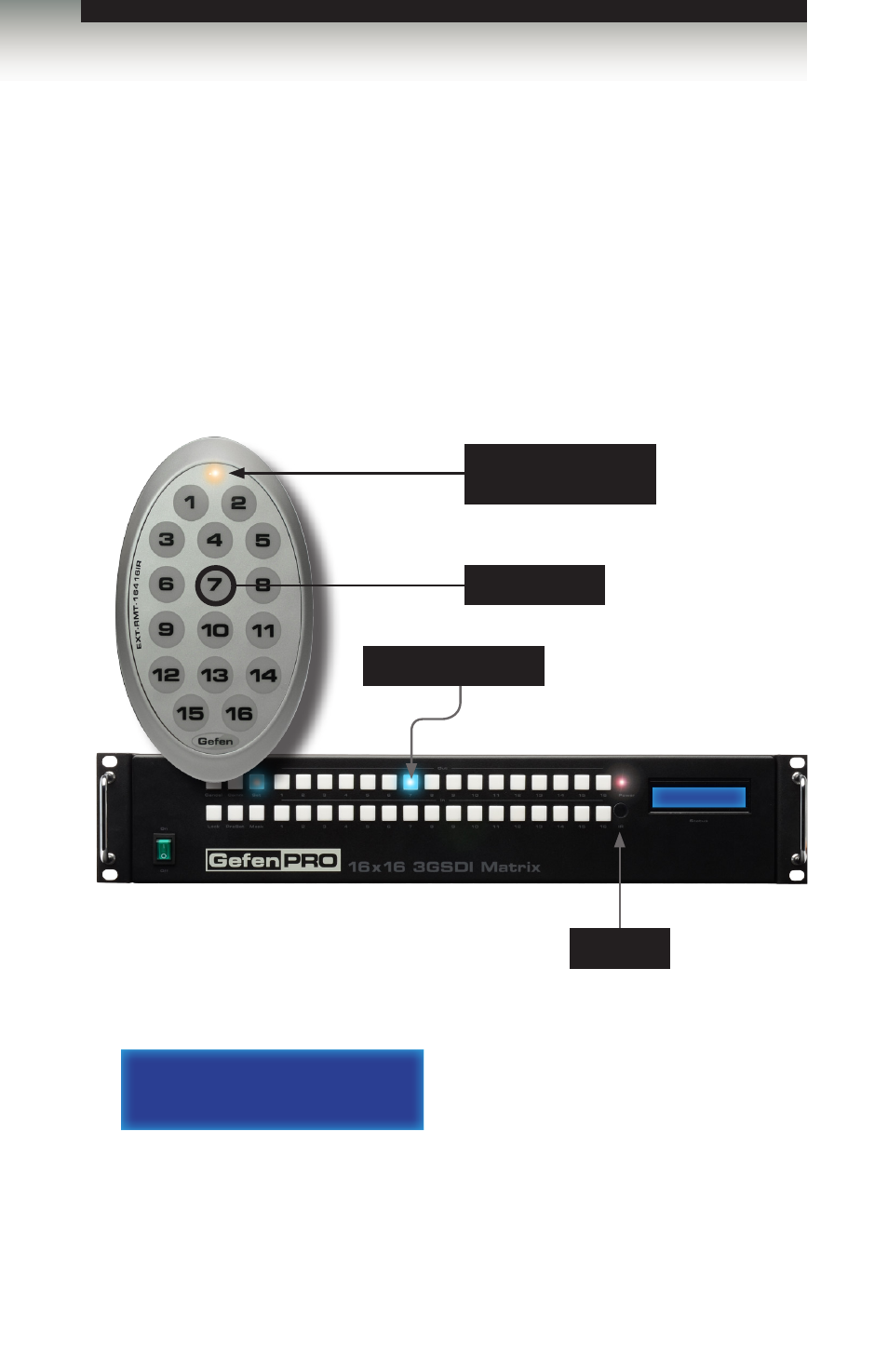

Operating the 16x16 3G-SDI Matrix w/ Push Button Controls
Using the IR Remote Control
ROUTING MODE
routing mode
LED indicates a
button was pressed
Press button 7
IR sensor
Output 7 selected
