Connecting the 16x16 3G-SDI Matrix
1. Connect up to 16 3G-SDI source devices to the 3G-SDI inputs on the rear panel of the
16x16 3GSDI Push Button Matrix using SDI cables.
2. Connect up to 16 3G-SDI displays to the 3G-SDI outputs on the rear panel of the
16x16 3GSDI Push Button Matrix.
3. Connect the included power cord to the power input receptacle on the rear panel of
the 16x16 3GSDI Push Button Matrix. Connect the opposite end of the cable into a
open wall power socket.

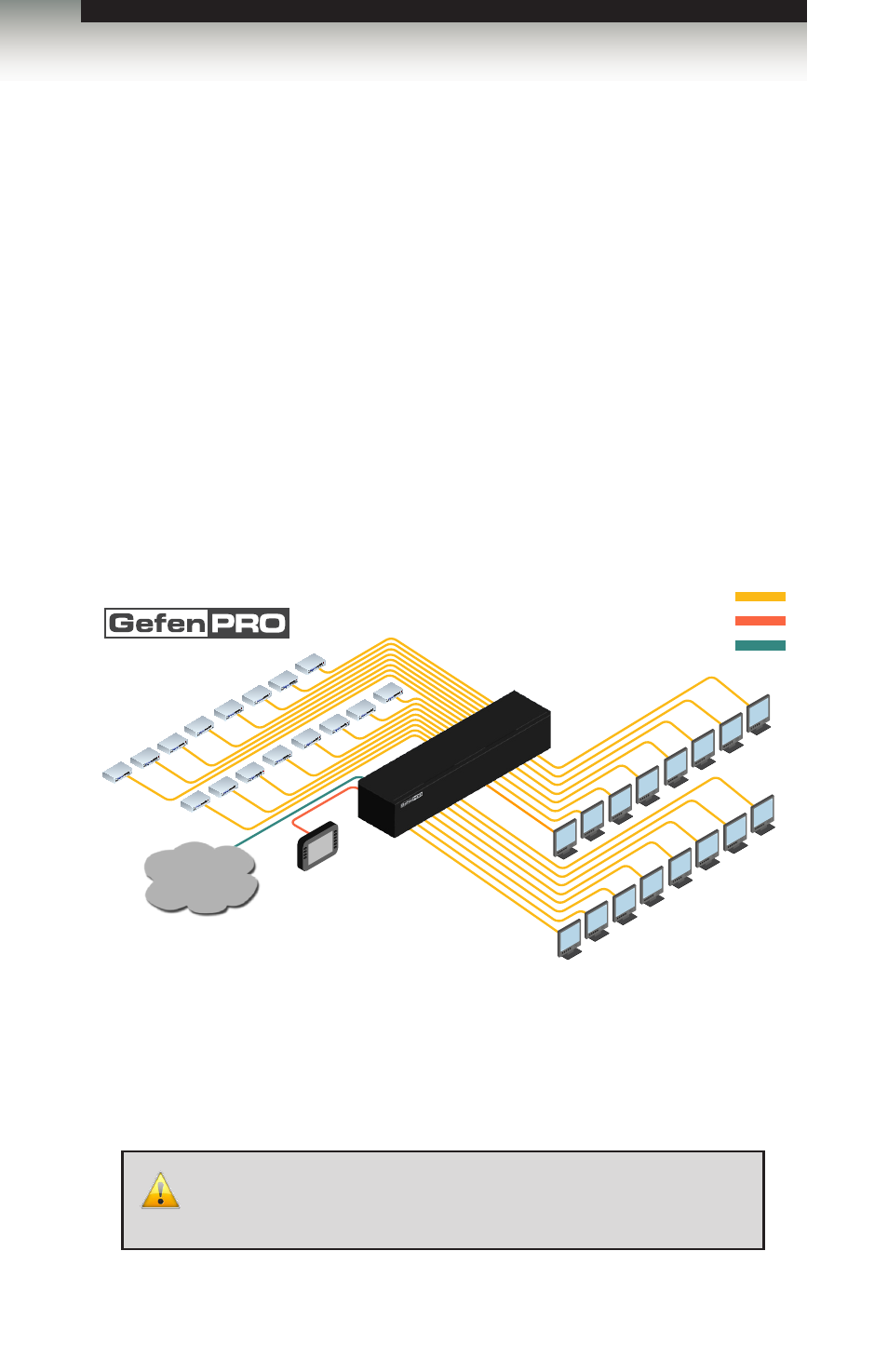

Sample Wiring Diagram
WARNING: Both power supplies should always be connected to a
grounded electrical AC outlets. It is recommended that each power
supply be connected to outlets on separate circuits.
GEF-3GSDI-16416-PB
3G-SDI Displays
SDI CABLE
16x
3G-SDI Sources
16x
Matrix
RS-232 Controller
RS-232 CABLE
ETHERNET CABLE
IP Control
