Replacing system fans www.gateway.com
47

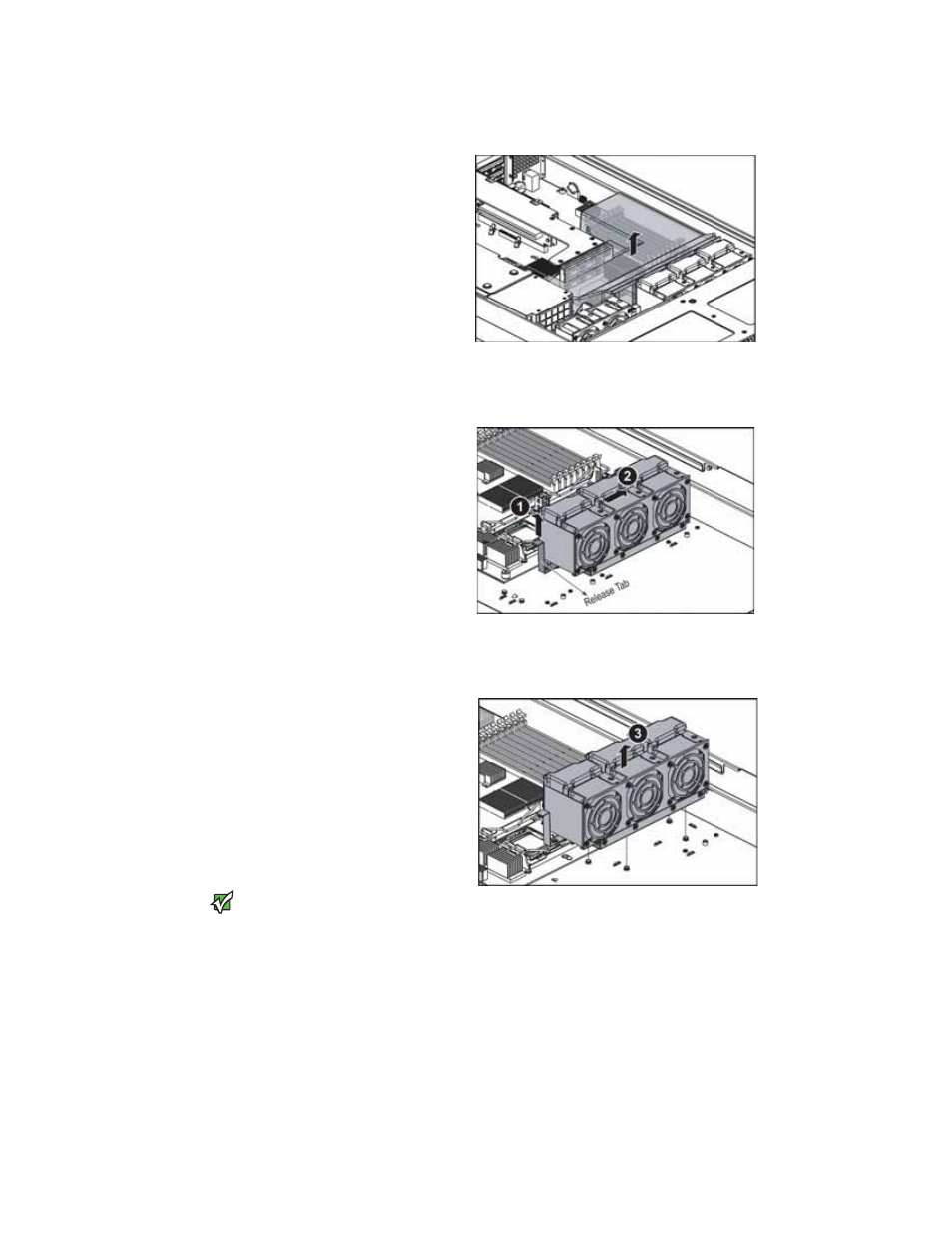

3 Remove the fan duct by lifting it out of the chassis.
4 Lift the release tab (1) (similar on both fan cages), then push the fan cage
in the direction of the arrow (2) to unlock it from the chassis.
5 Lift the fan cage (3) and unplug the connectors from it, then remove the
cage from the chassis.
Important
Make sure that the arrows on top of the
fans indicating airflow point to the back
of the chassis.
6 Install system fans as necessary in the new system fan cage.
7 Connect the cables you removed to the new system fan cage, then align
the cage with the standoffs in the chassis.
