Replacing the system board 63

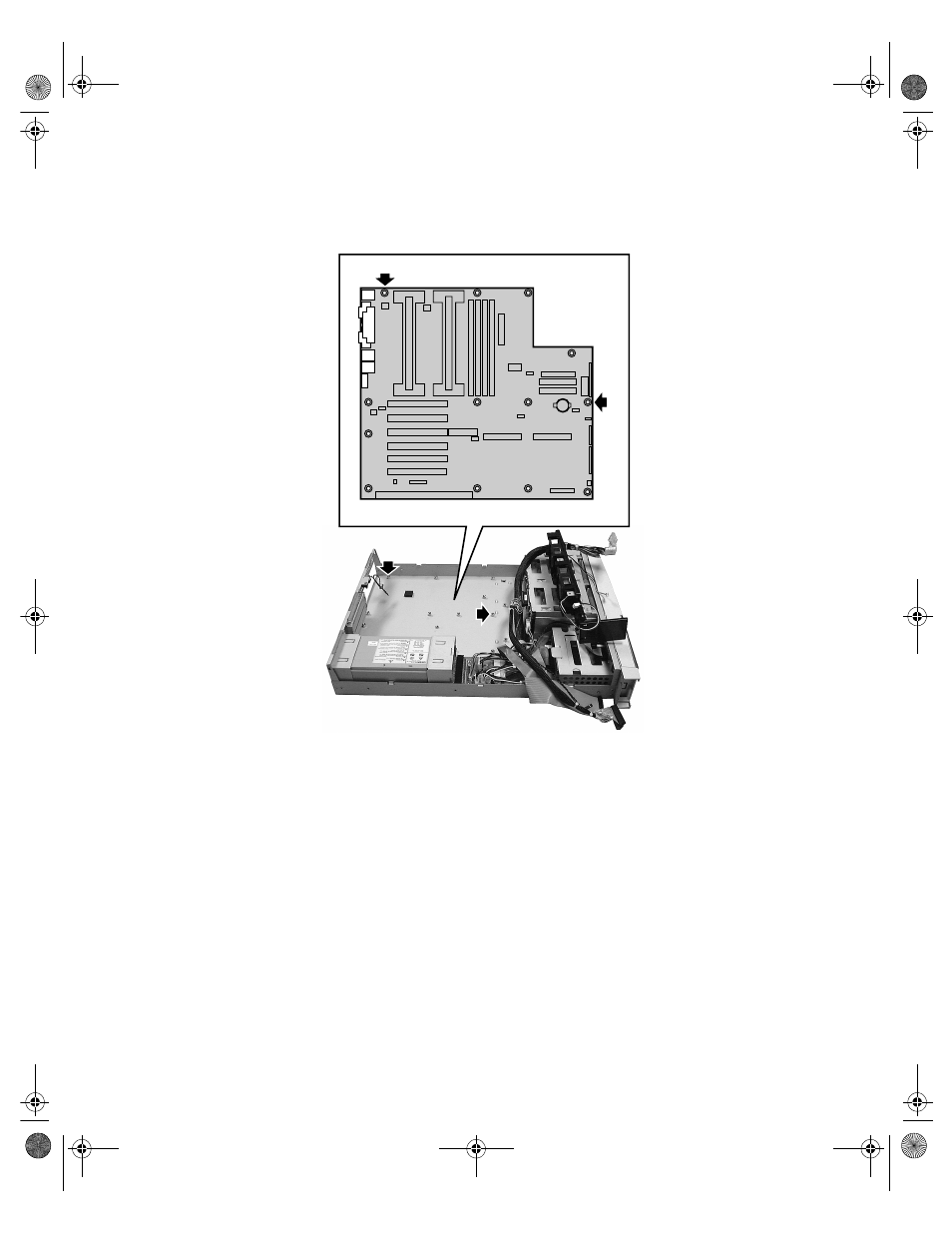

10 Place the new system board in the chassis. Make sure the two standoffs
with shoulders fit into the matching holes in the system board.
11 Replace the eleven screws you removed in Step 8.
12 Install the DIMM(s) and processor(s) in the new system board. (See
“Replacing memory” on page 33 and “Replacing a processor” on
page 37.)
13 Replace the fan assembly using the three screws you removed in Step 6.
14 Reconnect the system cables to the appropriate connectors on the system
board. See “System board” on page 6 for reference.
15 Replace the riser card using the two screws you removed in Step 4. Make
sure you seat the riser card securely into the proper connector on the
system board.
