Hot-plug backplane – Gateway 7250R User Manual
Page 15
8
System Features

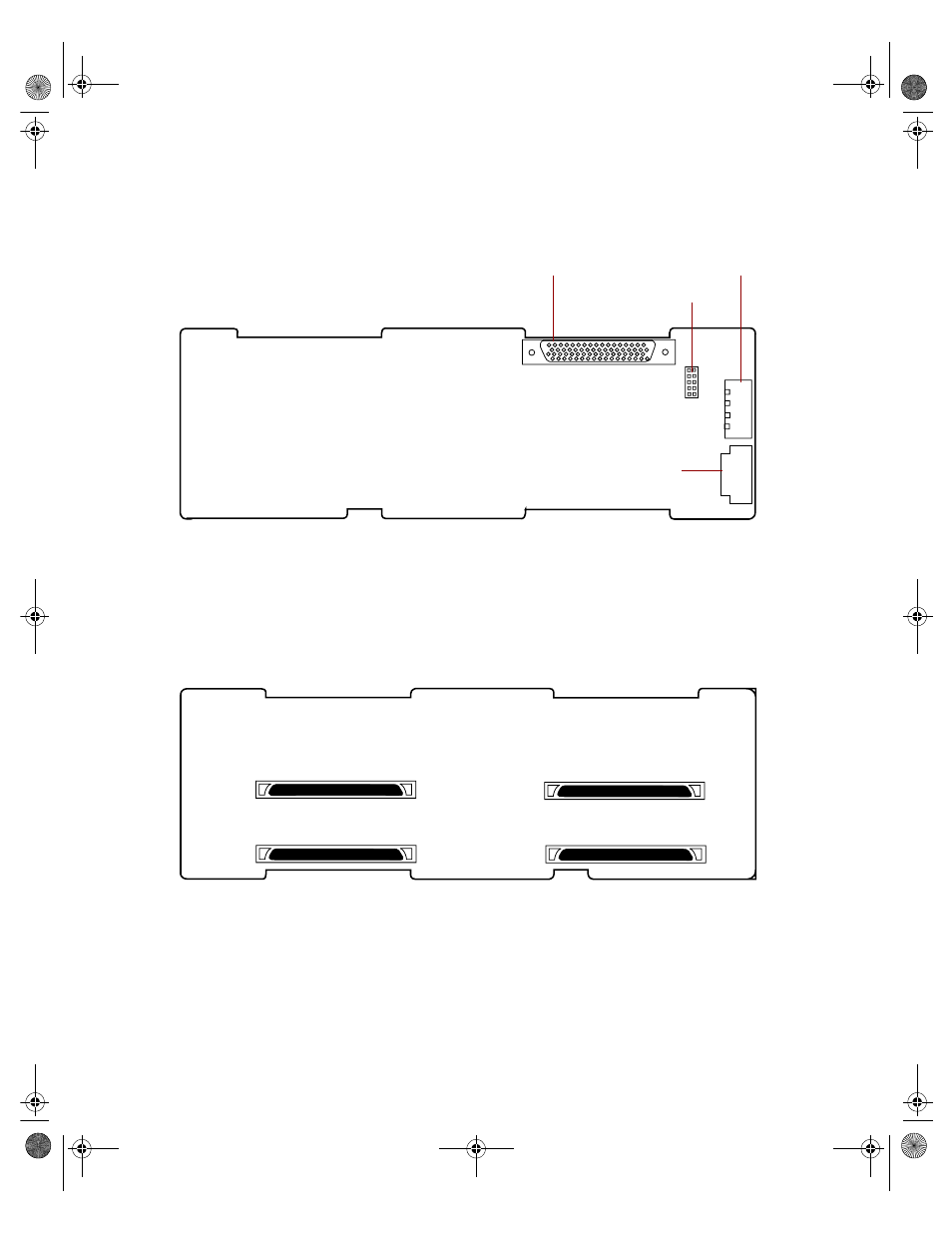

Hot-plug backplane
SCSI connector connects the SCSI cable from the RAID controller.
Power connector connects the power cable from the power supply.
Front panel connector carries signals from the backplane to the front panel.
SCA SCSI drive connectors (4) connect the four SCA SCSI drives. Install drives
in increasing order of SCSI ID.
Front panel connector
Power connector
SCSI connector
Jumper block
Back of the hot-plug backplane board
Front of the hot-plug backplane board
SCSI ID 1
SCSI ID 0
SCSI ID 3
SCSI ID 2
8506162.book Page 8 Wednesday, May 10, 2000 10:21 AM
