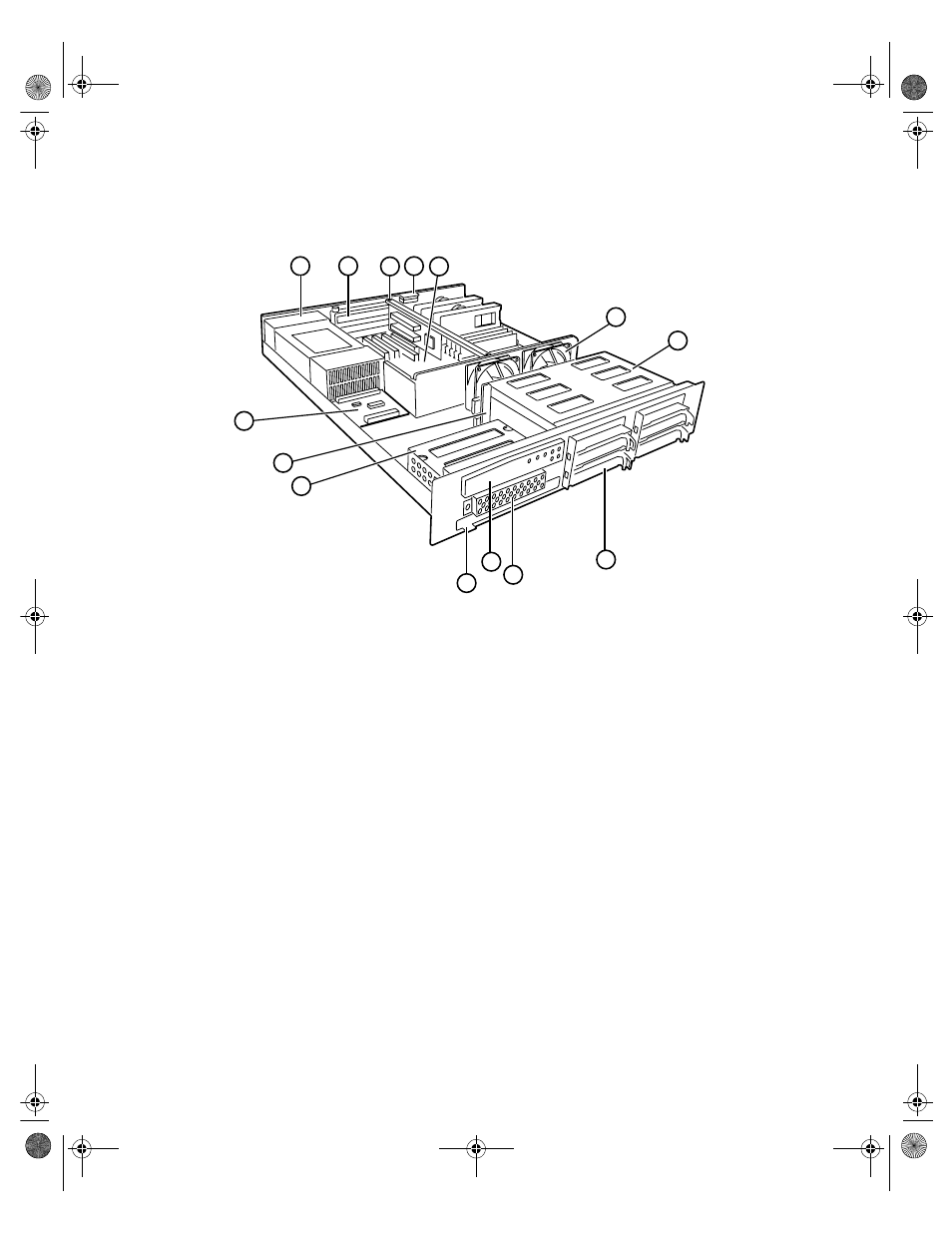

Interior of system
A
Power supply provides power to the system components.
B
Expansion slot covers cover the spaces where you can install as
many as two PCI expansion cards.
C
Riser card supports as many as two PCI expansion cards.
D
Intrusion switch logs a flag when the cover is removed to help
prevent unauthorized access to the chassis.
E
System board see “System board” on page 6.
F
Fan assembly fans provide cooling for the system.
G
Hot-plug bays support up to four 1-inch high 3.25-inch SCA SCSI
hard drives. Empty drive bays contain empty carriers to control
airflow and EMC characteristics.
H
Hot-plug drives plug into the hot-plug drive bays.
I
Diskette drive bay supports the legacy 3.5-inch diskette drive.
A
B
C
D
E
H
F
G
I
J
K
L
M
N
