Gateway 7450R - Manual (Page 66)

58 Gateway 7450R Server System Manual
3 Remove all expansion cards from the system. See “Replacing an
expansion card” on page 43.

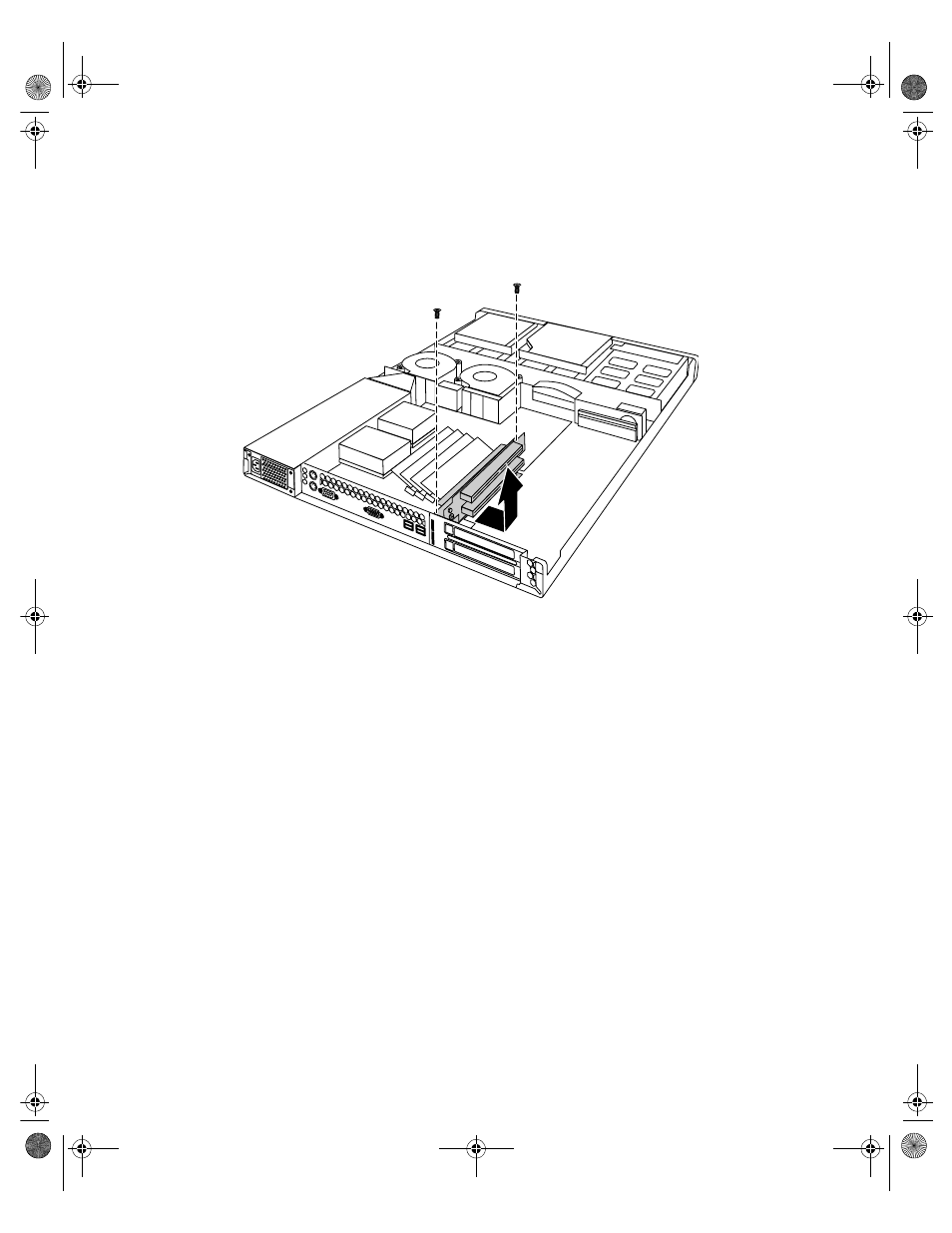

4 Remove the two screws that secure the riser card assembly to the chassis.
5 Disconnect the riser card from the edge connector on the system board,
then lift the riser card assembly out of the chassis.
6 Disconnect all cables from the system board. Note the locations and
orientations of the cables as you remove them.
7 Remove any processors and DIMMs that you will install in the new
system board. See “Replacing memory” on page 32, “Replacing the
primary processor” on page 34, and “Replacing the secondary processor”
on page 36.
8507328.book Page 58 Thursday, February 15, 2001 11:28 AM
