System Features 5

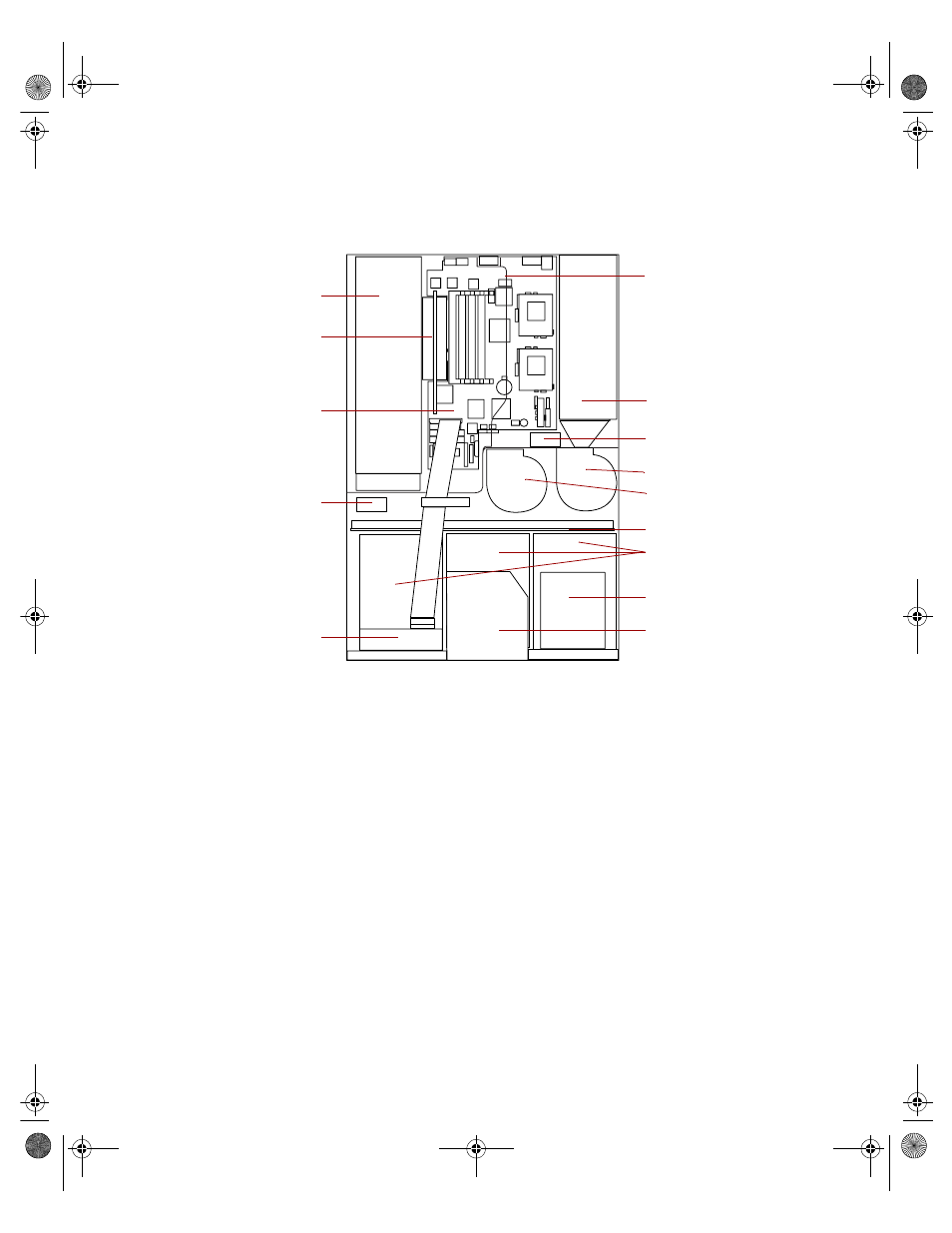

Interior of system
Expansion cards you can install as many as two full-length PCI expansion
cards.
Riser card supports as many as two full-length PCI expansion cards.
System board see “System board” on page 6.
Fans provide cooling for the system.
Control panel board contains the indicator LEDs and the buttons to control
the server. See “Control panel board” on page 9.
Air baffle controls the internal airflow to make sure the thermally sensitive
internal components receive adequate cooling.
Power supply provides power to the system components.
Blowers provide cooling for the system.
Hot-plug backplane provides the control for the hot-plug drives.
Expansion cards
Riser card
System board
Fan 1
Control panel board
Power supply
Fan 2
Blower 2
Hot-plug backplane
Hot-plug drive bays
Diskette drive
CD drive (optional)
Blower 1
Air baffle
