25

reinstalling the operator Housing

Check to make sure the safety edges, photoelectric beams, warning signs, and pedestrian gate (if necessary) are

installed (see pages 5-6) before fastening the housing to the operator.

The installation is complete. Test the operator, accessories, and safety devices for correct function. Read and

fill out the INSTALLATION CHECKLIST on the back cover of this manual.

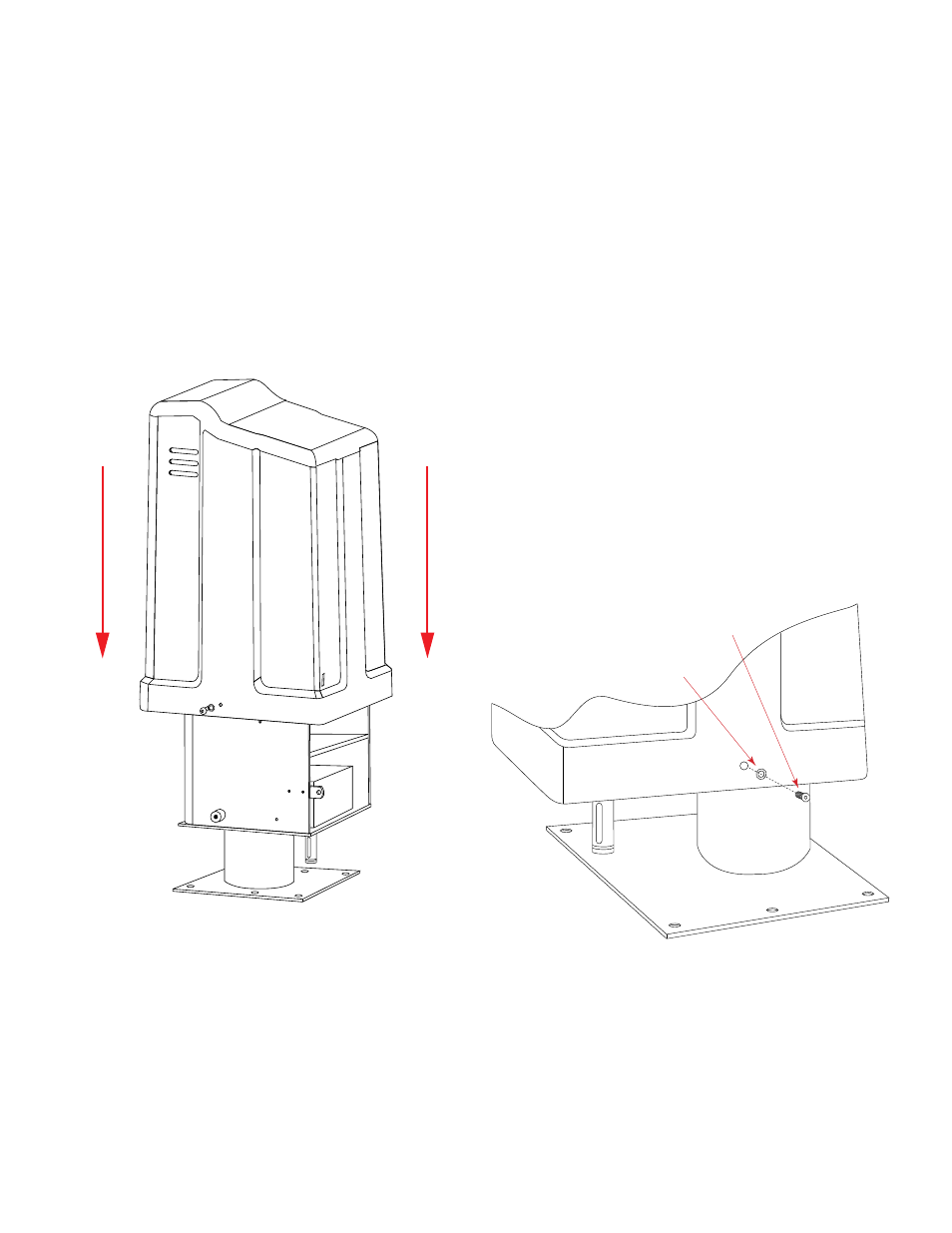

1.

Lower the operator housing into

position over the operator.

Allen Bolts

with 5mm key

Washers

2.

Pull sides out slightly so that the

housing sits into place properly over the base.

3.

Fasten the housing to the operator with

(2) Washers and (2) Allen Bolts.
