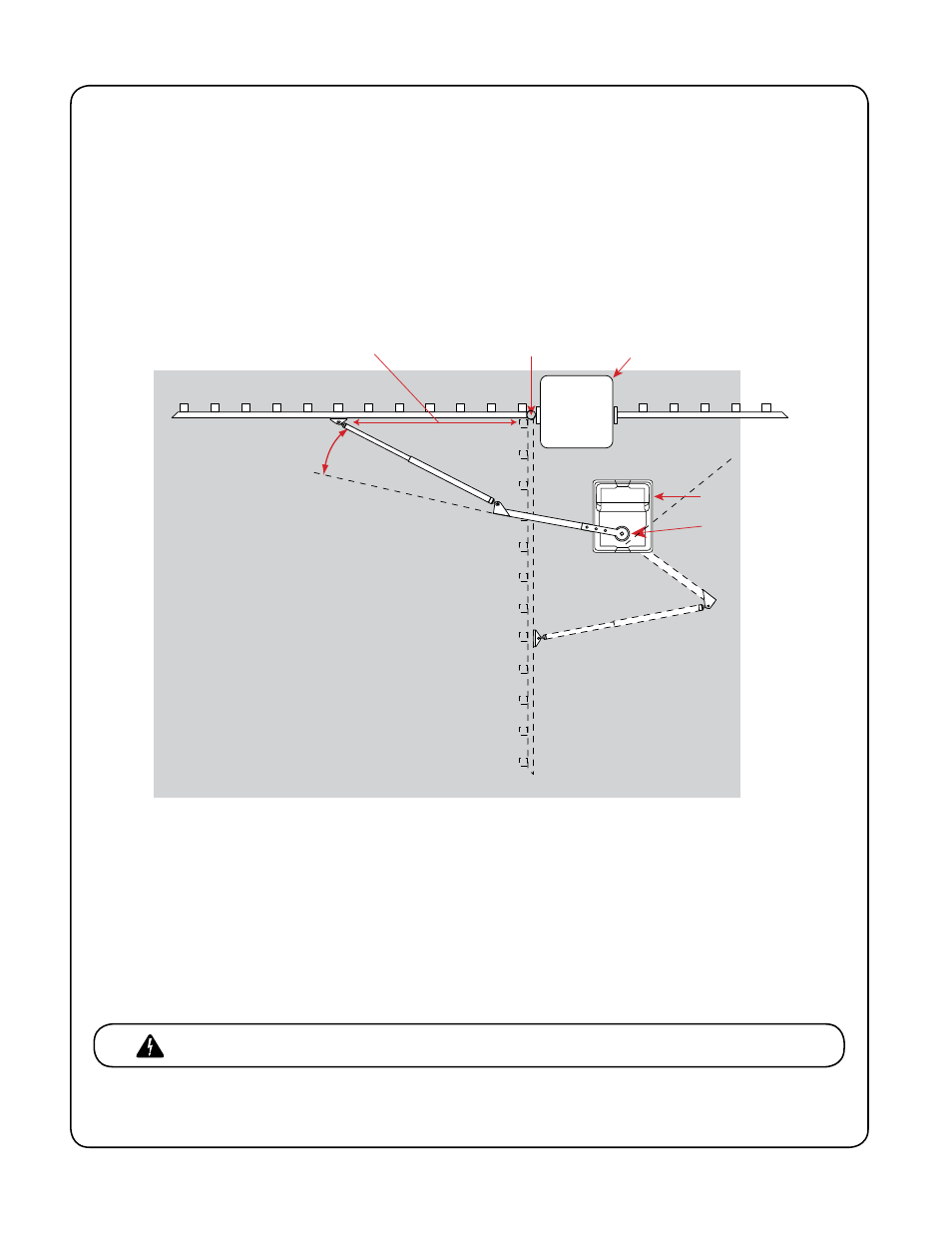

IMPORTANT: Be sure the operator housing

will not be hit by a fully open gate and that

the gate column will not interfere when

housing is installed.

2 ft. square area

Center point

of gate hinge

Closed Gate

Opened Gate

Round

Column

Housing

Pivot point

of operator

Right Mounted Arm

Center point

of gate hinge

Center point of gate hinge

to center of gate bracket pin

(approximately) 50”

Closed Gate

Opened Gate

5°-10°

Column

Pivot point

of operator

CAUTION:

DO NOT STAND

IN THIS AREA

Range of

Arm Movement

160°-175°

Housing

gate arm connection overview

NOTE: All work on operator requires disconnecting AC power and batteries !
