setting the limits

OPEN LIMIT SETTING:

1. Turn on operator power.

2. Press and release the

OPEN

button on the board and be prepared to press the

STOP

button

when the gate reached the desired open position/limit.

3. The

JOG

buttons can be used to bring the gate to the precise open position. The

JOG

buttons

will slowly run the gate when pressed and stop the gate when released.

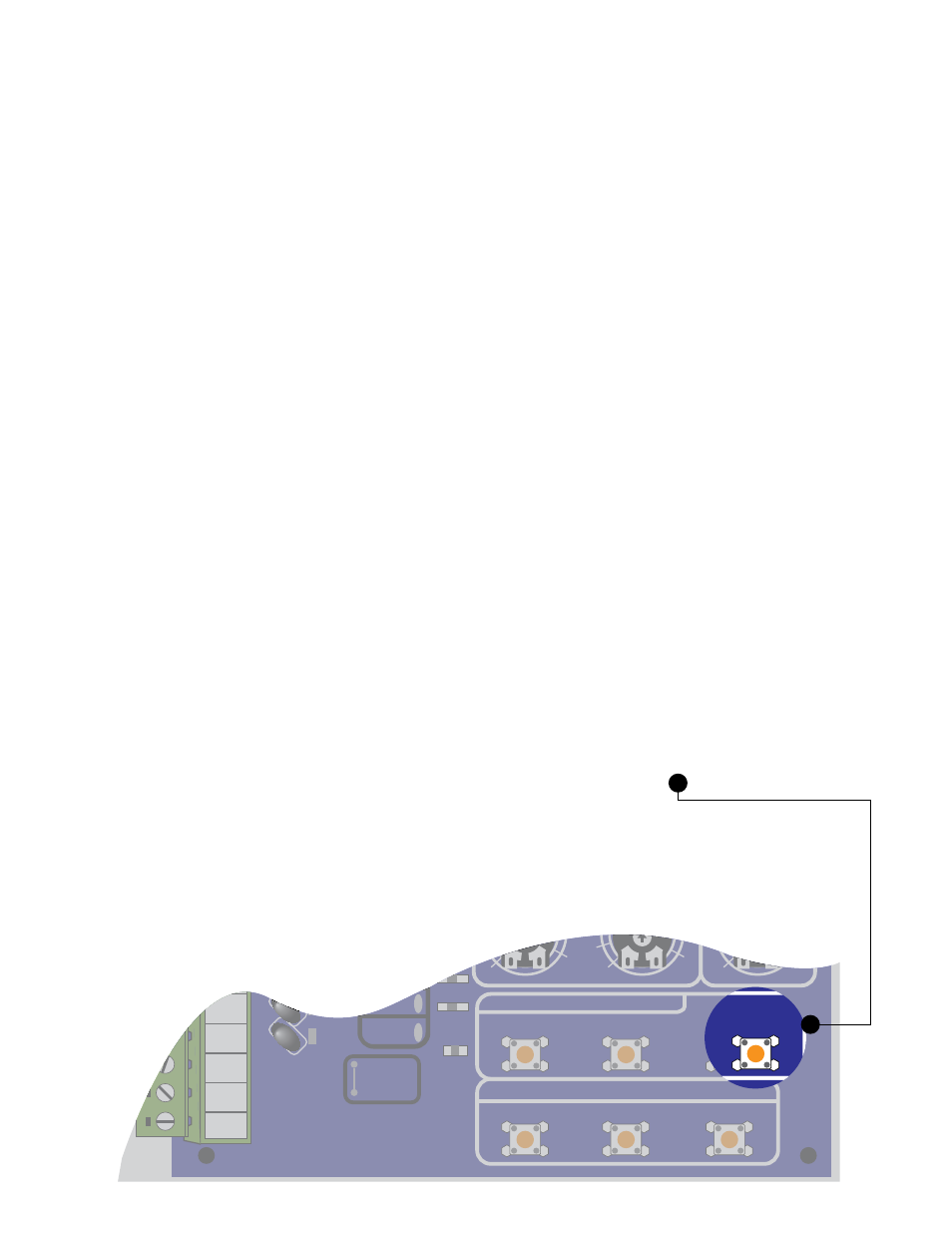

4. Once at the desired open position, press and hold the

SET LIMIT

button for 3 seconds or until

the alarm sounds and

STATUS LED

is on. At this time, release the

SET LIMIT

button.

5. Be prepared to stop the gate when it reaches the closed position.

CLOSED LIMIT SETTING:

1. If not already closed, press and release the close button.

2. Press and release the

CLOSE

button on the board and be prepared to press the

STOP

button

when the gate reached the desired closed position/limit.

3. The

JOG

buttons can be used to bring the gate to the precise closed position. The

JOG

buttons

will slowly run the gate when pressed and stop the gate when released.

4. Once at the desired closed position, press and hold the

SET LIMIT

button for 3 seconds or until

the alarm sounds and

STATUS LED

is on. At this time, release the

SET LIMIT

button.

5. Open the gate to allow it to stop on its own.

6. Open and close the gate to verify proper operations. If limits are not set

properly, redo limit setting steps above.

NOTE: If limits are too short, use jog button to move arm short distances to stop gate at

the precise open or closed position.

CAUTION: Be extremely careful not to stand in the path of the gate arm while setting limits.
