removing the operator Housing

Before you can gain access to the operator frame and its mounting holes, the housing will have to be

removed from the operator.

1. Remove the (2) 3/8” allen bolts and (2) m8 washers from the operator housing (this hardware is

located on each side of the housing).

2. Lift the housing off the operator and set it aside.

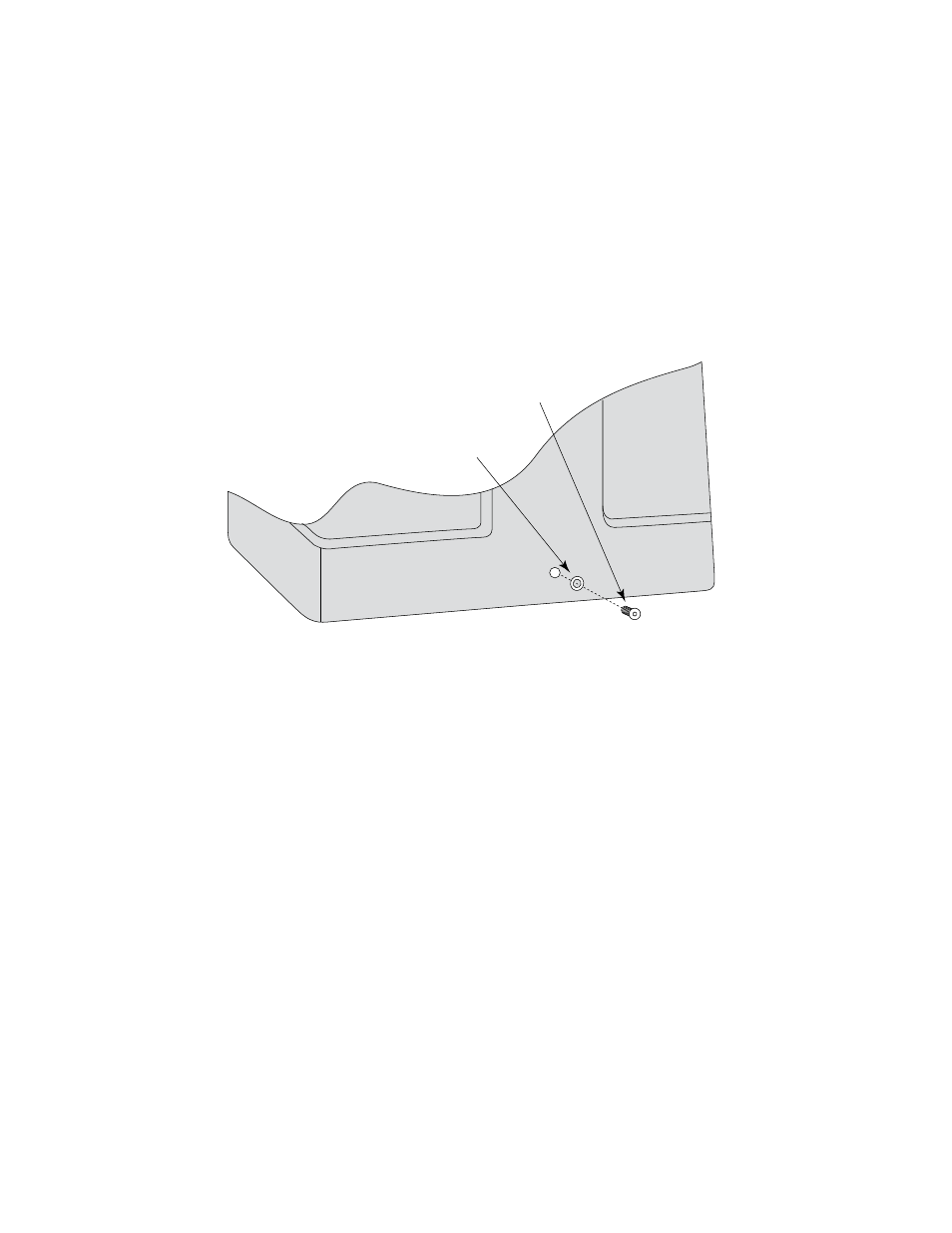

Allen Bolts

with 5mm key

Washers

Mounting the operator

1. Lift the operator and align its mounting holes over the 3/8” diameter concrete mounting anchors.

2. Lower the operator into position and fasten it to the mounting anchors with (4) 3/8” washers and

nuts (not provided).
